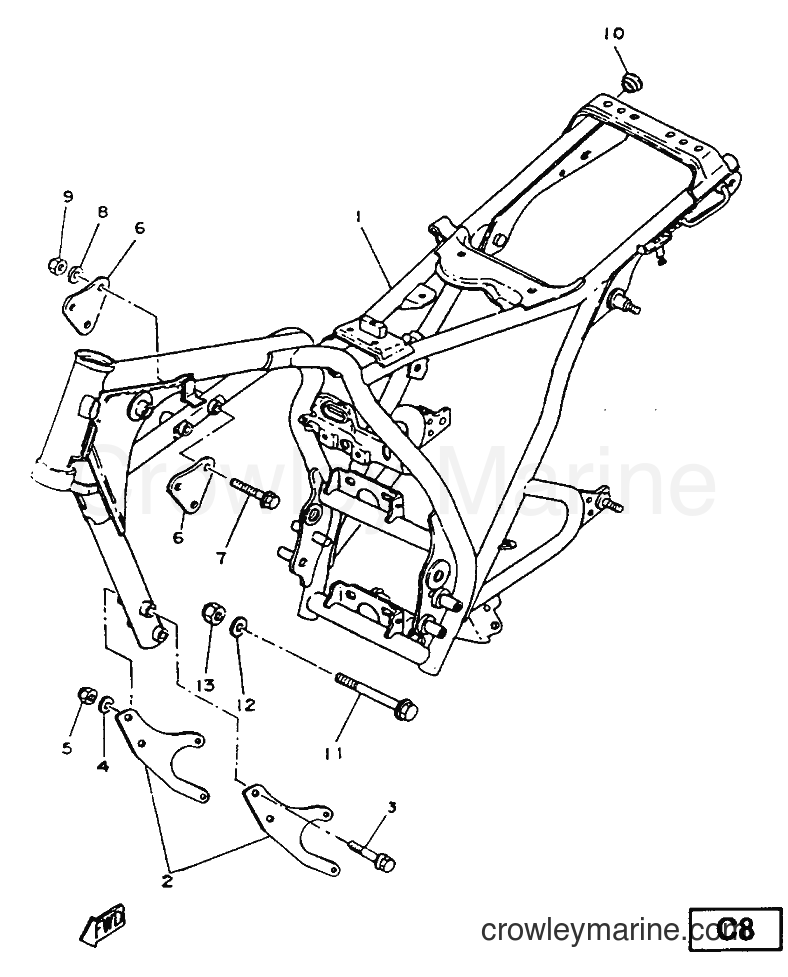

1988 Street Bike SR125 - SR125 (2JW) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR125 (2JW) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.2JW-F1110-00-33
Required: 1
FRAME COMP.
Price unavailable
STAY, ENGINE 2
2
Yamaha Motors
STAY, ENGINE 22JW-F1316-00
Required: 2
STAY, ENGINE 2
Price unavailable
-10%
Flange Bolt
3
Yamaha Motors
Flange Bolt95817-08070-00
Required: 4
BOLT, FLANGE
Supersedes: 95811-08070-00
Cross Ship
Leaves in 2-5 days
$4.90
$4.41
You save $0.49
More details
-10%
Plate Washer
4
Yamaha Motors
Plate Washer90201-094G1-00
Required: 4
WASHER, PLATE
Supersedes: 90201-08366-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
NUT, SELF-LOCKING
5
Yamaha Motors
NUT, SELF-LOCKING90185-08816
Required: 4
NUT, SELF-LOCKING
Price unavailable
STAY, ENGINE 1
6
Yamaha Motors
STAY, ENGINE 12JW-F1315-00
Required: 2
STAY, ENGINE 1
Price unavailable
-10%
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-08055-00
Required: 3
BOLT, FLANGE
Supersedes: 95811-08055-00
Cross Ship
Leaves in 2-5 days
$4.21
$3.79
You save $0.42
More details
-10%
Plate Washer
8
Yamaha Motors
Plate Washer90201-094G1-00
Required: 3
WASHER, PLATE
Supersedes: 90201-08366-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
NUT, SELF-LOCKING
9
Yamaha Motors
NUT, SELF-LOCKING90185-08816
Required: 3
NUT, SELF-LOCKING
Price unavailable
GROMMET
10
Yamaha Motors
GROMMET90480-18807
Required: 2
GROMMET
Price unavailable
-10%
Flange Bolt
11
Yamaha Motors
Flange Bolt95817-08115-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-08115-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
12
Yamaha Motors
Plate Washer90201-094G1-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08366-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
NUT, SELF-LOCKING
13
Yamaha Motors
NUT, SELF-LOCKING90185-08816
Required: 2
NUT, SELF-LOCKING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
