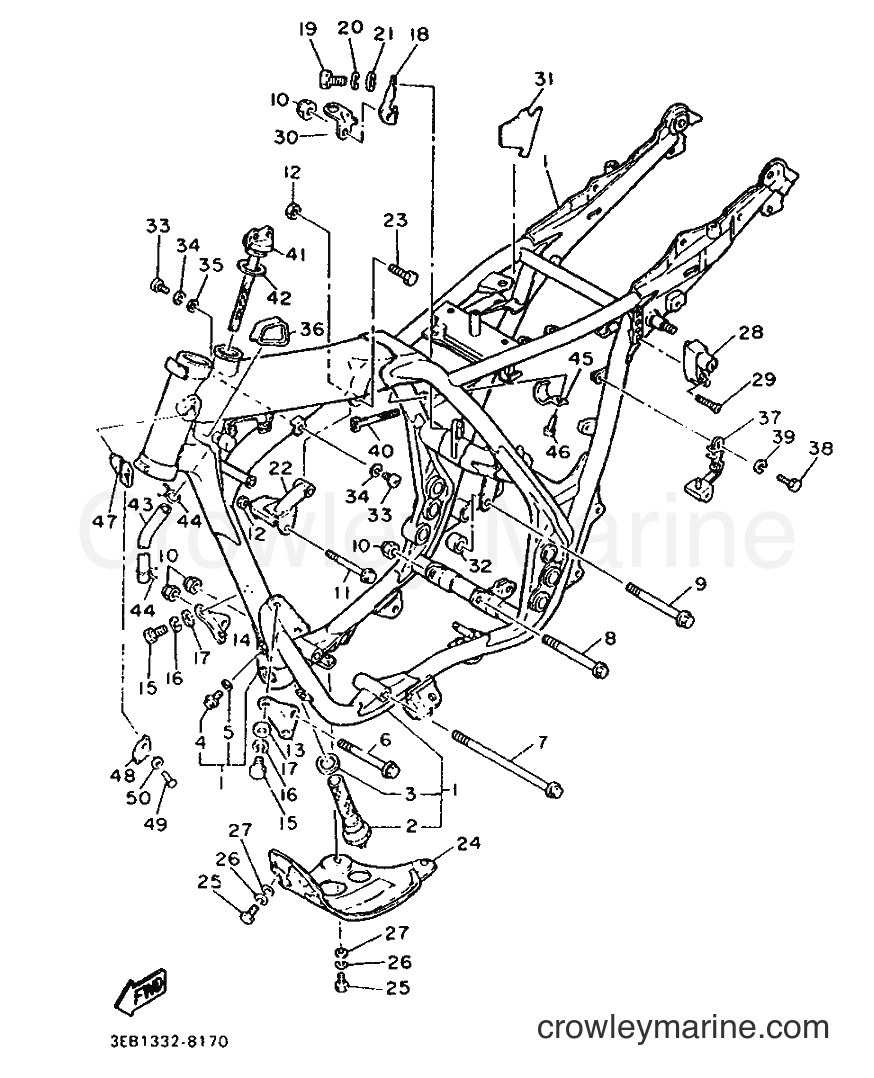

1988 Street Bike SR500 - SR500 (3EB1) [999] FRAME diagram
![Yamaha Motors SR500 (3EB1) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/Kw5byMxr.png)
1
Yamaha Motors
FRAME COMP.48U-21110-00-33
Required: 1
FRAME COMP.
Price unavailable
-10%
2
Yamaha Motors
Filter Net583-21756-00-00
Required: 1
. NET, FILTER
$70.19
You save $7.80
-10%
$9.44
You save $1.05
-50%
4
Yamaha Motors
Flange Bolt95817-08012-00
Required: 1
. BOLT HEXAGON
Supersedes: 95806-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
-10%
$6.74
You save $0.75
6
Yamaha Motors
Washer Based Bolt90105-10747-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-10039-00
$5.80
-10%
7
Yamaha Motors
Washer Based Bolt90105-10780-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-10113-00
$10.34
You save $1.15
-10%
$14.84
You save $1.65
-10%
9
Yamaha Motors
Washer Based Bolt90109-101A0-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-10119-00
$16.64
You save $1.85
-10%
10
Yamaha Motors
Self-Locking Nut90185-10060-00
Required: 4
NUT, SELF-LOCKING
$7.64
You save $0.85
-10%
$5.84
You save $0.65
-10%
12
Yamaha Motors
Self-Locking Nut90185-08089-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08054-00
$9.44
You save $1.05
-10%
13
Yamaha Motors
ENGINE STAY 22J2-21315-00-33
Required: 1
STAY, ENGINE FRONT (L.H)
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
14
Yamaha Motors
Engine Stay2J2-21316-00-33
Required: 1
STAY, ENGINE FRONT (R.H)
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$4.37
You save $0.49
-15%
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
-15%
17
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
18
Yamaha Motors
ENGINE STAY2J2-21317-01-00
Required: 1
STAY, ENGINE REAR
$8.54
You save $0.95
-20%
In stock
Only 4 remaining
$7.59
You save $1.90
-15%
20
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
-15%
21
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
22
Yamaha Motors
ENGINE STAY 52J2-21318-01-00
Required: 1
STAY, ENGINE 4
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
No longer availableSearch Nationwide Inventory
$2.09
-10%
24
Yamaha Motors
Engine Protector3GW-21471-00-33
Required: 1
PROTECTOR, ENGINE
Supersedes: 3X4-21471-00-90
$48.59
You save $5.40
-15%
In stock
Only 5 remaining
$2.35
You save $0.41
-15%
26
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
27
Yamaha Motors
Plate Washer90201-063J2-00
Required: 3
WASHER, PLATE
$5.84
You save $0.65
-10%
28
Yamaha Motors
Helmet Hanger Assembly26H-21308-01-00
Required: 1
HELMET HANGER ASSY
Supersedes: 26H-21308-00-00
$80.99
You save $9.00
-10%
29
Yamaha Motors
SPECIAL SHAPE SCREW90149-06150-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90151-06038-00
$4.19
You save $0.46
-10%
30
Yamaha Motors
Stop Switch Stay2J2-2144G-00-00
Required: 1
STAY, STOP SWITCH
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$2.75
You save $0.30
-10%
32
Yamaha Motors
Spacer2J2-21459-01-00
Required: 1
COLLAR, REAR ENGINE STAY
$10.34
You save $1.15
-10%
33
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-15%
34
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-50%
35
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER, PLAIN
In stock
Only 1 remaining
$2.75
You save $2.75
36
Yamaha Motors
COVER 248U-2117M-00
Required: 1
COVER 2
Price unavailable
37
Yamaha Motors
BRACKET, BATTERY BOX 348U-21395-00
Required: 1
BRACKET, BATTERY BOX 3
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-50%
39
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
41
Yamaha Motors
Cap Body2J2-21771-10-00
Required: 1
BODY, CAP
Supersedes: 2J2-21771-02-00
$14.84
You save $1.65
-10%
$8.54
You save $0.95
-10%
43
Yamaha Motors
Hose90445-11289-00
Required: 1
HOSE (L200)
$10.34
You save $1.15
-10%
44
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-10%
45
Yamaha Motors
CLAMP,WIRE HRNES 12J2-21335-00-00
Required: 1
CLAMP, WIRE HARNESS 1
No longer availableSearch Nationwide Inventory
$1.06
You save $0.12
-15%
46
Yamaha Motors
Tapping Screw97780-50610-00
Required: 1
SCREW, PANHEAD TAPPING
Supersedes: 97701-50110-00
In stock
Only 4 remaining
$8.07
You save $1.42
48
Yamaha Motors
CAP, HANDLE LOCK164-23484-10
Required: 1
CAP, HANDLE LOCK
Price unavailable
-10%
$9.44
You save $1.05
-10%
50
Yamaha Motors
Conical Spring Washer90208-04029-00
Required: 1
WASHER, CONICAL SPRING
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
