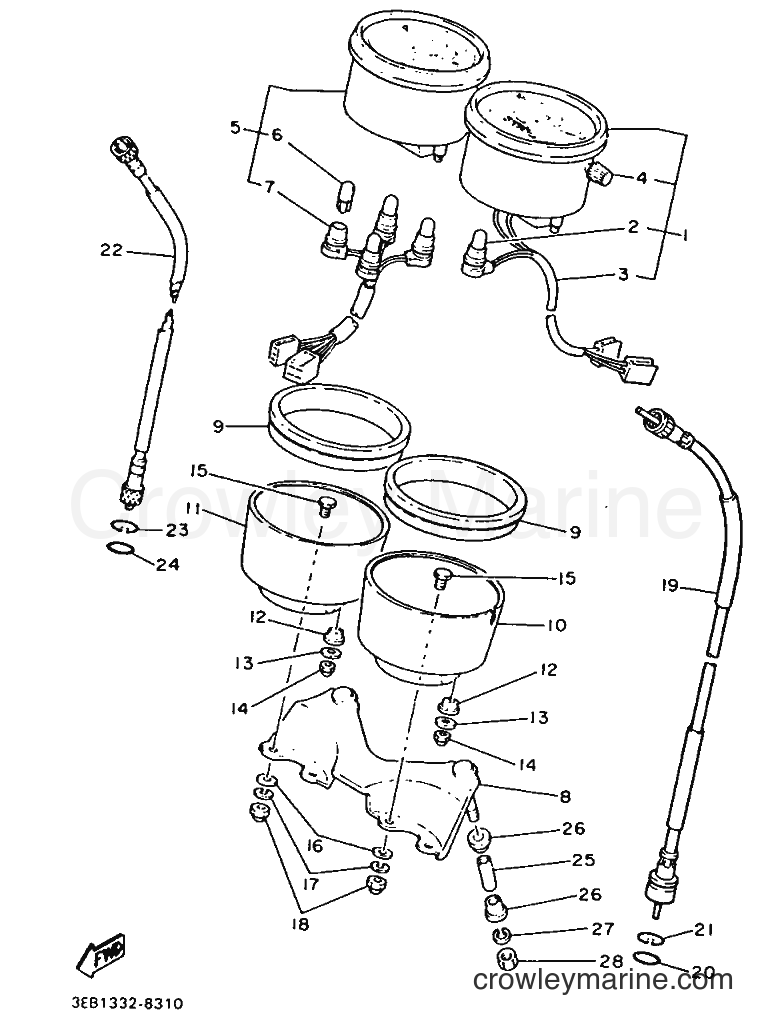

1988 Street Bike SR500 - SR500 (3EB1) [999] METER diagram
![Yamaha Motors SR500 (3EB1) [999] - METER](https://cdn.crowleymarine.com/yamaha/6BMEqvza.png)
1
Yamaha Motors
SPEEDOMETER ASSY2J3-83570-F1
Required: 1
SPEEDOMETER ASSY
Price unavailable
-10%
2
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
. BULB (12V-3.4W T-10)
$5.39
You save $0.60
3
Yamaha Motors
. SOCKET, METER3H1-83536-01
Required: 1
. SOCKET, METER
Price unavailable
-10%
4
Yamaha Motors
TRIP METER KNOB4SV-83578-00-00
Required: 1
. KNOB, TRIP METER
Supersedes: 584-83578-71-00
$17.99
You save $2.00
-10%
5
Yamaha Motors
TACHOMETER ASSEMBLY2J3-83540-F1-00
Required: 1
TACHOMETER ASSY
No longer availableSearch Nationwide Inventory
$446.39
You save $49.60
-10%
6
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 4
. BULB (12V-3.4W T-10)
$5.39
You save $0.60
7
Yamaha Motors
. SOCKET CORD ASSY3H1-83520-01
Required: 1
. SOCKET CORD ASSY
Price unavailable
-10%
8
Yamaha Motors
Meter Bracket2J2-83519-00-00
Required: 1
BRACKET, METER
No longer availableSearch Nationwide Inventory
$53.09
You save $5.90
-10%
$44.09
You save $4.90
-10%
10
Yamaha Motors
Speedometer Cover2J2-83507-00-00
Required: 1
CASE COMP, UNDER
$54.89
You save $6.10
-10%
11
Yamaha Motors
Tachometer Cover2J2-83508-00-00
Required: 1
COVER, TACHOMETER
$50.39
You save $5.60
-10%
$9.89
You save $1.10
-10%
13
Yamaha Motors
Plate Washer90201-05725-00
Required: 4
WASHER, PLATE
Supersedes: 90201-05031-00
$9.44
You save $1.05
-10%
14
Yamaha Motors
Nut (Crown)95303-05800-00
Required: 4
NUT, CROWN
Supersedes: 95301-05800-00
No longer availableSearch Nationwide Inventory
$1.17
You save $0.13
-10%
$5.39
You save $0.60
-15%
16
Yamaha Motors
Plain Washer92990-06200-00
Required: 4
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-15%
17
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
18
Yamaha Motors
Nut95380-06800-00
Required: 4
NUT, CROWN
Supersedes: 95301-06800-00
$8.54
You save $0.95
-10%
19
Yamaha Motors
SPEEDOMETER CABLE ASSEMBLY1JN-83550-02-00
Required: 1
SPEEDOMETER CABLE ASSY
Supersedes: 1JN-83550-01-00
$41.39
You save $4.60
-50%
20
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
In stock
Only 5 remaining
$4.00
You save $4.00
-10%
$7.64
You save $0.85
-10%
22
Yamaha Motors
TACHOMETER CABLE2J2-83560-10-00
Required: 1
TACHOMETER CABLE ASSY
Supersedes: 2J2-83560-00-00
$19.79
You save $2.20
-10%
$7.64
You save $0.85
-50%
24
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
In stock
Only 5 remaining
$4.00
You save $4.00
-10%
$4.94
You save $0.55
-10%
26
Yamaha Motors
DAMPER 21JK-83541-00-00
Required: 4
DAMPER
Supersedes: 2J2-83541-00-00
$7.64
You save $0.85
-15%
27
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
In stock
5+ in stock
$4.17
You save $0.74
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
