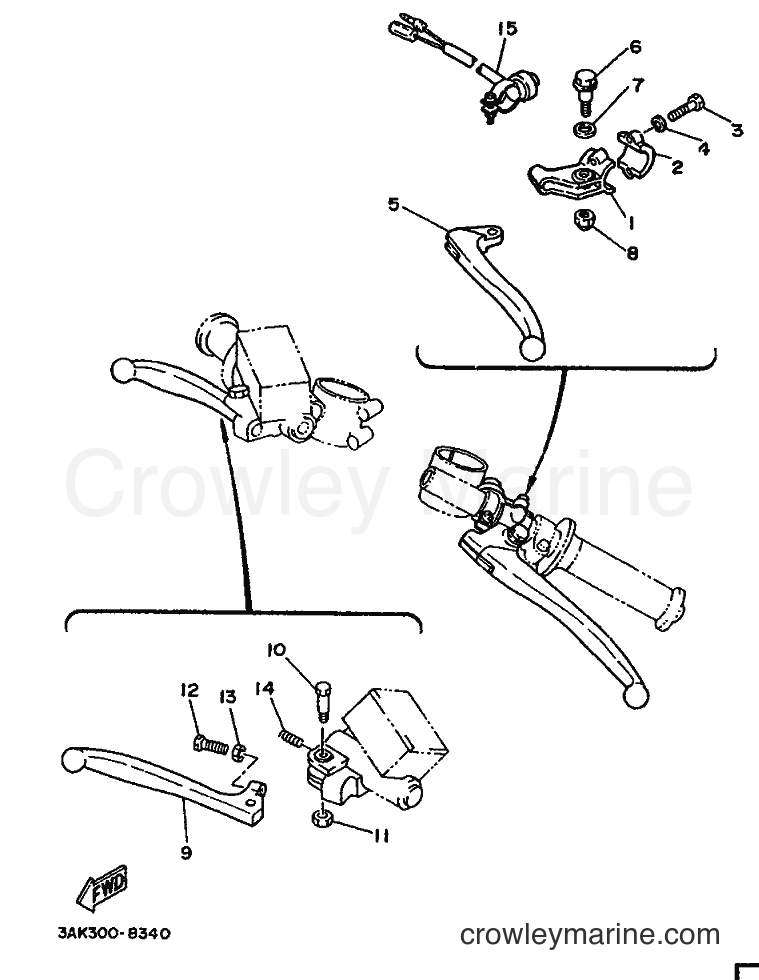

1988 Street Bike TZ250 - TZ250 (3AK1) [999] HANDLE SWITCH & LEVER diagram
![Yamaha Motors TZ250 (3AK1) [999] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/qdneIKok.png)
-10%
1
Yamaha Motors
Lever Holder5F6-82911-00-00
Required: 1
HOLDER, LEVER 1
No longer availableSearch Nationwide Inventory
$32.39
You save $3.60
-10%
2
Yamaha Motors
LOWER LEVER HOLDER4V4-82913-00-00
Required: 1
HOLDER, LEVER LOWER 1
$28.79
You save $3.20
-10%
No longer availableSearch Nationwide Inventory
$1.08
You save $0.12
-10%
4
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-05100-00
$8.54
You save $0.95
-10%
$23.39
You save $2.60
-10%
6
Yamaha Motors
BOLT (3GB)90109-061F3-00
Required: 1
BOLT
Supersedes: 90109-06797-00
$7.64
You save $0.85
-10%
7
Yamaha Motors
Plate Washer90201-08083-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
8
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95601-06100-00
$3.60
-10%
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
10
Yamaha Motors
BOLT90109-06577-00
Required: 1
SCREW, LEVER FITTING
Supersedes: 341-83925-00-00
$5.84
You save $0.65
-15%
11
Yamaha Motors
Nut95380-06700-00
Required: 1
NUT
Supersedes: 95303-06700-00
In stock
5+ in stock
$8.07
You save $1.42
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
14
Yamaha Motors
Compression Spring90501-10312-00
Required: 1
SPRING, COMPRESSION
$8.54
You save $0.95
-10%
15
Yamaha Motors
Handle Switch3LC-83976-00-00
Required: 1
SWITCH, HANDLE 1
Supersedes: 4A0-83976-00-00
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
