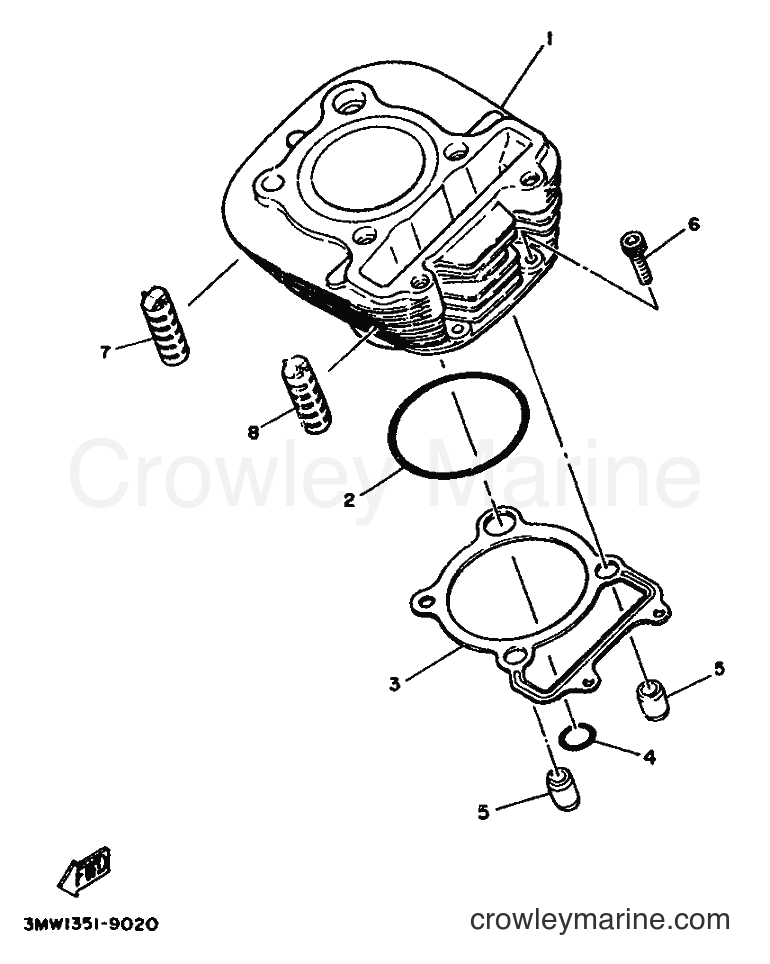

1989 Street Bike SR125 - SR125 (3MW2) [99A] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR125 (3MW2) [99A] - CYLINDER
Change View:
-10%
O-Ring
2
Yamaha Motors
O-Ring93210-63489-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Cylinder Gasket
3
Yamaha Motors
Cylinder Gasket4DD-11351-00-00
Required: 1
GASKET, CYLINDER
Supersedes: 5N0-11351-00-00
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
-10%
O-Ring
4
Yamaha Motors
O-Ring93210-13361-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Absorber
7
Yamaha Motors
Absorber5H0-11161-00-00
Required: 2
ABSORBER 1
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Absorber
8
Yamaha Motors
Absorber5H0-11161-00-00
Required: 2
ABSORBER 1
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
