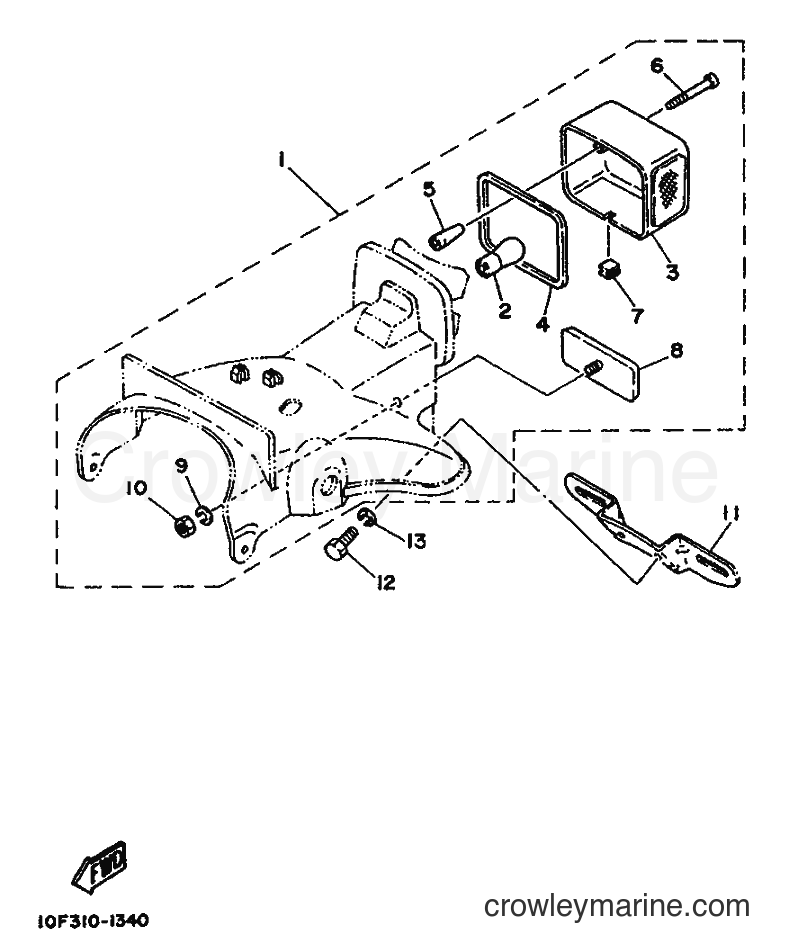

1989 Street Bike SR125 - SR125 (3MW2) [99A] FEU ARRIERE diagram
![Yamaha Motors SR125 (3MW2) [99A] - FEU ARRIERE](https://cdn.crowleymarine.com/yamaha/HAhOg1Ct.png)
1
Yamaha Motors
TAILLIGHT ASSY10F-84700-21-P0
Required: 1
TAILLIGHT ASSY
Price unavailable
1
Yamaha Motors
TAILLIGHT ASSY10F-84700-21-97
Required: 1
TAILLIGHT ASSY
Price unavailable
-50%
2
Yamaha Motors
Bulb1A2-84714-50-00
Required: 1
. BULB (12V-21/5W)
Supersedes: 31L-84714-00-00
In stock
Only 3 remaining
$7.74
You save $7.74
-10%
3
Yamaha Motors
TAIL LIGHT LENS1M1-84521-60-00
Required: 1
. LENS, TAILLIGHT
Supersedes: 1M8-84521-40-00
$39.59
You save $4.40
-10%
4
Yamaha Motors
4MN-14452-00-003TJ-84723-00-00
Required: 1
. GASKET, LENS
Supersedes: 3Y1-84545-00-00
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$0.89
You save $0.10
-10%
6
Yamaha Motors
LENS FITTING SCREW3Y1-84524-00-00
Required: 2
. SCREW, LENS FITTING
No longer availableSearch Nationwide Inventory
$3.38
You save $0.38
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
8
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
. REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-01-00
$17.09
You save $1.90
-15%
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
. WASHER, SPRING
$0.30
You save $0.05
-15%
10
Yamaha Motors
Nut95380-05600-00
Required: 1
. NUT
Supersedes: 95303-05600-00
In stock
5+ in stock
$8.07
You save $1.42
11
Yamaha Motors
BRACKET, LICENSE5N0-84751-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-50%
13
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
