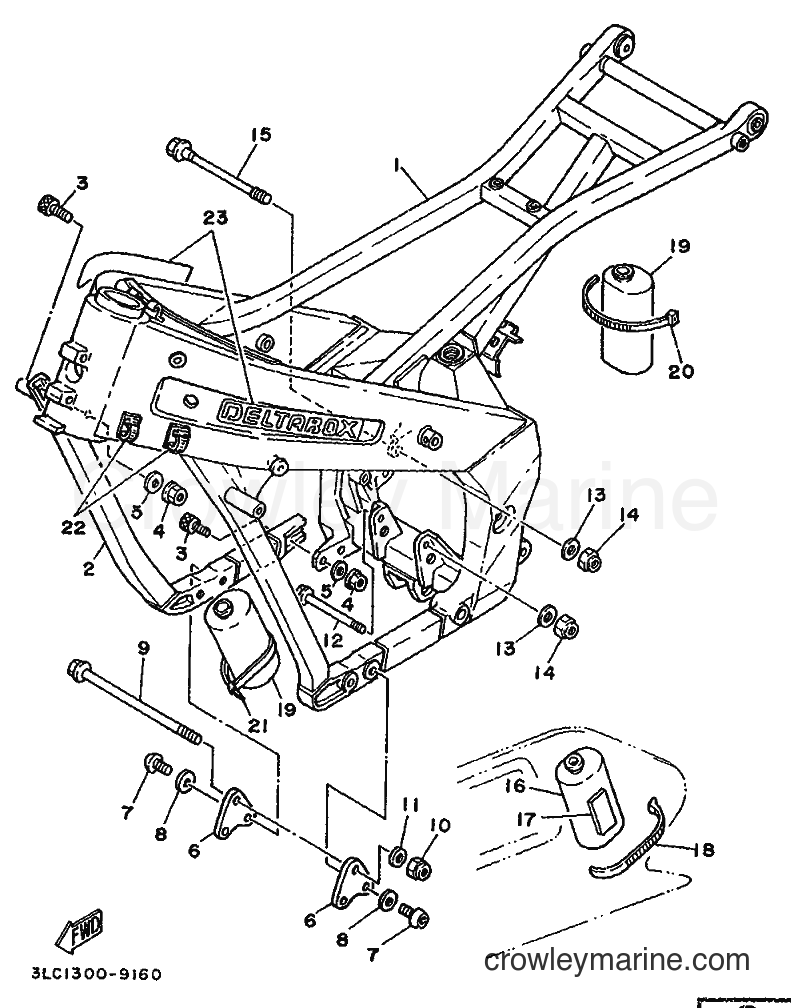

1989 Street Bike TZ250 - TZ250 (3LC1) [999] FRAME diagram
![Yamaha Motors TZ250 (3LC1) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/nuROpKYx.png)
-10%
No longer availableSearch Nationwide Inventory
$4850.09
You save $538.90
-10%
2
Yamaha Motors
TUBE,DOWN3LC-21140-00-00
Required: 1
DOWN TUBE COMP.
No longer availableSearch Nationwide Inventory
$378.89
You save $42.10
-10%
3
Yamaha Motors
Bolt (3JP)91314-08040-00
Required: 4
BOLT
Supersedes: 91311-08040-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95601-08200-00
$8.54
You save $0.95
-50%
5
Yamaha Motors
Plate Washer90201-086J0-00
Required: 4
WASHER, PLATE
In stock
Only 2 remaining
$5.25
You save $5.25
-10%
6
Yamaha Motors
Engine Bracket3AK-21411-00-00
Required: 2
BRACKET, ENGINE 1
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
7
Yamaha Motors
Button head bolt92014-08025-00
Required: 4
BOLT, BUTTON HEAD
Supersedes: 92011-08025-00
$7.64
You save $0.85
-15%
8
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
9
Yamaha Motors
Washer Based Bolt90105-10401-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
-10%
10
Yamaha Motors
NUT95614-10100-00
Required: 1
NUT, U
Supersedes: 95611-10100-00
$7.64
You save $0.85
-10%
11
Yamaha Motors
PLAIN WASHER92901-10200-00
Required: 1
WASHER, PLAIN
No longer availableSearch Nationwide Inventory
$3.65
You save $0.40
-10%
12
Yamaha Motors
Washer Based Bolt90105-08100-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$2.34
You save $0.26
-15%
13
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
15
Yamaha Motors
Washer Based Bolt90105-08364-00
Required: 1
BOLT, WASHER BASED
Supersedes: 90105-08246-00
$10.79
You save $1.20
-10%
16
Yamaha Motors
Oil Tank3YL-21751-00-00
Required: 1
TANK, OIL
Supersedes: 49V-21751-00-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
17
Yamaha Motors
DAMPER 226H-21746-00-00
Required: 1
DAMPER, LOCATING 2
Supersedes: 4J2-24182-00-00
$3.46
You save $0.38
-10%
18
Yamaha Motors
Clamp90464-15152-00
Required: 2
CLAMP
Supersedes: 90465-13154-00
$5.84
You save $0.65
-10%
19
Yamaha Motors
Oil Tank3YL-21751-00-00
Required: 2
TANK, OIL
Supersedes: 49V-21751-00-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-10%
22
Yamaha Motors
Clamp90464-13185-00
Required: 4
CLAMP
Supersedes: 90464-13087-00
$5.84
You save $0.65
23
Yamaha Motors
EMBLEM 1TRK-2118E-00
Required: 2
EMBLEM 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
