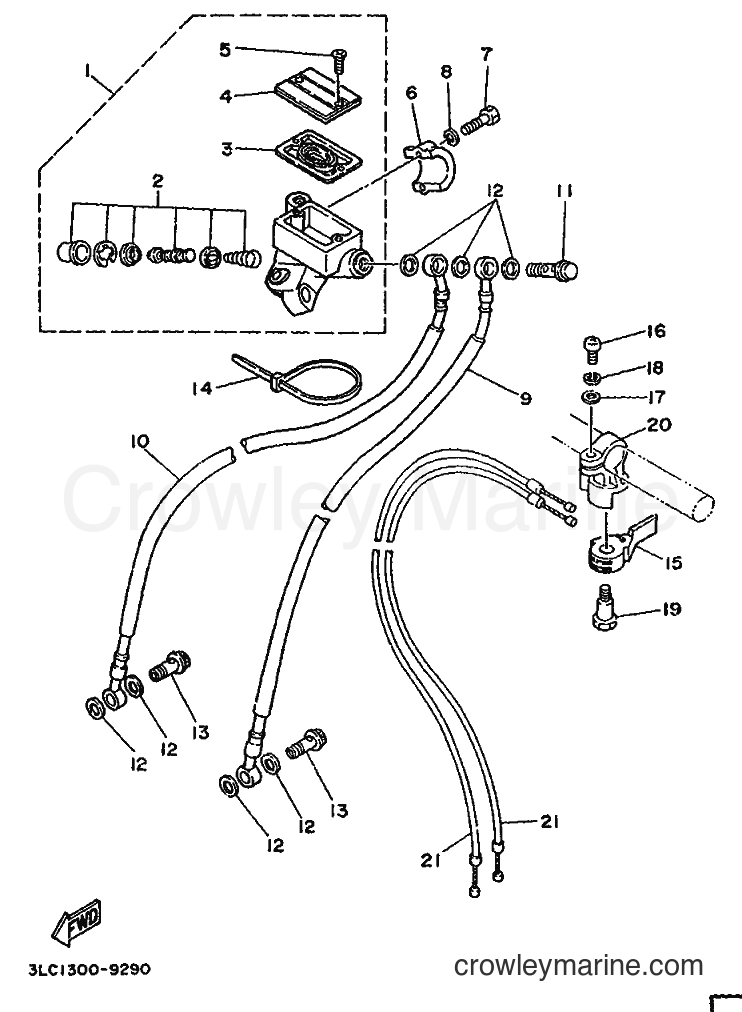

1989 Street Bike TZ250 - TZ250 (3LC1) [020] FRONT MASTER CYLINDER diagram
![Yamaha Motors TZ250 (3LC1) [020] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/VBMieMg4.png)
1
Yamaha Motors
Master Cylinder Sub Assembly3LC-25870-00-00
Required: 1
MASTER CYLINDER SUB ASSY
$127.06
-10%
2
Yamaha Motors
Master Cylinder Kit4K0-W0041-50-00
Required: 1
. CYLINDER KIT, MASTER
Supersedes: 4K0-W0041-00-00
$89.99
You save $10.00
-10%
3
Yamaha Motors
Reservoir Diaphragm4HM-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
Supersedes: 4K0-25854-00-00
$35.09
You save $3.90
-10%
4
Yamaha Motors
Reservoir Cap3GM-25852-02-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3AK-25852-00-00
$56.69
You save $6.30
-10%
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.67
You save $0.19
-10%
6
Yamaha Motors
Master Cylinder Bracket4L0-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$32.39
You save $3.60
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-15%
8
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
9
Yamaha Motors
Brake Hose3LC-25872-00-00
Required: 1
HOSE, BRAKE 1
No longer availableSearch Nationwide Inventory
$115.19
You save $12.80
-10%
No longer availableSearch Nationwide Inventory
$115.19
You save $12.80
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-20%
12
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
13
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10034-00
$11.24
You save $1.25
-10%
14
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90465-13154-00
$5.84
You save $0.65
-10%
15
Yamaha Motors
Starter Lever240-83941-00-00
Required: 1
LEVER, STARTER
No longer availableSearch Nationwide Inventory
$159.29
You save $17.70
-10%
16
Yamaha Motors
98503-06018-0092503-06018-00
Required: 11
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$4.14
You save $0.46
-10%
17
Yamaha Motors
Plate Washer90201-12175-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-15%
18
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
20
Yamaha Motors
HOLDER, STARTER LEVER2A0-83946-00
Required: 12
HOLDER, STARTER LEVER
Price unavailable
-10%
21
Yamaha Motors
STARTER CABLE3AK-26331-00-00
Required: 2
CABLE, STARTER 1
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
