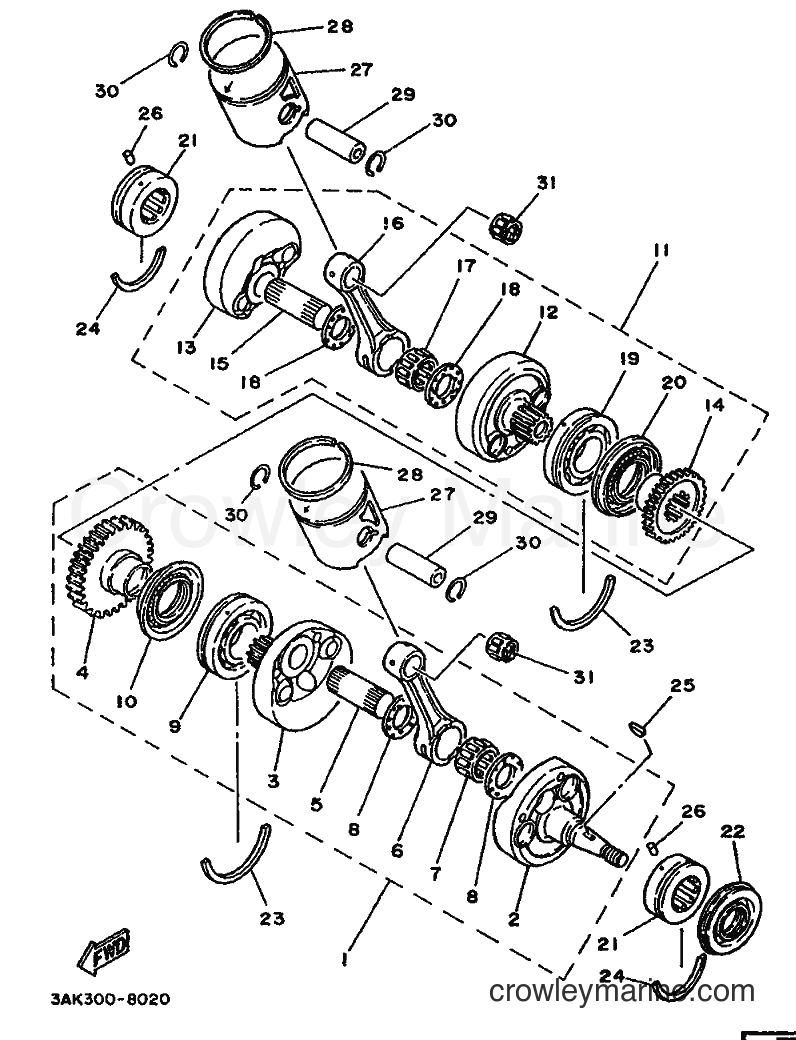

1991 Street Bike TZ250 - TZ250 (3TC1) [020] CRANKSHAFT & PISTON diagram
![Yamaha Motors TZ250 (3TC1) [020] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/L7ixL05k.png)
-10%
1
Yamaha Motors
Crank Subassembly 13TC-11401-00-00
Required: 1
CRANK SUB ASSY 1
No longer availableSearch Nationwide Inventory
$498.59
You save $55.40
-10%
No longer availableSearch Nationwide Inventory
$541.79
You save $60.20
-10%
No longer availableSearch Nationwide Inventory
$464.39
You save $51.60
-10%
4
Yamaha Motors
Drive Gear3TC-11536-00-00
Required: 1
. GEAR, DRIVE
No longer availableSearch Nationwide Inventory
$50.49
You save $5.61
-10%
5
Yamaha Motors
CRANK PIN 13AK-11681-00-00
Required: 1
. PIN, CRANK 1
No longer availableSearch Nationwide Inventory
$50.39
You save $5.60
-10%
6
Yamaha Motors
Connector Rod4FU-11651-00-00
Required: 1
. ROD, CONNECTING
Supersedes: 2RH-11651-00-00
$54.89
You save $6.10
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
10
Yamaha Motors
. OIL SEAL93103-37182
Required: 1
. OIL SEAL
Price unavailable
-10%
11
Yamaha Motors
Crank Subassembly3TC-11402-00-00
Required: 1
CRANK SUB ASSY 2
No longer availableSearch Nationwide Inventory
$498.59
You save $55.40
-10%
No longer availableSearch Nationwide Inventory
$464.39
You save $51.60
-10%
No longer availableSearch Nationwide Inventory
$198.89
You save $22.10
-10%
14
Yamaha Motors
GEAR,CRANK SHAFT5F7-11434-00-00
Required: 1
. GEAR, CRANK SHAFT
No longer availableSearch Nationwide Inventory
$121.49
You save $13.50
-10%
15
Yamaha Motors
CRANK PIN 13AK-11681-00-00
Required: 1
. PIN, CRANK 1
No longer availableSearch Nationwide Inventory
$50.39
You save $5.60
-10%
16
Yamaha Motors
Connector Rod4FU-11651-00-00
Required: 1
. ROD, CONNECTING
Supersedes: 2RH-11651-00-00
$54.89
You save $6.10
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$107.99
You save $12.00
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
No longer availableSearch Nationwide Inventory
$4.23
You save $0.47
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
25
Yamaha Motors
KEY, WOODRUFF(3MA)90280-04051-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-04001-00
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
$2.48
You save $0.27
-10%
No longer availableSearch Nationwide Inventory
$89.09
You save $9.90
-10%
No longer availableSearch Nationwide Inventory
$80.09
You save $8.90
-10%
27
Yamaha Motors
Piston Std3TC-11631-00-B0
Required: 2
PISTON (STD)
Supersedes: 3TC-11631-00-C0
No longer availableSearch Nationwide Inventory
$116.09
You save $12.90
-10%
No longer availableSearch Nationwide Inventory
$116.09
You save $12.90
-10%
$92.69
You save $10.30
-10%
29
Yamaha Motors
Piston Pin137-11633-10-00
Required: 2
PIN, PISTON
Supersedes: 137-11633-00-00
$27.89
You save $3.10
-15%
In stock
Only 3 remaining
$3.78
You save $0.67
-10%
31
Yamaha Motors
Cylinder Bearing93310-316D5-00
Required: 2
BEARING
Supersedes: 93310-316H7-00
$44.09
You save $4.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
