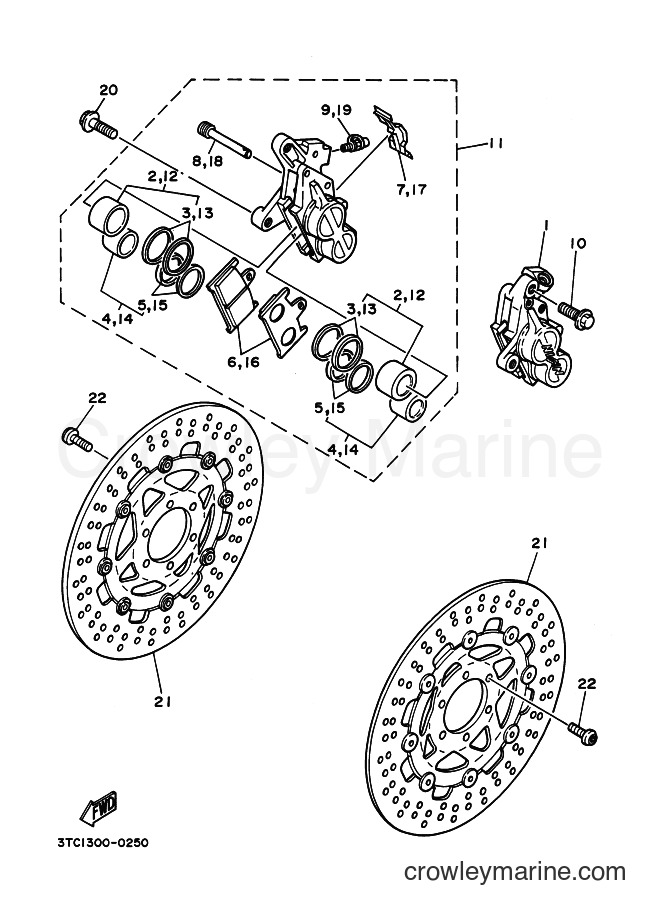

1991 Street Bike TZ250 - TZ250 (3TC1) [020] FRONT BRAKE CALIPER diagram
![Yamaha Motors TZ250 (3TC1) [020] - FRONT BRAKE CALIPER](https://cdn.crowleymarine.com/yamaha/WfDvC2Pd.png)
-10%
1
Yamaha Motors
Caliper Assembly Left4TW-2580T-00-00
Required: 1
CALIPER ASSY (LEFT)
Supersedes: 3TC-2580T-00-00
No longer availableSearch Nationwide Inventory
$668.69
You save $74.30
-10%
2
Yamaha Motors
PISTON RING CALIPER3FV-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
3
Yamaha Motors
Caliper Seal Kit3FV-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
4
Yamaha Motors
PISTON RING CALIPER3FV-W0057-10-00
Required: 1
. PISTON ASSY, CALIPER
No longer availableSearch Nationwide Inventory
$80.99
You save $9.00
-10%
5
Yamaha Motors
Caliper Seal Kit3FV-W0047-10-00
Required: 1
. . CALIPER SEAL KIT
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
-10%
6
Yamaha Motors
Brake Pad Kit4TW-W0045-00-00
Required: 1
. BRAKE PAD KIT
Supersedes: 3TC-W0045-00-00
No longer availableSearch Nationwide Inventory
$39.56
You save $4.39
-10%
7
Yamaha Motors
Pad Support3FV-25919-00-00
Required: 1
. SUPPORT, PAD
$7.64
You save $0.85
-10%
$23.39
You save $2.60
-50%
9
Yamaha Motors
Bleed Screw Kit36Y-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 1UY-W0048-50-00
In stock
Only 1 remaining
$5.50
You save $5.50
-50%
10
Yamaha Motors
Washer Based Bolt90105-10638-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-10308-00
In stock
Only 4 remaining
$4.25
You save $4.25
-10%
11
Yamaha Motors
RIGHT CALIPER ASSEMBLY4DP-2580U-00-00
Required: 1
CALIPER ASSY (RIGHT)
Supersedes: 3TC-2580U-00-00
$291.59
You save $32.40
-10%
12
Yamaha Motors
PISTON RING CALIPER3FV-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
13
Yamaha Motors
Caliper Seal Kit3FV-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
14
Yamaha Motors
PISTON RING CALIPER3FV-W0057-10-00
Required: 1
. PISTON ASSY, CALIPER
No longer availableSearch Nationwide Inventory
$80.99
You save $9.00
-10%
15
Yamaha Motors
Caliper Seal Kit3FV-W0047-10-00
Required: 1
. . CALIPER SEAL KIT
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
-10%
16
Yamaha Motors
Brake Pad Kit4TW-W0045-00-00
Required: 1
. BRAKE PAD KIT
Supersedes: 3TC-W0045-00-00
No longer availableSearch Nationwide Inventory
$39.56
You save $4.39
-10%
17
Yamaha Motors
Pad Support3FV-25919-00-00
Required: 1
. SUPPORT, PAD
$7.64
You save $0.85
-10%
$23.39
You save $2.60
-50%
19
Yamaha Motors
Bleed Screw Kit36Y-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 1UY-W0048-50-00
In stock
Only 1 remaining
$5.50
You save $5.50
-50%
20
Yamaha Motors
Washer Based Bolt90105-10638-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-10308-00
In stock
Only 4 remaining
$4.25
You save $4.25
-10%
21
Yamaha Motors
Disc Brake Assembly3LC-25830-00-00
Required: 2
DISK BRAKE ASSY
No longer availableSearch Nationwide Inventory
$339.29
You save $37.70
-10%
$5.84
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
