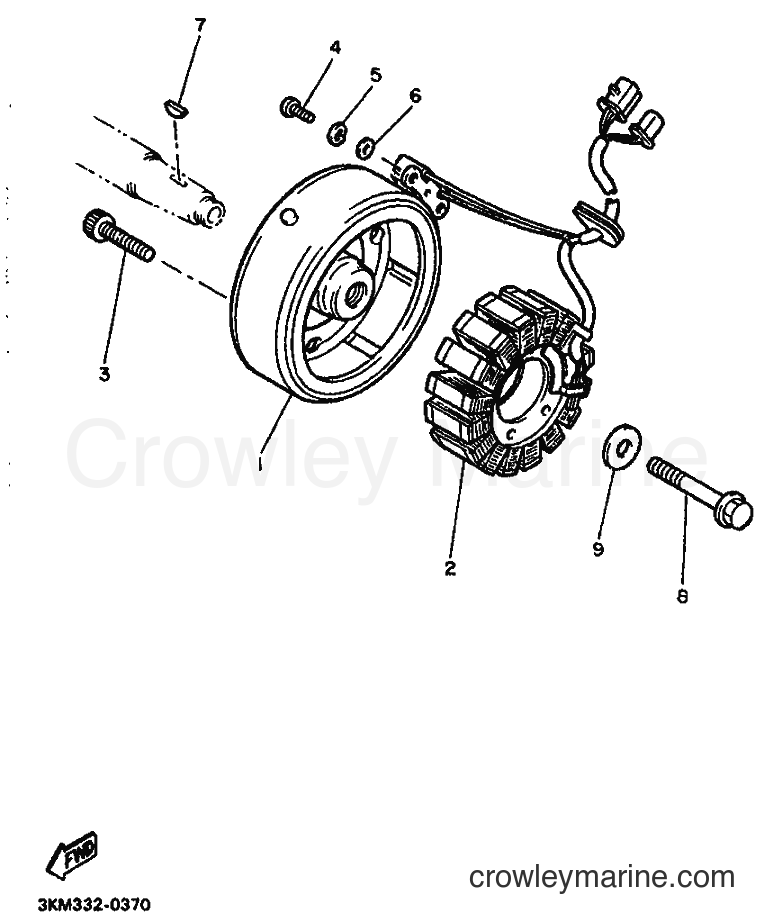

1990 Street Bike XJ600 - XJ600 (3KM3) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XJ600 (3KM3) [999] - GENERATOR
Change View:
-15%
Spring Washer
5
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
-10%
Woodruff Key
7
Yamaha Motors
Woodruff Key90280-03047-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-10430-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plate Washer (1WG)
9
Yamaha Motors
Plate Washer (1WG)90201-107K6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
