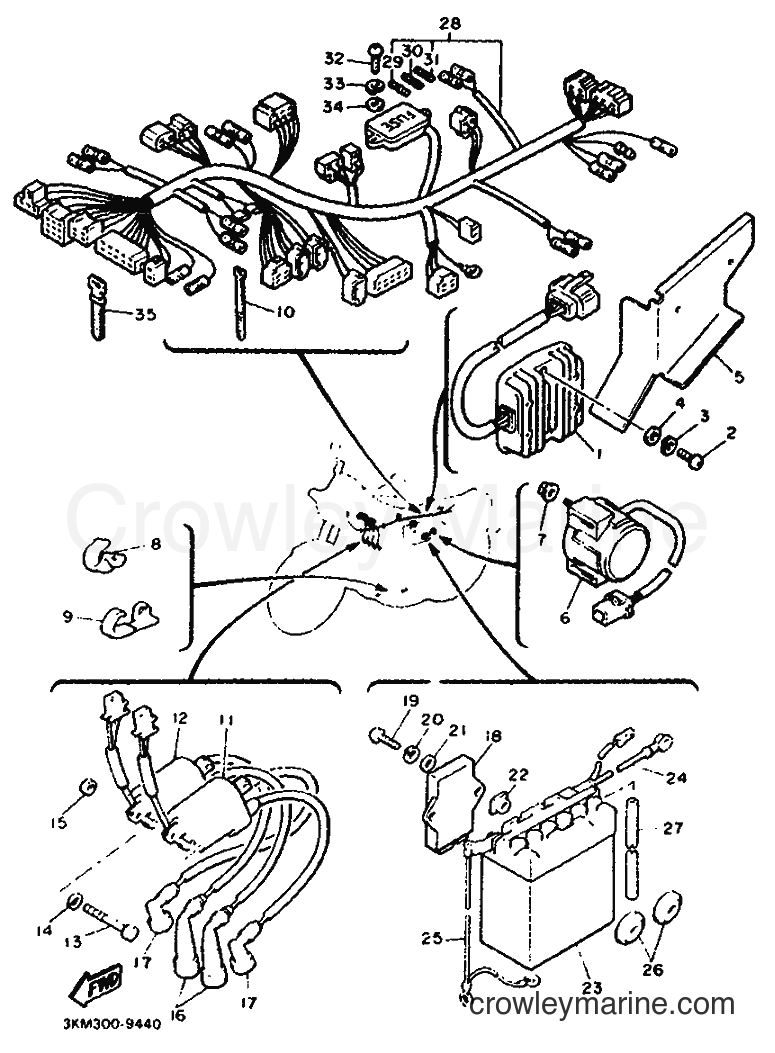

1990 Street Bike XJ600 - XJ600 (3KN2) [999] ELECTRICAL 1 diagram
![Yamaha Motors XJ600 (3KN2) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/FSVt0PSt.png)
1
Yamaha Motors
RECTIFIER & REGULATOR ASSY47X-81960-A0
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-15%
2
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
5
Yamaha Motors
PLATE, RECTIFIER FITTING3KM-81975-00
Required: 1
PLATE, RECTIFIER FITTING
Price unavailable
-10%
6
Yamaha Motors
Obsolete Yamaha Part4KD-81940-00-00
Required: 1
STARTER RELAY ASSY
Supersedes: 3AY-81940-00-00
$113.39
You save $12.60
-10%
7
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 2
NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
-10%
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
11
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2XL-82310-10-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
-10%
12
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2XL-82320-10-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
13
Yamaha Motors
BOLT97302-06065
Required: 2
BOLT
Price unavailable
-15%
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-15%
In stock
5+ in stock
$4.17
You save $0.74
16
Yamaha Motors
PLUG CAP ASSY4G0-82370-00
Required: 2
PLUG CAP ASSY
Price unavailable
-10%
17
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 1
PLUG CAP ASSY
Supersedes: 55X-82370-00-00
$35.09
You save $3.90
18
Yamaha Motors
IGNITER UNIT ASSY3KM-82305-01
Required: 1
IGNITER UNIT ASSY
Price unavailable
-15%
19
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
20
Yamaha Motors
WASHER92990-06012
Required: 1
WASHER
Price unavailable
-15%
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
23
Yamaha Motors
12N12A-4A-1 YUASA B12N-12A4A-1Y-00
Required: 1
BATTERY ASSY (12N12A-4A)
Supersedes: 366-82110-79-00
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
24
Yamaha Motors
Plus Lead Wire4BH-82115-00-00
Required: 1
WIRE, PLUS LEAD
Supersedes: 33M-82115-00-00
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
25
Yamaha Motors
MINUS LEAD WIRE4G0-82116-00-00
Required: 1
WIRE, MINUS LEAD
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
$8.99
You save $1.00
-10%
27
Yamaha Motors
Hose (3GG)90445-084J0-00
Required: 1
HOSE (L580)
Supersedes: 90445-08348-00
$18.89
You save $2.10
28
Yamaha Motors
WIRE HARNESS ASSY3KM-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
29
Yamaha Motors
Fuse (12V/10A)2H7-82151-00-00
Required: 1
FUSE (12V-30A)
$3.69
You save $0.41
-10%
30
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
. FUSE (20A)
Supersedes: 148-82151-00-00
$7.64
You save $0.85
-10%
31
Yamaha Motors
Obsolete Yamaha Part1A0-82151-00-00
Required: 2
. FUSE (10A)
Supersedes: 116-82151-00-00
$16.19
You save $1.80
-50%
32
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
-15%
33
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
$0.30
You save $0.05
-15%
34
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
