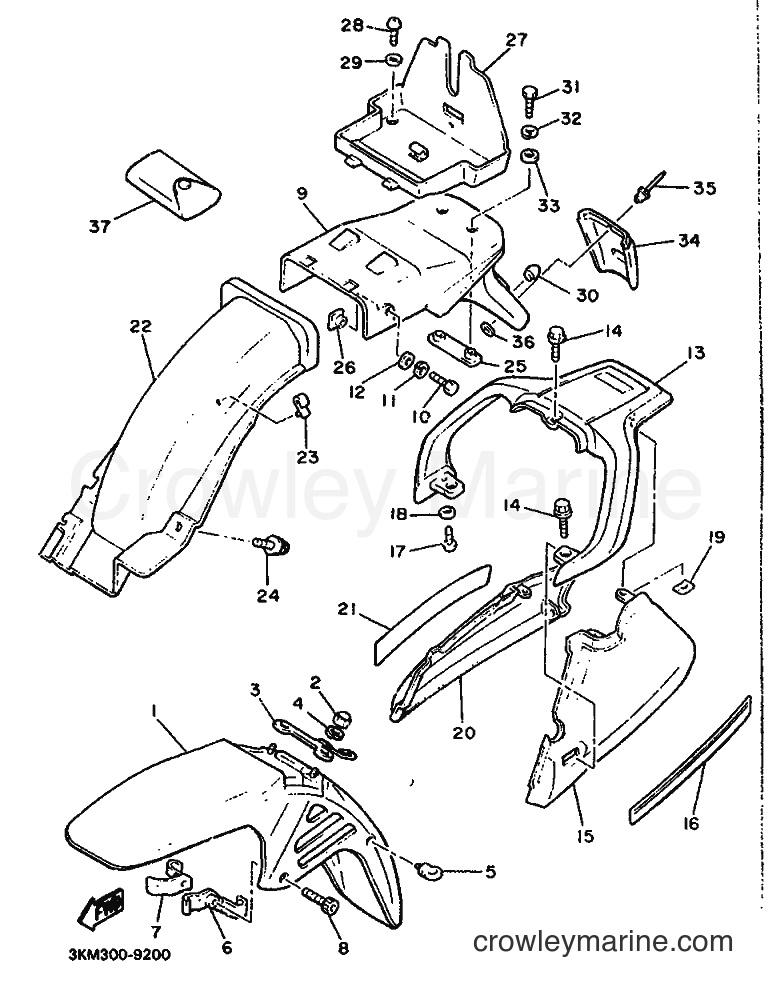

1990 Street Bike XJ600 - XJ600 (3KN2) [999] FENDER diagram
![Yamaha Motors XJ600 (3KN2) [999] - FENDER](https://cdn.crowleymarine.com/yamaha/FWwVN2As.png)
-10%
1
Yamaha Motors
Front Fender33M-21510-00-GE
Required: 1
FRONT FENDER COMP.
No longer availableSearch Nationwide Inventory
$137.69
You save $15.30
1
Yamaha Motors
FRONT FENDER COMP.33M-21510-00-EG
Required: 1
FRONT FENDER COMP.
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$3.06
You save $0.34
3
Yamaha Motors
HOLDER2NG-21596-00
Required: 1
HOLDER
Price unavailable
-15%
4
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
5
Yamaha Motors
Cable Holder1A8-21518-00-00
Required: 1
HOLDER, CABLE
$7.64
You save $0.85
6
Yamaha Motors
PLATE 133M-21523-00
Required: 1
PLATE 1
Price unavailable
7
Yamaha Motors
PLATE 233M-21524-00
Required: 1
PLATE 2
Price unavailable
8
Yamaha Motors
BOLT91311-06005
Required: 2
BOLT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
10
Yamaha Motors
BOLT97014-06016-00
Required: 2
BOLT
Supersedes: 97021-06016-00
No longer availableSearch Nationwide Inventory
$1.62
You save $0.18
-15%
11
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$280.79
You save $31.20
-10%
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
15
Yamaha Motors
COVER, REAR FENDER 133M-2163A-00-GE
Required: 1
COVER, REAR FENDER 1
Price unavailable
15
Yamaha Motors
COVER, REAR FENDER 133M-2163A-00-EG
Required: 1
COVER, REAR FENDER 1
Price unavailable
16
Yamaha Motors
GRAPHIC, R.FENDER COVER (L.H)3KM-21661-00
Required: 1
GRAPHIC, R.FENDER COVER (L.H)
Price unavailable
16
Yamaha Motors
GRAPHIC, R.FENDER COVER (L.H)3KM-21661-20
Required: 1
GRAPHIC, R.FENDER COVER (L.H)
Price unavailable
-10%
17
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
18
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
19
Yamaha Motors
Spring Nut90183-06071-00
Required: 2
NUT, SPRING
Supersedes: 90183-06011-00
$2.08
20
Yamaha Motors
COVER, REAR FENDER 233M-2163E-00-EG
Required: 1
COVER, REAR FENDER 2
Price unavailable
20
Yamaha Motors
COVER, REAR FENDER 233M-2163E-00-GE
Required: 1
COVER, REAR FENDER 2
Price unavailable
21
Yamaha Motors
GRAPHIC, R.FENDER COVER (R.H)3KM-21662-00
Required: 1
GRAPHIC, R.FENDER COVER (R.H)
Price unavailable
21
Yamaha Motors
GRAPHIC, R.FENDER COVER (R.H)3KM-21662-20
Required: 1
GRAPHIC, R.FENDER COVER (R.H)
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
$12.14
You save $1.35
-10%
24
Yamaha Motors
Bolt With Washer90119-06018-00
Required: 1
BOLT, WITH WASHER
$8.54
You save $0.95
-10%
25
Yamaha Motors
NUT,REAR FENDER33M-21635-00-00
Required: 1
NUT, REAR FENDER
No longer availableSearch Nationwide Inventory
$3.21
You save $0.36
-10%
No longer availableSearch Nationwide Inventory
$2.32
You save $0.26
-10%
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
28
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
-15%
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
$8.54
You save $0.95
-15%
In stock
Only 5 remaining
$2.35
You save $0.41
-15%
32
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
33
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
34
Yamaha Motors
FLAP51J-21621-00
Required: 1
FLAP
Price unavailable
-10%
$8.54
You save $0.95
-10%
36
Yamaha Motors
Plate Washer90201-044H9-00
Required: 3
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
37
Yamaha Motors
TOOL KIT3KM-28100-00
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
