1991 Street Bike RD75LC - RD75LC (1NM) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

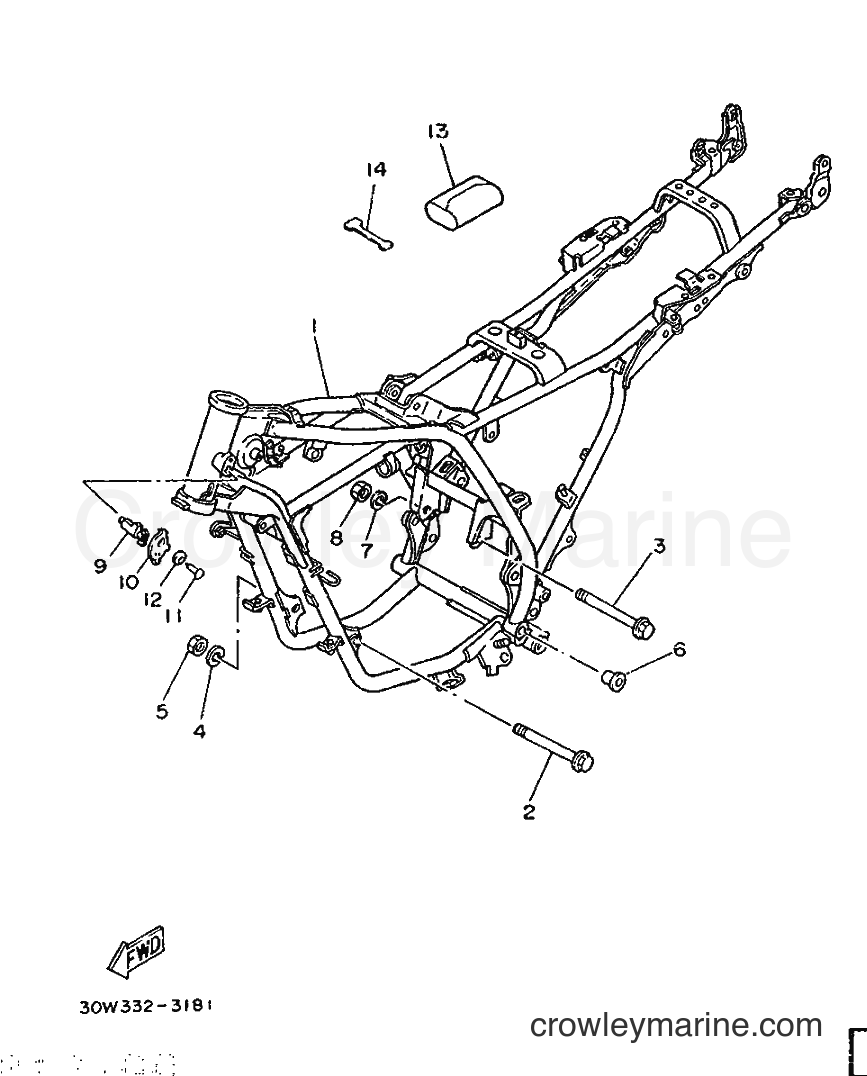

Yamaha Motors RD75LC (1NM) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.30W-21110-01-33
Required: 1
FRAME COMP.
Price unavailable
-10%
Flange Bolt
2
Yamaha Motors
Flange Bolt95817-08125-00
Required: 1
BOLT, FLANGE
Supersedes: 95821-08125-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Washer Based Bolt
3
Yamaha Motors
Washer Based Bolt90109-101A0-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Plug
6
Yamaha Motors
Plug90338-18122-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Nut
8
Yamaha Motors
Nut95314-10600-00
Required: 1
NUT
Supersedes: 95301-10600-00
Cross Ship
Leaves in 2-5 days
$2.55
$2.30
You save $0.25
More details
NUT 2
10
Yamaha Motors
NUT 2134-23834-10
Required: 1
NUT 2
Price unavailable
-10%
SPECIAL SHAPE RIVET
11
Yamaha Motors
SPECIAL SHAPE RIVET90269-04003-00
Required: 1
RIVET
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Conical Spring Washer
12
Yamaha Motors
Conical Spring Washer90208-04029-00
Required: 1
WASHER, CONICAL SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
TOOL KIT
13
Yamaha Motors
TOOL KIT10W-28100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
