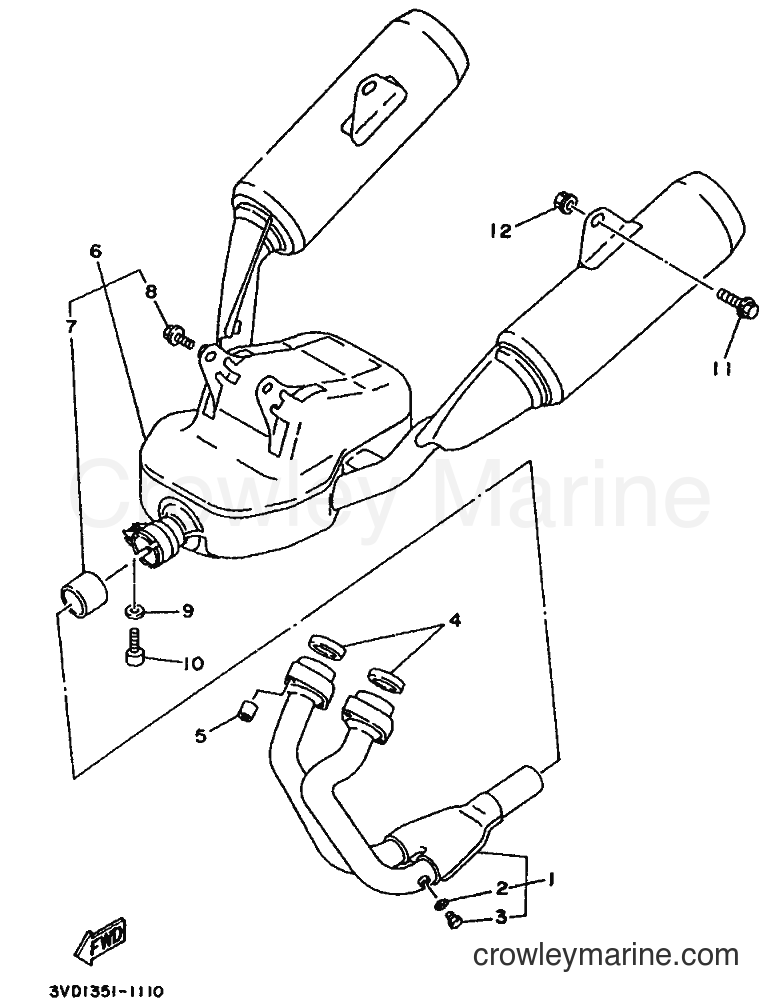

1991 Street Bike TDM850 - TDM850 (3VD2) [999] EXHAUST diagram
![Yamaha Motors TDM850 (3VD2) [999] - EXHAUST](https://cdn.crowleymarine.com/yamaha/gBXQncck.png)
1
Yamaha Motors
EXHAUST PIPE COMP.3VD-14602-00
Required: 1
EXHAUST PIPE COMP.
Price unavailable
-10%
2
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
. WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
-10%
$8.54
You save $0.95
-50%
4
Yamaha Motors
Exhaust Pipe Gasket3VD-14613-01-00
Required: 2
GASKET, EXHAUST PIPE
Supersedes: 3VD-14613-00-00
In stock
Only 1 remaining
$6.50
You save $6.50
-10%
No longer availableSearch Nationwide Inventory
$4.32
You save $0.48
6
Yamaha Motors
MUFFLER ASSY 13VD-14710-01
Required: 1
MUFFLER ASSY 1
Price unavailable
-10%
7
Yamaha Motors
Silencer Gasket3VD-14755-00-00
Required: 1
. GASKET, SILENCER
$37.79
You save $4.20
-10%
8
Yamaha Motors
Bolt Washer (71X)99999-01790-00
Required: 1
. BOLT, FRANGE
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
9
Yamaha Motors
Plate Washer90201-08326-00
Required: 1
WASHER, PLATE
Supersedes: 90201-081H4-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
11
Yamaha Motors
Washer Based Bolt90105-10778-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10316-00
$5.80
12
Yamaha Motors
Flange Bolt95704-10500-00
Required: 2
NUT, WITH WASHER
Supersedes: 95701-10500-00
$2.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
