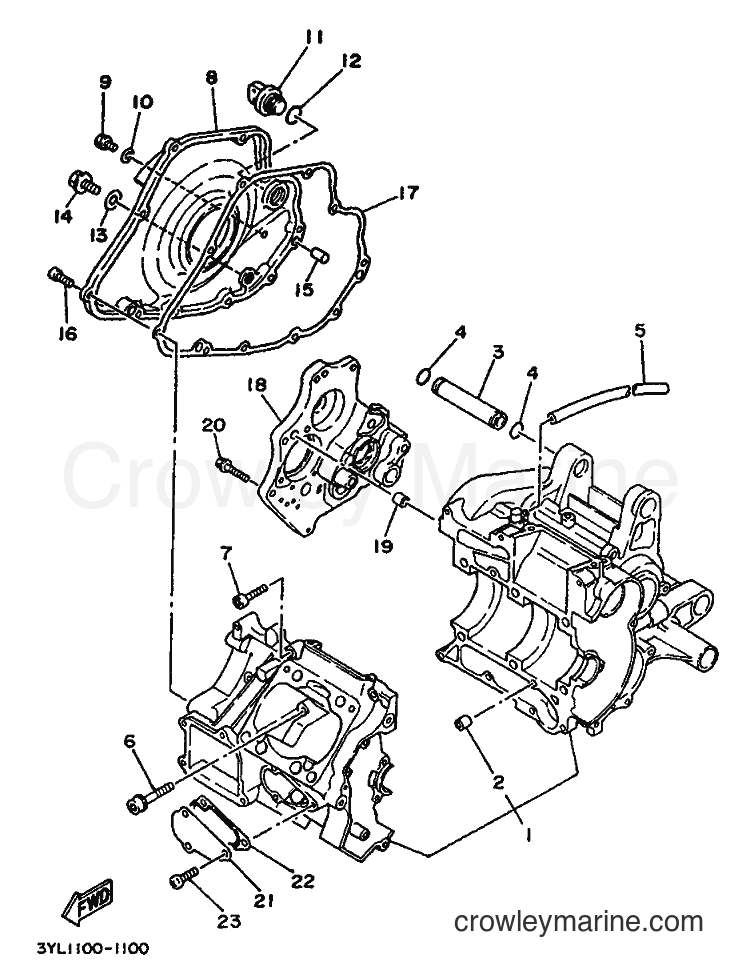

1991 Street Bike TZ250 - TZ250 (3YL1) [999] CRANKCASE diagram
![Yamaha Motors TZ250 (3YL1) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/oCBZKtAG.png)
-10%
1
Yamaha Motors
CRANKCASE ASSEMBLY3YL-15100-02-00
Required: 1
CRANKCASE ASSY
Supersedes: 3YL-15100-00-00
No longer availableSearch Nationwide Inventory
$2295.89
You save $255.10
-15%
2
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
. PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
-10%
3
Yamaha Motors
SPACER, ENG MOUNT3YL-15327-01-00
Required: 2
. SPACER, ENGINE MOUNT
Supersedes: 3YL-15327-00-00
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
-10%
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
$5.84
You save $0.65
-10%
7
Yamaha Motors
Socket Bolt91314-06030-00
Required: 9
BOLT
Supersedes: 91311-06030-00
$8.54
You save $0.95
-10%
8
Yamaha Motors
Crankcase Cover3YL-15421-00-00
Required: 1
COVER, CRANKCASE 2
No longer availableSearch Nationwide Inventory
$297.89
You save $33.10
-10%
$21.59
You save $2.40
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
11
Yamaha Motors
PLUG, OIL4AO-15363-00
Required: 1
PLUG, OIL
Price unavailable
-10%
$7.64
You save $0.85
-50%
In stock
Only 5 remaining
$4.25
You save $4.25
-10%
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
15
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
PIN, DOWEL
Supersedes: 99510-08012-00
$4.09
You save $0.46
-6%
No longer availableSearch Nationwide Inventory
$2.15
You save $0.15
-10%
17
Yamaha Motors
CRANKCASE COVER 2 GASKET3YL-15461-01-00
Required: 1
GASKET, CRANKCASE COVER 2
Supersedes: 3YL-15461-00-00
$34.19
You save $3.80
-10%
18
Yamaha Motors
CRNKCASE 33XV-15131-01-00
Required: 1
CRANKCASE 3
Supersedes: 3XV-15131-00-00
No longer availableSearch Nationwide Inventory
$305.09
You save $33.90
-15%
19
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
-10%
$2.52
You save $0.28
-10%
21
Yamaha Motors
CRANKCASE COVER 33XV-15431-00-00
Required: 1
COVER, CRANKCASE 3
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
22
Yamaha Motors
CRANKCASE COVER GASKET 33XV-15462-00-00
Required: 1
GASKET, CRANKCASE COVER 3
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-10%
23
Yamaha Motors
Button Bolt92017-06014-00
Required: 3
BOLT, BUTTON HEAD
Supersedes: 92011-06014-00
$4.14
You save $0.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
