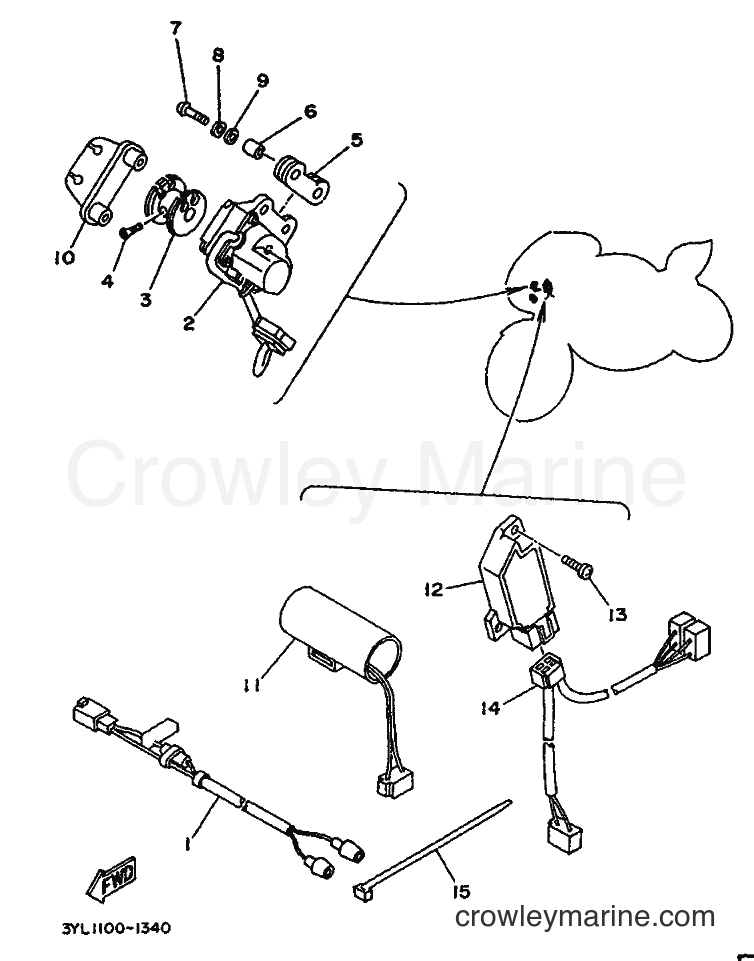

1991 Street Bike TZ250 - TZ250 (3YL1) [999] ELECTRICAL 1 diagram
![Yamaha Motors TZ250 (3YL1) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/8h6M0dPm.png)
-10%
No longer availableSearch Nationwide Inventory
$41.39
You save $4.60
-10%
2
Yamaha Motors
Geared Motor Assembly3LC-85850-00-00
Required: 1
GEARED MOTOR COMP.
$498.59
You save $55.40
-10%
3
Yamaha Motors
Pulley Drive3YL-85821-00-00
Required: 1
PULLEY, DRIVE
No longer availableSearch Nationwide Inventory
$44.09
You save $4.90
-10%
4
Yamaha Motors
Countersunk Screw90151-05023-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90151-05031-00
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
6
Yamaha Motors
COLLAR90387-06088-00
Required: 2
COLLAR
Supersedes: 90387-064A5-00
$2.03
-10%
7
Yamaha Motors
Pan Head Screw98507-06035-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06035-00
$8.54
You save $0.95
-10%
8
Yamaha Motors
PAN SCREW98507-06100-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06100-00
$8.54
You save $0.95
-10%
9
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
$0.59
You save $0.06
-10%
10
Yamaha Motors
Cable Bracket3YL-85824-00-00
Required: 1
BRACKET, CABLE
No longer availableSearch Nationwide Inventory
$102.59
You save $11.40
-10%
11
Yamaha Motors
Condenser3TC-81965-00-00
Required: 1
CONDENSER, SMOOTHING
$82.79
You save $9.20
-10%
12
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY1JK-81960-A1-00
Required: 1
RECTIFIER & REGULATOR ASSY
$103.49
You save $11.50
-15%
13
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-10%
14
Yamaha Motors
SUB LEAD WIRE3TC-82509-00-00
Required: 1
WIRE, SUB LEAD
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
