1991 Street Bike TZ250 - TZ250 (3YL1) [030] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

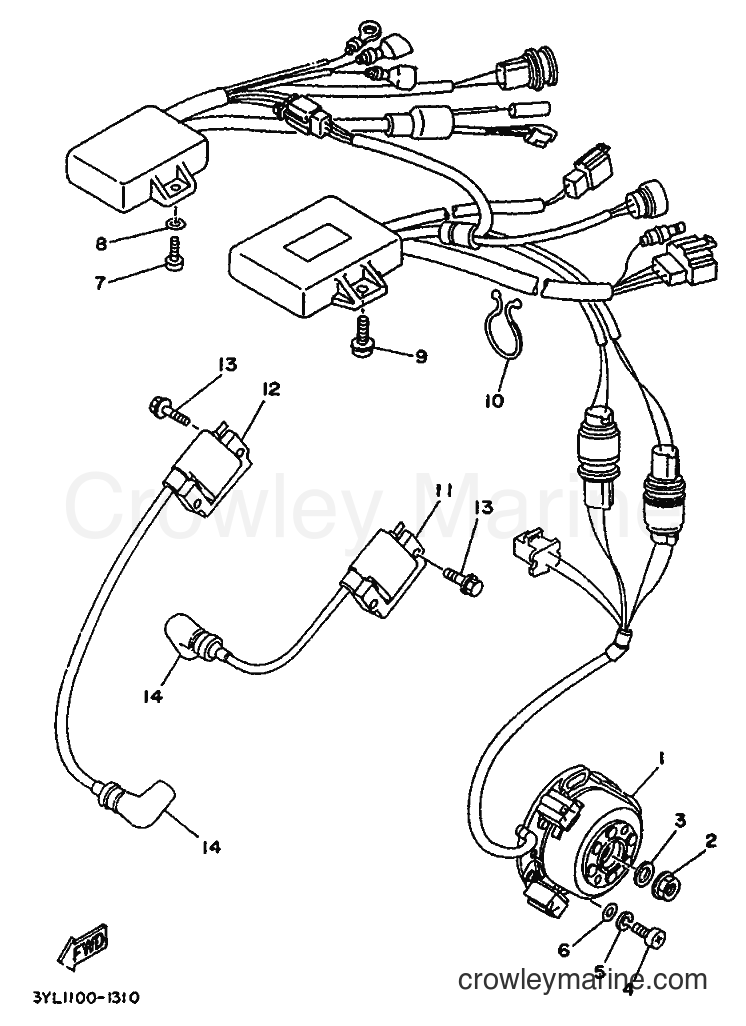

Yamaha Motors TZ250 (3YL1) [030] - GENERATOR
Change View:
-10%
SPECIAL SHAPE NUT
2
Yamaha Motors
SPECIAL SHAPE NUT90179-12335-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plate Washer
3
Yamaha Motors
Plate Washer90201-127E1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
-10%
Clamp
10
Yamaha Motors
Clamp90464-30040-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Flange Bolt
13
Yamaha Motors
Flange Bolt95024-06020-00
Required: 4
BOLT, FLANGE
Supersedes: 95023-06020-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
