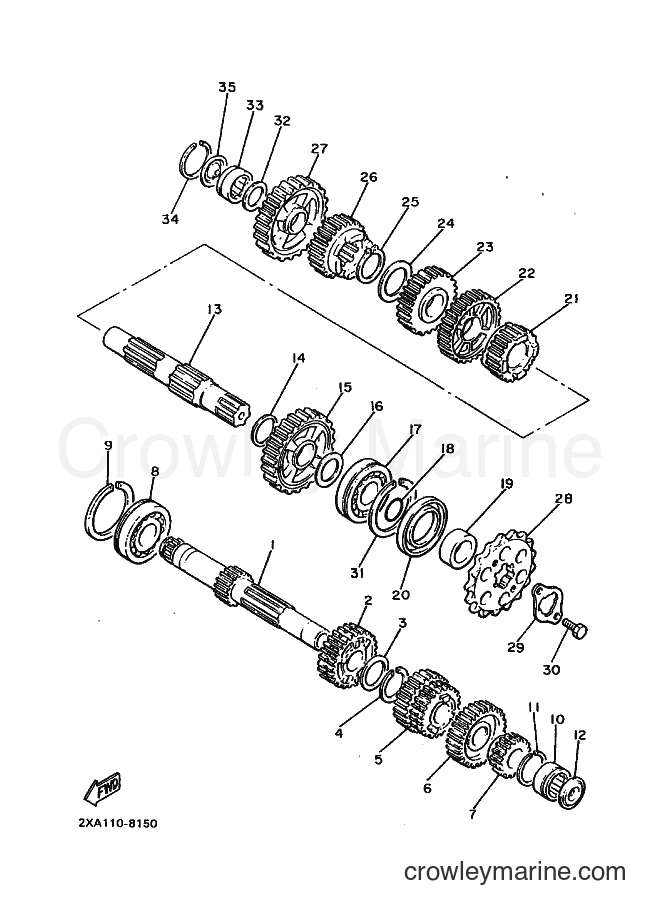

1991 Street Bike YX600 - YX600 (3LT7) [010] TRANSMISSION diagram
![Yamaha Motors YX600 (3LT7) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/GRQHDHbT.png)
-10%
1
Yamaha Motors
Main Axle4G0-17411-00-00
Required: 1
AXLE, main (15T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
2
Yamaha Motors
5th Pinion Gear4U8-17151-01-00
Required: 1
GEAR, 5th pinion (28T)
No longer availableSearch Nationwide Inventory
$64.79
You save $7.20
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
5
Yamaha Motors
3rd Pinion Gear4U8-17131-00-00
Required: 1
GEAR, 3rd/4th pinion (22/25T)
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
6
Yamaha Motors
6th Pinion Gear4U8-17161-00-00
Required: 1
GEAR. 6th pinion (30T)
No longer availableSearch Nationwide Inventory
$117.89
You save $13.10
-10%
7
Yamaha Motors
2nd Pinion Gear4U8-17121-01-00
Required: 1
GEAR, 2nd pinion
$60.29
You save $6.70
-10%
8
Yamaha Motors
BEARING93306-30504-00
Required: 1
BEARING (6305NC3)
Supersedes: 93306-30530-00
$70.19
You save $7.80
-10%
$21.59
You save $2.40
-10%
10
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
14
Yamaha Motors
Plate Washer90201-273A9-00
Required: 1
WASHER, plate
No longer availableSearch Nationwide Inventory
$2.93
You save $0.32
-10%
15
Yamaha Motors
2ND WHEEL GEAR4G0-17221-00-00
Required: 1
GEAR, 2nd wheel (37T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
16
Yamaha Motors
Plate Washer90201-256K6-00
Required: 1
SHIM (1.0T)
Supersedes: 4A0-17216-00-10
$4.28
You save $0.47
-50%
17
Yamaha Motors
BEARING93306-30550-00
Required: 1
BEARING (B6305Z)
Supersedes: 93306-30528-00
In stock
Only 1 remaining
$35.00
You save $35.00
-15%
$7.22
You save $1.27
-10%
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
-10%
20
Yamaha Motors
SD-TYPE OIL SEAL93102-35109-00
Required: 1
OIL SEAL (SD-35-62-6 HS)
$26.09
You save $2.90
-10%
21
Yamaha Motors
6th Wheel Gear4G0-17261-01-00
Required: 1
GEAR, 6th wheel (27T)
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
22
Yamaha Motors
3rd Wheel Gear4G0-17231-01-00
Required: 1
GEAR, 3rd wheel (34T)
Supersedes: 4G0-17231-00-00
$86.39
You save $9.60
-10%
23
Yamaha Motors
4TH WHEEL GEAR4G0-17241-01-00
Required: 1
GEAR, 4th wheel (31T)
Supersedes: 4G0-17241-00-00
$96.29
You save $10.70
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
26
Yamaha Motors
5th Wheel Gear12R-17251-00-00
Required: 1
GEAR, 5th wheel (29T)
No longer availableSearch Nationwide Inventory
$63.89
You save $7.10
-10%
27
Yamaha Motors
1st Gear Wheel4G0-17211-00-00
Required: 1
GEAR, 1st wheel (41T)
No longer availableSearch Nationwide Inventory
$117.89
You save $13.10
-10%
28
Yamaha Motors
DRIVE SPROCKET 16T49A-17460-00-00
Required: 1
SPROCKET, drive 16t(49A1746161)
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
29
Yamaha Motors
SPROCKET HOLDER3Y1-17456-00-00
Required: 1
HOLDER, sprocket
$7.64
You save $0.85
-10%
30
Yamaha Motors
BOLT97027-06012-00
Required: 2
BOLT
Supersedes: 97022-06012-00
No longer availableSearch Nationwide Inventory
$0.77
You save $0.08
-10%
$21.59
You save $2.40
-10%
32
Yamaha Motors
Plate Washer90201-20276-00
Required: 1
WASHER, plate (1.0T)
$8.54
You save $0.95
-10%
33
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
