1992 Street Bike SR125 - SR125 (3MW3) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

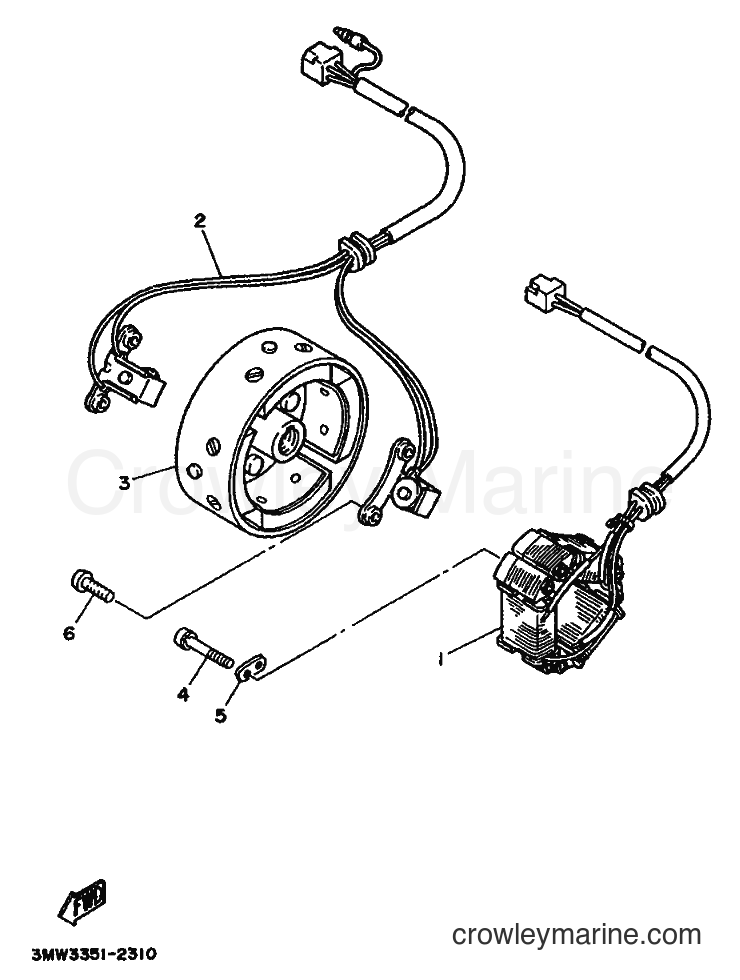

Yamaha Motors SR125 (3MW3) [999] - GENERATOR

Change View:

-10%

Yamaha Motors

STATOR ASSEMBLY5H0-81410-M0-00

Required: 1

STATOR ASSY

No longer availableSearch Nationwide Inventory

~~$249.99~~

$224.99

You save $25.00

More details

-10%

Yamaha Motors

Pulser Coil5H0-85580-M0-00

Required: 1

COIL, PULSER

No longer availableSearch Nationwide Inventory

~~$161.99~~

$145.79

You save $16.20

More details

-10%

Yamaha Motors

ROTOR ASSEMBLY5H0-81350-M0-00

Required: 1

ROTOR ASSY

No longer availableSearch Nationwide Inventory

~~$121.99~~

$109.79

You save $12.20

More details

-10%

Yamaha Motors

Screw with Washer90159-04041-00

Required: 6

SCREW, WITH WASHER

No longer availableSearch Nationwide Inventory

~~$3.55~~

$3.19

You save $0.35

More details

-10%

Yamaha Motors

COIL, PLATE5H0-81539-M0-00

Required: 3

PLATE, COIL

No longer availableSearch Nationwide Inventory

~~$1.59~~

$1.43

You save $0.16

More details

-15%

Yamaha Motors

Pan Head Screw98580-06020-00

Required: 4

SCREW, PAN HEAD

Supersedes: 98501-06020-00

In stock

Only 1 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
