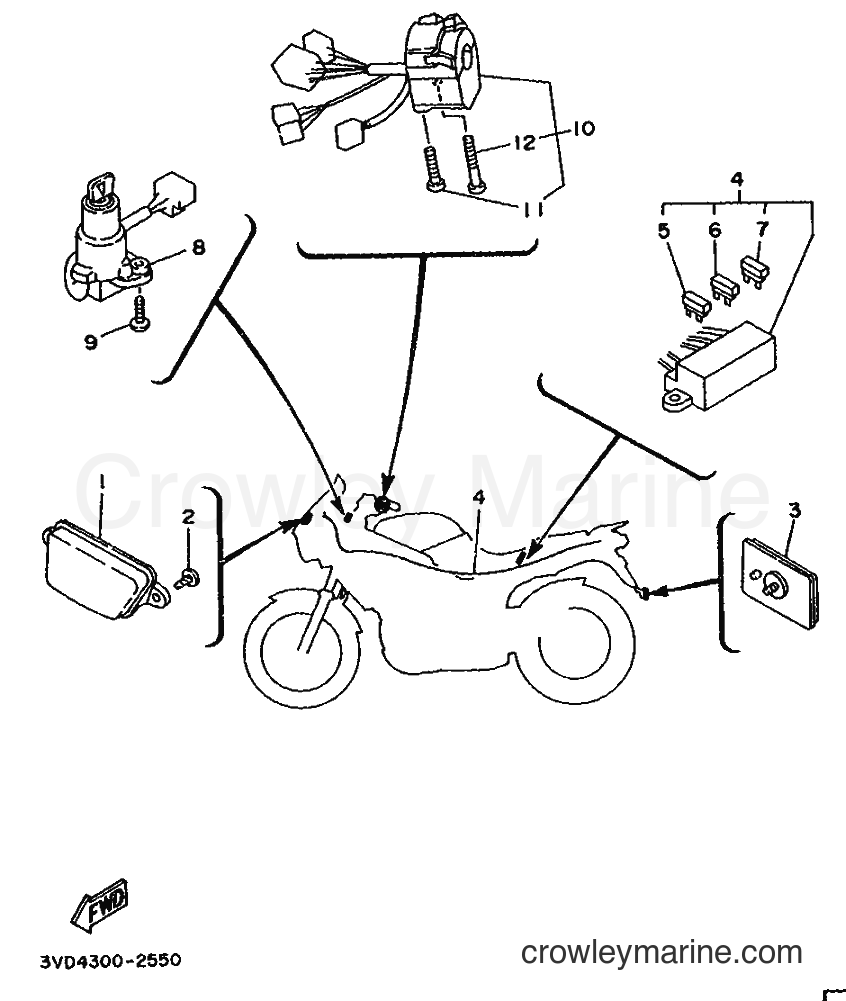

1992 Street Bike TDM850 - TDM850 (3VD4) [999] ALTERNATE FOR ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDM850 (3VD4) [999] - ALTERNATE FOR ELECTRICAL
Change View:
CAP
1
Yamaha Motors
CAP4DT-84378-00
Required: 1
CAP
Price unavailable
-10%
Truss Screw
2
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-05025-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
REAR REFLECTOR ASSY
3
Yamaha Motors
REAR REFLECTOR ASSY4CF-85130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable
WIRE HARNESS ASSY
4
Yamaha Motors
WIRE HARNESS ASSY4CF-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
Fuse (30A-Bl)
5
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Fuse (20A-BL)
6
Yamaha Motors
Fuse (20A-BL)2GV-82151-00-00
Required: 2
. FUSE
Supersedes: 2GH-82151-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
Fuse (10A-Bl)
7
Yamaha Motors
Fuse (10A-Bl)42X-82151-00-00
Required: 4
. FUSE
Cross Ship
Leaves in 2-5 days
$4.70
$4.23
You save $0.47
More details
MAIN SWITCH STEERING LOCK
8
Yamaha Motors
MAIN SWITCH STEERING LOCK4EP-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
SPECIAL SHAPE SCREW
9
Yamaha Motors
SPECIAL SHAPE SCREW90149-06228-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
SWITCH, HANDLE 5
10
Yamaha Motors
SWITCH, HANDLE 54EP-83969-00
Required: 1
SWITCH, HANDLE 5
Price unavailable
-10%
Pan Head Screw
11
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-05040-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
