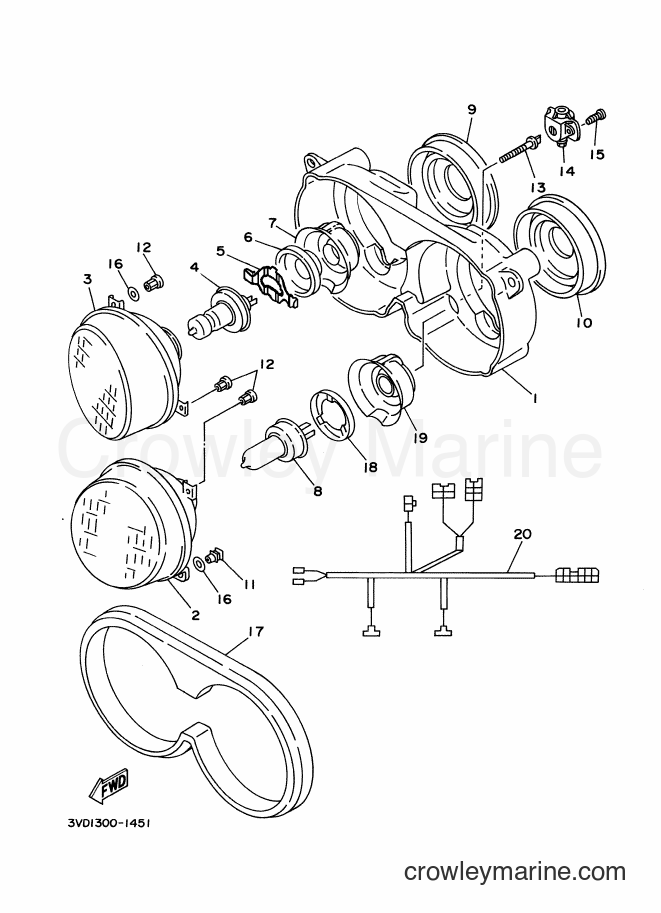

1992 Street Bike TDM850 - TDM850 (4CF2) [999] ALTERNATE FOR HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TDM850 (4CF2) [999] - ALTERNATE FOR HEADLIGHT
Change View:
LENS ASSY
2
Yamaha Motors
LENS ASSY3VD-84320-10
Required: 1
LENS ASSY
Price unavailable
LENS ASSY
3
Yamaha Motors
LENS ASSY3VD-8432A-10
Required: 1
LENS ASSY
Price unavailable
BULB(12V55W)
4
Yamaha Motors
BULB(12V55W)*
Required: 1
BULB(12V55W)
Price unavailable
HOLDER, BULB
6
Yamaha Motors
HOLDER, BULB2LA-84393-00
Required: 1
HOLDER, BULB
Price unavailable
COVER, SOCKET
7
Yamaha Motors
COVER, SOCKET2GM-84397-00
Required: 1
COVER, SOCKET
Price unavailable
-10%
Neutral Lock Holder
11
Yamaha Motors
Neutral Lock Holder3AJ-8431U-00-00
Required: 2
HOLDER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Adjusting Nut
12
Yamaha Motors
Adjusting Nut51L-84334-00-00
Required: 4
NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$9.99
$8.99
You save $1.00
More details
-10%
Tapping Screw
15
Yamaha Motors
Tapping Screw97707-40616-00
Required: 4
SCREW, TAPPING
Supersedes: 97706-40616-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
-10%
BULB FITTING PLATE
18
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
19
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
CORD, HEADLIGHT
20
Yamaha Motors
CORD, HEADLIGHT3VD-84359-00
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
