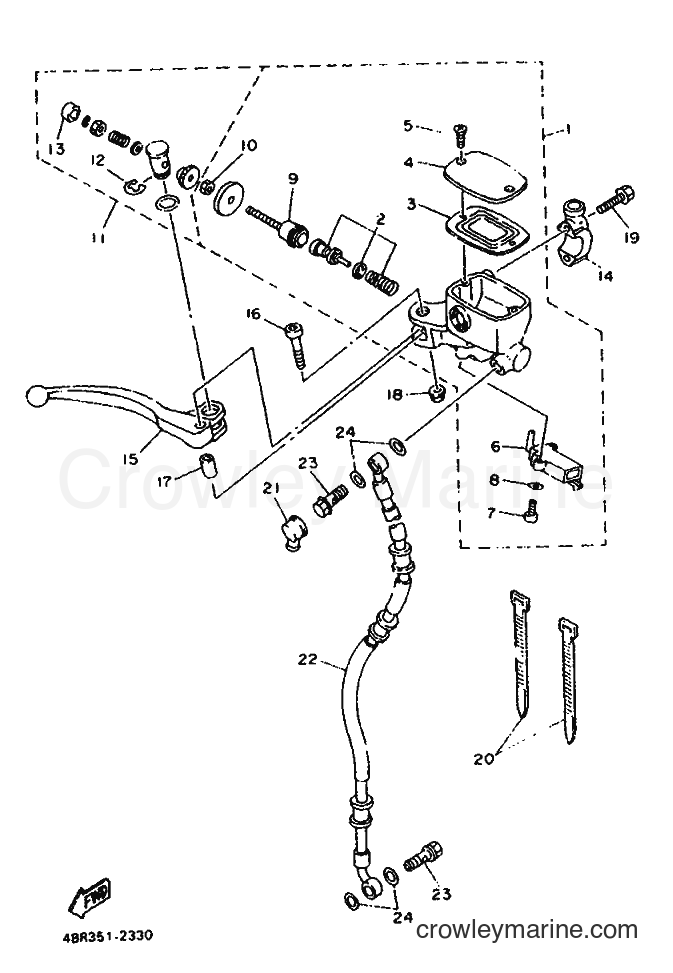

1992 Street Bike XJ600S - XJ600S (4BR2) [999] FRONT MASTER CYLINDER diagram
![Yamaha Motors XJ600S (4BR2) [999] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/IK00LZAS.png)
-10%
1
Yamaha Motors
Master Cylinder Subassembly4BR-W2587-02-00
Required: 1
MASTER CYLINDER SUB ASSY
Supersedes: 3YX-W2587-00-00
No longer availableSearch Nationwide Inventory
$327.59
You save $36.40
-10%
2
Yamaha Motors
Master Cylinder Kit3YX-W0041-50-00
Required: 1
. CYLINDER KIT, MASTER
No longer availableSearch Nationwide Inventory
$64.79
You save $7.20
-10%
3
Yamaha Motors
DIAPHRAGM RESERVOR3YX-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$24.29
You save $2.70
-10%
4
Yamaha Motors
Reservoir Cap4TX-25852-01-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3YX-25852-00-00
$32.39
You save $3.60
-10%
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.67
You save $0.19
-10%
6
Yamaha Motors
STOP SWITCH ASSEMBLY4BH-83980-00-00
Required: 1
. FRONT STOP SWITCH ASSY
Supersedes: 3YX-83980-00-00
$38.69
You save $4.30
-10%
7
Yamaha Motors
98507-04012-0098506-04012-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
8
Yamaha Motors
Washer92907-04600-00
Required: 2
. WASHER, PLATE
Supersedes: 92906-04600-00
$1.67
You save $0.19
-10%
9
Yamaha Motors
Push Rod3YX-25880-00-00
Required: 1
. PUSH ROD COMP.
$35.09
You save $3.90
-15%
10
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
. NUT
Supersedes: 95303-06600-00
In stock
5+ in stock
$4.17
You save $0.74
-10%
11
Yamaha Motors
Master Cylinder Screw Kit3YX-W0091-02-00
Required: 1
. SCREW KIT, MASTERCYLINDER
Supersedes: 3YX-W0091-01-00
$77.39
You save $8.60
-15%
12
Yamaha Motors
Circle Clip99001-08600-00
Required: 1
. CIRCLIP
Supersedes: 3YX-25866-00-00
In stock
Only 2 remaining
$8.07
You save $1.42
-10%
$11.69
You save $1.30
-10%
14
Yamaha Motors
Master Cylinder Bracket3YX-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$35.09
You save $3.90
15
Yamaha Motors
HOLDER, LEVER UPPER 23YX-82922-00
Required: 1
HOLDER, LEVER UPPER 2
Price unavailable
-10%
$4.94
You save $0.55
-10%
17
Yamaha Motors
Caliper Sleeve3YX-25838-00-00
Required: 1
SLEEVE, CALIPER
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
18
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95616-06100-00
$3.60
-10%
19
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06030-00
$3.87
You save $0.43
-10%
20
Yamaha Motors
CLAMP90464-30014-00
Required: 2
BAND, SWITCH CORD
Supersedes: 437-83936-01-00
$5.04
You save $0.56
-10%
21
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
Supersedes: 4L0-25862-00-00
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
22
Yamaha Motors
Brake Hose99999-02737-00
Required: 1
HOSE, BRAKE 1
Supersedes: 4BP-25872-00-00
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
23
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10096-00
$11.24
You save $1.25
-20%
24
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
