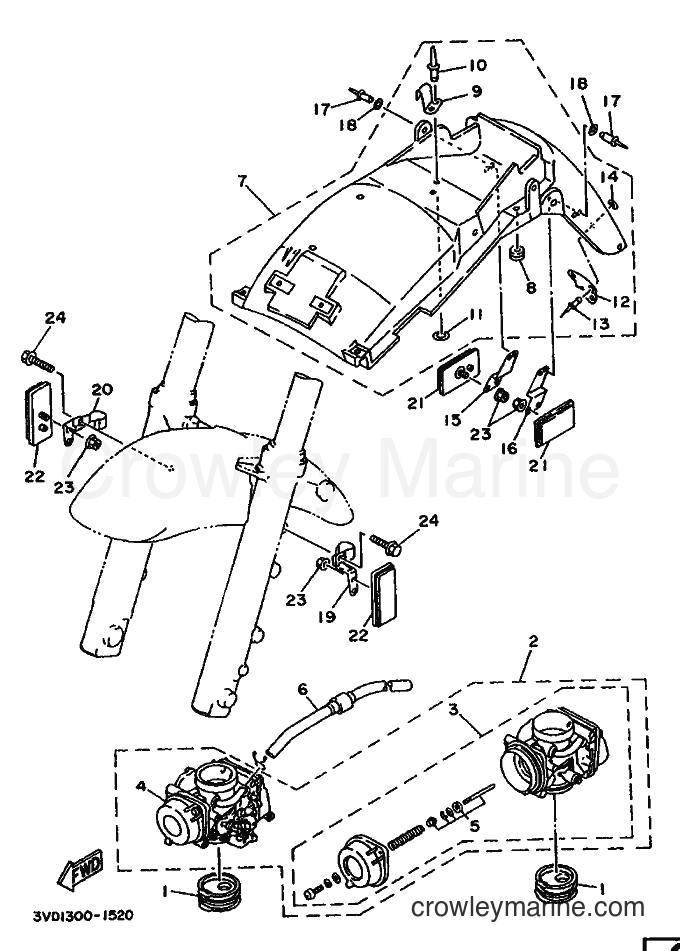

1993 Street Bike TDM850 - TDM850 (4CN3) [999] ALTERNATE diagram
![Yamaha Motors TDM850 (4CN3) [999] - ALTERNATE](https://cdn.crowleymarine.com/yamaha/qePLgJPk.png)
1
Yamaha Motors
JOINT, CARBURETOR 33TD-13597-00
Required: 2
JOINT, CARBURETOR 3
Price unavailable
2
Yamaha Motors
CARBURETOR ASSY4CN-14900-00
Required: 1
CARBURETOR ASSY
Price unavailable
3
Yamaha Motors
. CARBURETOR ASSY 14CN-14901-00
Required: 1
. CARBURETOR ASSY 1
Price unavailable
4
Yamaha Motors
. CARBURETOR ASSY 24CN-14902-00
Required: 1
. CARBURETOR ASSY 2
Price unavailable
5
Yamaha Motors
. . NEEDLE SET4CN-1490J-00
Required: 1
. . NEEDLE SET
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$57.59
You save $6.40
-10%
7
Yamaha Motors
Rear Fender Component3VD-Y2161-01-00
Required: 1
REAR FENDER COMP.
Supersedes: 3VD-Y2161-70-00
No longer availableSearch Nationwide Inventory
$168.29
You save $18.70
-10%
$2.52
You save $0.28
-10%
9
Yamaha Motors
TOOL BAND HOOK3VD-21366-00-00
Required: 1
. HOOK, TOOL BAND
$8.99
You save $1.00
-10%
10
Yamaha Motors
BLIND RIVET90267-40029-00
Required: 2
. RIVET, BLIND
Supersedes: 90267-40073-00
$8.54
You save $0.95
-50%
11
Yamaha Motors
Plain Washer92990-04200-00
Required: 2
. WASHER, PLAIN
In stock
Only 1 remaining
$1.00
You save $1.00
-10%
12
Yamaha Motors
Reflect Bracket3HE-85132-01-00
Required: 1
. BRACKET, REFLECTOR 1
Supersedes: 3HE-85132-00-00
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-10%
13
Yamaha Motors
BLIND RIVET90267-40076-00
Required: 2
. RIVET, BLIND
$8.54
You save $0.95
-10%
14
Yamaha Motors
Plate Washer90201-044H9-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
15
Yamaha Motors
Rear Stay Bracket2LJ-21688-00-00
Required: 1
BRACKET, REAR STAY
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
16
Yamaha Motors
BRACKET REAR STAY22LJ-21689-00-00
Required: 1
BRACKET, REAR STAY 2
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
18
Yamaha Motors
Plate Washer90201-044H9-00
Required: 4
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
19
Yamaha Motors
Brake Hose Holder 23VD-25876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
20
Yamaha Motors
BRAKE HOSE HOLDER3VD-25886-00-00
Required: 1
HOLDER, BRAKE HOSE
No longer availableSearch Nationwide Inventory
$32.39
You save $3.60
-10%
$27.89
You save $3.10
-10%
$27.89
You save $3.10
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
-10%
24
Yamaha Motors
90105-06707-0095023-06016-00
Required: 2
BOLT, FLANGE
Supersedes: 95021-06016-00
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
