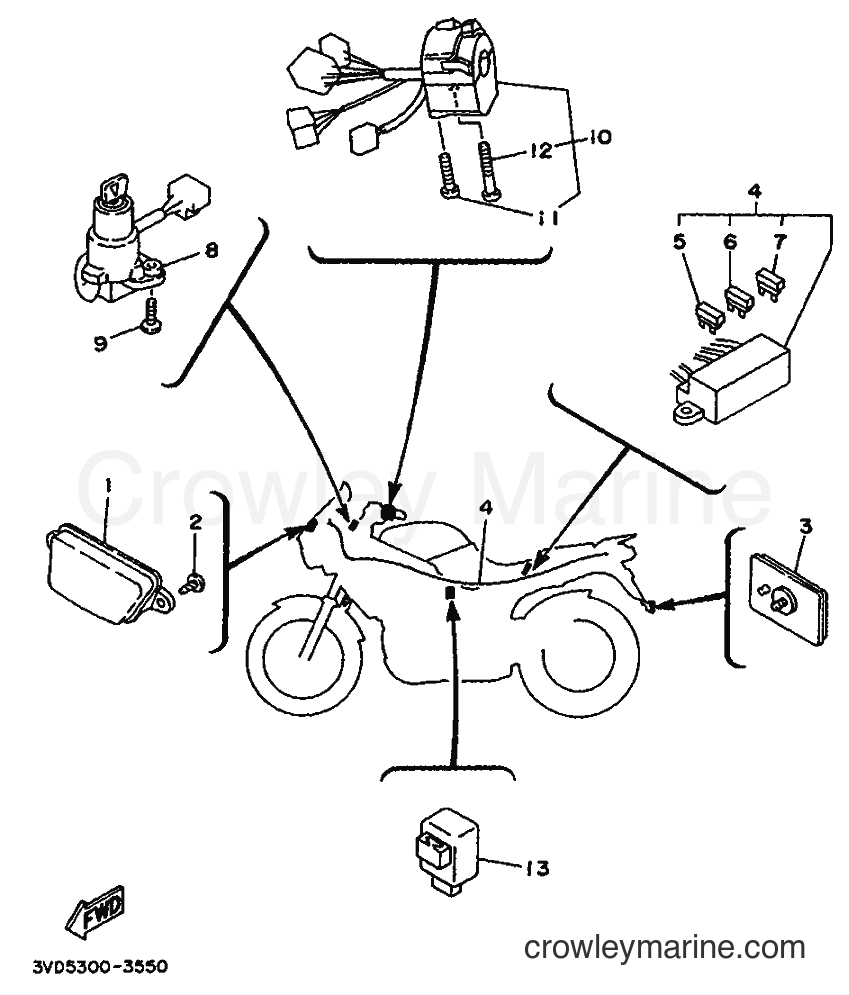

1993 Street Bike TDM850 - TDM850 (4CN3) [999] ALTERNATE FOR ELECTRICAL diagram
![Yamaha Motors TDM850 (4CN3) [999] - ALTERNATE FOR ELECTRICAL](https://cdn.crowleymarine.com/yamaha/XiJVeKnB.png)
1
Yamaha Motors
CAP4DT-84378-00-P2
Required: 1
CAP
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$67.49
You save $7.50
-10%
2
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 90167-05025-00
$4.17
You save $0.46
3
Yamaha Motors
REAR REFLECTOR ASSY4CF-85130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable
4
Yamaha Motors
WIRE HARNESS ASSY4CF-82590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
$7.64
You save $0.85
-10%
6
Yamaha Motors
Fuse (20A-BL)2GV-82151-00-00
Required: 2
. FUSE
Supersedes: 2GH-82151-00-00
$5.39
You save $0.60
-10%
$4.23
You save $0.47
8
Yamaha Motors
MAIN SWITCH STEERING LOCK4EP-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
$9.44
You save $1.05
10
Yamaha Motors
SWITCH, HANDLE 54EP-83969-00
Required: 1
SWITCH, HANDLE 5
Price unavailable
-10%
11
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-05030-00
$10.34
You save $1.15
-10%
12
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98506-05040-00
$8.54
You save $0.95
-10%
13
Yamaha Motors
Flasher Relay Assembly3YA-83350-00-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 3YA-83350-10-00
$98.09
You save $10.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
