1993 Street Bike XJ600S - XJ600S (4EB2) [999] ALTERNATE FOR ENGINE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

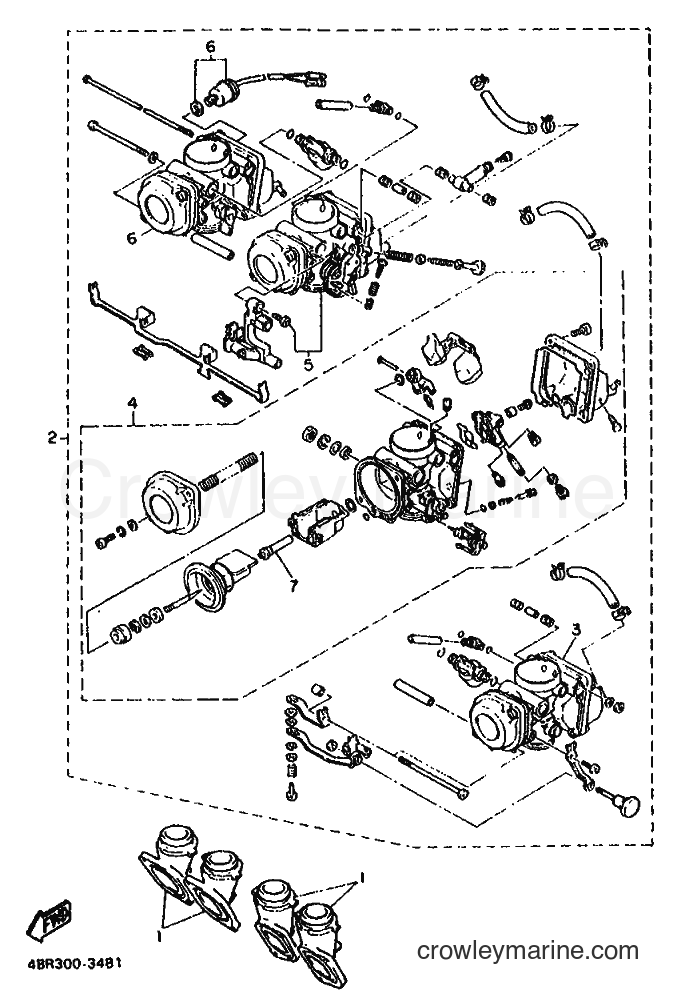

Yamaha Motors XJ600S (4EB2) [999] - ALTERNATE FOR ENGINE
Change View:
JOINT, CARBURETOR 4
1
Yamaha Motors
JOINT, CARBURETOR 44EB-13598-01
Required: 4
JOINT, CARBURETOR 4
Price unavailable
CARBURETOR ASSY
2
Yamaha Motors
CARBURETOR ASSY4EB-14900-02
Required: 1
CARBURETOR ASSY
Price unavailable
. CARBURETOR ASSY 1
3
Yamaha Motors
. CARBURETOR ASSY 14EB-14901-02
Required: 1
. CARBURETOR ASSY 1
Price unavailable
. CARBURETOR ASSY 2
4
Yamaha Motors
. CARBURETOR ASSY 24EB-14902-02
Required: 1
. CARBURETOR ASSY 2
Price unavailable
. CARBURETOR ASSY 3
5
Yamaha Motors
. CARBURETOR ASSY 34EB-14903-02
Required: 1
. CARBURETOR ASSY 3
Price unavailable
. CARBURETOR ASSY 4
6
Yamaha Motors
. CARBURETOR ASSY 44EB-14904-02
Required: 1
. CARBURETOR ASSY 4
Price unavailable
. . NOZZLE, MAIN
7
Yamaha Motors
. . NOZZLE, MAIN4DS-14141-34
Required: 1
. . NOZZLE, MAIN
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
