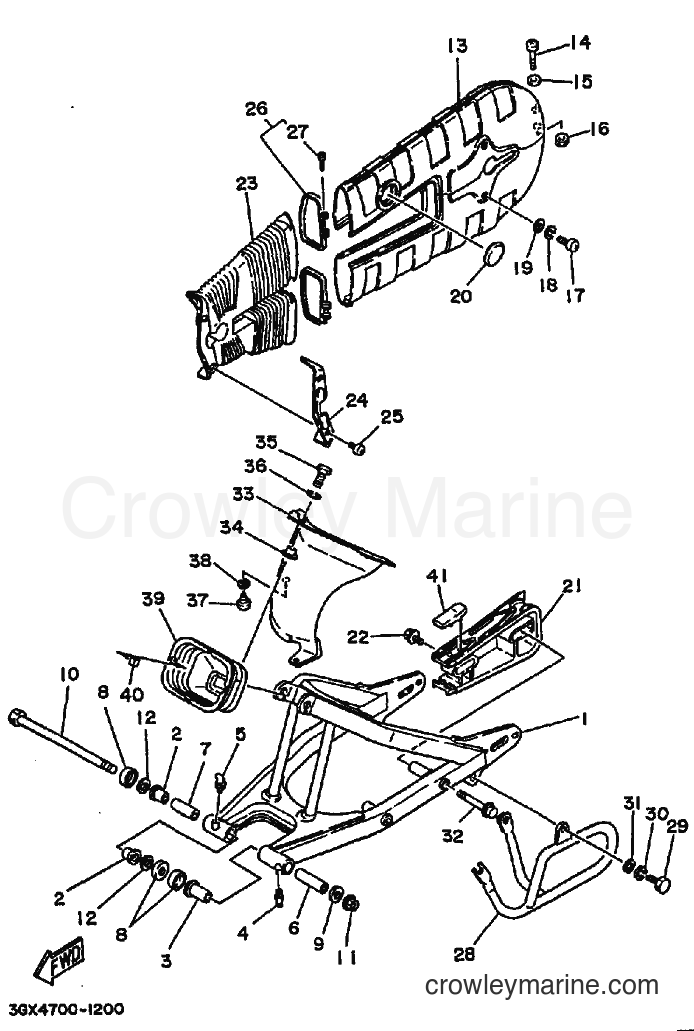

1993 Street Bike AG200E - AG200E (3GX6) [010] REAR ARM diagram
![Yamaha Motors AG200E (3GX6) [010] - REAR ARM](https://cdn.crowleymarine.com/yamaha/lhAU8Dek.png)
1
Yamaha Motors
GEAR ARM COMP36X-22110-00-35
Required: 1
GEAR ARM COMP
Price unavailable
-10%
$29.69
You save $3.30
-10%
3
Yamaha Motors
Special Nylon Bushing90386-18028-00
Required: 1
331 BUSHING (401-2212
$26.99
You save $3.00
-15%
4
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE,GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
5
Yamaha Motors
Grease Nipple93700-06009-00
Required: 1
GREASE NIPPLE (36X)
$11.24
You save $1.25
6
Yamaha Motors
COLLAR,*(CAN USE 90387-124M4)36X-22126-00
Required: 1
COLLAR,*(CAN USE 90387-124M4)
Price unavailable
7
Yamaha Motors
COLLAR, DISTANCE36X-22126-10
Required: 1
COLLAR, DISTANCE
Price unavailable
-10%
$28.79
You save $3.20
-10%
$13.04
You save $1.45
10
Yamaha Motors
SHAFT, PIVOT36X-22141-01
Required: 1
SHAFT, PIVOT
Price unavailable
-10%
11
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 1
P58 NUT, SELF LOCKING (1M
$9.44
You save $1.05
-10%
$7.64
You save $0.85
13
Yamaha Motors
CHAIN CASE ASSY36X-22310-00-35
Required: 1
CHAIN CASE ASSY
Price unavailable
-10%
14
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 1
SCREW PAN HEAD J
Supersedes: 98503-06045-00
$5.84
You save $0.65
-15%
15
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
P61 WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
16
Yamaha Motors
U-flange Nut95601-06200-00
Required: 1
NUT,SELF-LOCKING
No longer availableSearch Nationwide Inventory
$2.79
You save $0.31
-10%
17
Yamaha Motors
98580-06016-0098502-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06016-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-15%
18
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
C62 WASHER,SPRING P58
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
P61 WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
$7.64
You save $0.85
21
Yamaha Motors
SEAL 136X-22358-00
Required: 1
SEAL 1
Price unavailable
-10%
22
Yamaha Motors
Bolt With Washer90119-06074-00
Required: 1
BOLT, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.45
You save $0.05
23
Yamaha Motors
COVER, DUST36X-22325-00
Required: 1
COVER, DUST
Price unavailable
24
Yamaha Motors
STAY, DUST COVER36X-22324-00
Required: 1
STAY, DUST COVER
Price unavailable
-50%
25
Yamaha Motors
Pan Head Screw98507-05008-00
Required: 2
P57 SCREW, PAN HEAD A77
Supersedes: 98501-05008-00
In stock
Only 1 remaining
$1.92
You save $1.92
26
Yamaha Motors
STAY, CHAIN CASE 336X-22323-00
Required: 2
STAY, CHAIN CASE 3
Price unavailable
-10%
27
Yamaha Motors
Pan Head Screw98517-04030-00
Required: 1
SCREW, PAN HEAD (53Y)
Supersedes: 98506-04030-00
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
28
Yamaha Motors
GUARD, CHAIN36X-22318-00
Required: 1
GUARD, CHAIN
Price unavailable
-10%
29
Yamaha Motors
Bolt97013-08012-00
Required: 2
446 BOLT
Supersedes: 97313-08012-00
$3.19
You save $0.35
-15%
30
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING P97
In stock
5+ in stock
$4.76
You save $0.84
-15%
31
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
P58 WASHER, PLATE A19
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
32
Yamaha Motors
Flange Bolt95817-08090-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08090-00
$5.39
You save $0.60
33
Yamaha Motors
MUD GUARD 136X-22327-00
Required: 1
MUD GUARD 1
Price unavailable
-10%
$9.44
You save $1.05
-10%
35
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 1
P53 BOLT
Supersedes: 97002-06016-00
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-15%
36
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
C62 WASHER,SPRING P58
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
37
Yamaha Motors
Tapping Screw97780-50612-00
Required: 2
446 SCREW, TAPPING P57
Supersedes: 97780-50512-00
$4.05
You save $0.45
-10%
38
Yamaha Motors
Plate Washer90201-05032-00
Required: 2
WSHR PLATE 8038352400
$8.54
You save $0.95
39
Yamaha Motors
BOOT, RUBBER36X-22189-00
Required: 1
BOOT, RUBBER
Price unavailable
40
Yamaha Motors
CLIP (36X)90468-06134
Required: 4
CLIP (36X)
Price unavailable
41
Yamaha Motors
SEAL, GUARD36X-22151-00
Required: 1
SEAL, GUARD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
