1993 Street Bike AG200E - AG200E (3GX6) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

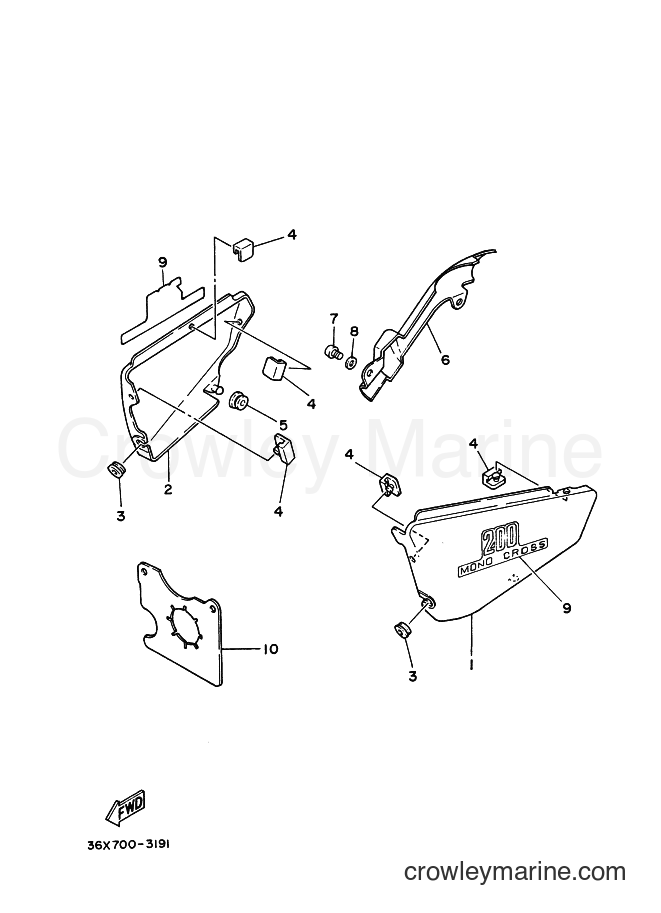

Yamaha Motors AG200E (3GX6) [010] - SIDE COVER

Change View:

Yamaha Motors

COVER SIDE 1 BEIGE36X-21711-10

Required: 1

COVER SIDE 1 BEIGE

Price unavailable

Yamaha Motors

COVER SIDE 2 BEIGE36X-21721-10

Required: 1

COVER SIDE 2 BEIGE

Price unavailable

-10%

Yamaha Motors

GROMMET, WATER TUBE (UPPER)90480-12320-00

Required: 3

GROMMET (12T)

~~$9.49~~

$8.54

You save $0.95

More details

Yamaha Motors

DAMPER3M7-21746-00

Required: 5

DAMPER

Price unavailable

Yamaha Motors

S/S 333 GROMMET 3712174000090480-01141

Required: 1

S/S 333 GROMMET 37121740000

Price unavailable

Yamaha Motors

PANEL 136X-2172A-00

Required: 1

PANEL 1

Price unavailable

-10%

Yamaha Motors

Screw98517-06012-00

Required: 2

P58 SCREW, PAN HEAD

Supersedes: 92501-06012-00

~~$4.10~~

$3.69

You save $0.41

More details

-15%

Yamaha Motors

Plate Washer92990-06600-00

Required: 2

WASHER, PLATE P66

In stock

5+ in stock

~~$2.95~~

$2.51

You save $0.44

More details

Yamaha Motors

EMBLEM 136X-21781-20

Required: 2

EMBLEM 1

Price unavailable

Yamaha Motors

COVER36X-2177F-00

Required: 1

COVER

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
