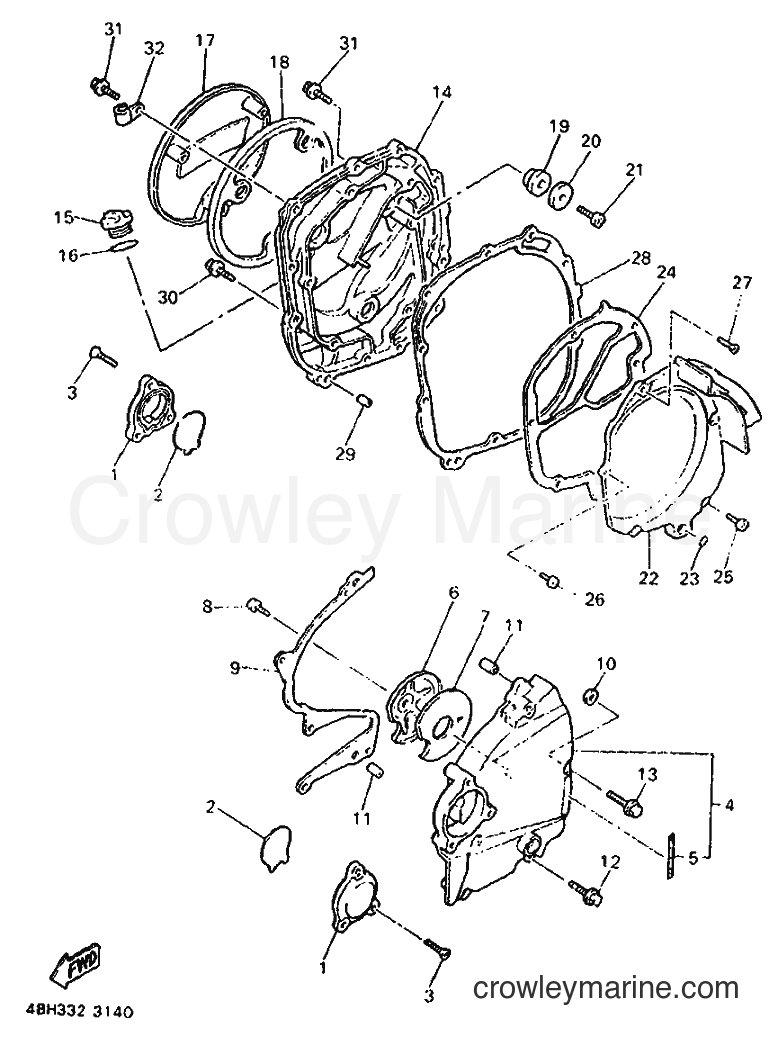

1994 Street Bike GTS1000A - GTS1000A (4FE3) [99A] CRANKCASE COVER 1 diagram
![Yamaha Motors GTS1000A (4FE3) [99A] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/WaHDnpMC.png)
-10%
1
Yamaha Motors
Oil Pump Cover3GM-15416-00-00
Required: 2
COVER, OIL PUMP
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
2
Yamaha Motors
PUMP COVER GASKET1AE-15456-00-00
Required: 2
GASKET, OIL PUMP COVER 1
$5.39
You save $0.60
-10%
3
Yamaha Motors
Flat Head Screw98707-06016-00
Required: 6
SCREW, COUNTERSUNK
Supersedes: 90152-06014-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
CRANKCASE COVER ASSEMBLY3GM-15410-01-00
Required: 1
CRANKCASE COVER ASSY 1
Supersedes: 3GM-15410-00-00
No longer availableSearch Nationwide Inventory
$203.39
You save $22.60
-10%
No longer availableSearch Nationwide Inventory
$3.65
You save $0.40
-10%
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
7
Yamaha Motors
Engine Mount Damper1AE-15316-00-00
Required: 1
DAMPER, ENGINE MOUNT 1
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
8
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 1
BOLT, BUTTON HEAD
Supersedes: 92011-06010-00
$4.94
You save $0.55
-10%
9
Yamaha Motors
Crankcase Gasket4FM-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 4BH-15451-00-00
$22.49
You save $2.50
-10%
10
Yamaha Motors
Tank Cap Gasket4FM-15467-00-00
Required: 1
GASKET
Supersedes: 4CR-15467-00-00
$3.38
You save $0.38
-10%
11
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
PIN, DOWEL
Supersedes: 99510-08012-00
$4.09
You save $0.46
-10%
12
Yamaha Motors
Flange Bolt95024-06040-00
Required: 3
BOLT, FLANGE
Supersedes: 95023-06040-00
$9.44
You save $1.05
-10%
13
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 2
BOLT, FLANGE
Supersedes: 95021-06050-00
$2.48
You save $0.27
-10%
14
Yamaha Motors
Crankcase Cover4BH-15421-00-00
Required: 1
COVER, CRANKCASE 2
No longer availableSearch Nationwide Inventory
$131.39
You save $14.60
-10%
15
Yamaha Motors
PLUG, OIL LEVELBAT-15362-00-00
Required: 1
PLUG, OIL LEVEL
Supersedes: 3F9-15362-00-00
$19.79
You save $2.20
-20%
In stock
Only 1 remaining
$7.59
You save $1.90
-10%
No longer availableSearch Nationwide Inventory
$140.39
You save $15.60
-10%
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
$9.89
You save $1.10
-10%
$9.44
You save $1.05
-20%
21
Yamaha Motors
92580-06010-0097803-06010-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98580-06010-00
In stock
Only 2 remaining
$1.24
You save $0.31
-10%
22
Yamaha Motors
Breather4SV-15346-00-00
Required: 1
BREATHER 1
Supersedes: 3GM-15346-00-00
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
$5.84
You save $0.65
-10%
24
Yamaha Motors
Carburetor Cover Gasket4FM-15463-00-00
Required: 1
GASKET, CARBURETOR COVER 2
Supersedes: 4BH-15463-00-00
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-15%
25
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 4
SCREW, PAN HEAD
In stock
Only 1 remaining
$8.07
You save $1.42
-20%
26
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 90157-06104-00
In stock
Only 5 remaining
$1.88
You save $0.47
-10%
27
Yamaha Motors
Flat Head Screw98707-06016-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90152-06024-00
$8.54
You save $0.95
-10%
28
Yamaha Motors
Crankcase Gasket4FM-15461-00-00
Required: 1
GASKET, CRANKCASE COVER 2
Supersedes: 4BH-15461-00-00
$30.59
You save $3.40
-10%
29
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
PIN, DOWEL
Supersedes: 99510-08012-00
$4.09
You save $0.46
-10%
30
Yamaha Motors
Flange Bolt95024-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06030-00
$8.54
You save $0.95
-10%
31
Yamaha Motors
Flange Bolt95024-06020-00
Required: 9
BOLT, FLANGE
Supersedes: 95023-06020-00
$5.84
You save $0.65
-10%
32
Yamaha Motors
Clamp90465-06376-00
Required: 1
CLAMP
Supersedes: 90465-06038-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
