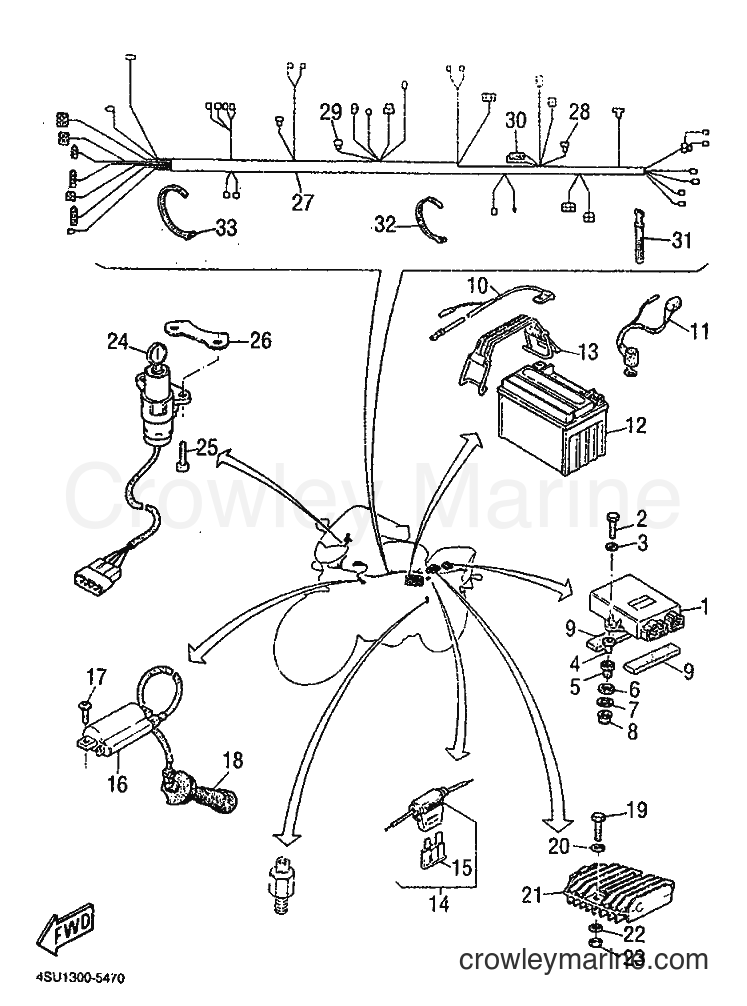

1995 Street Bike SRZ660 - SRZ660 (4SU1) [999] ELECTRICAL 1 diagram
![Yamaha Motors SRZ660 (4SU1) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/lYwRFFOT.png)
1
Yamaha Motors
IGNITOR UNIT ASSY4MY-82305-00
Required: 1
IGNITOR UNIT ASSY
Price unavailable
2
Yamaha Motors
BOLT9701L-06030
Required: 2
BOLT
Price unavailable
3
Yamaha Motors
WASHER9290L-06600
Required: 2
WASHER
Price unavailable
4
Yamaha Motors
COLLAR90387-068H2
Required: 2
COLLAR
Price unavailable
5
Yamaha Motors
DAMPER4GV-H3523-00
Required: 2
DAMPER
Price unavailable
6
Yamaha Motors
DAMPER, TAIL 14GV-H4736-00
Required: 2
DAMPER, TAIL 1
Price unavailable
-10%
7
Yamaha Motors
Plain Washer90201-06086-00
Required: 2
WASHER, PLATE
Supersedes: 90201-060A3-00
$7.64
You save $0.85
8
Yamaha Motors
NUT, SELF-LOCKING90185-06837
Required: 2
NUT, SELF-LOCKING
Price unavailable
9
Yamaha Motors
DAMPER, TAIL 24SU-H4737-00
Required: 2
DAMPER, TAIL 2
Price unavailable
10
Yamaha Motors
WIRE, MINUS LEAD4SU-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
11
Yamaha Motors
WIRE, PLUS LEAD4SU-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
12
Yamaha Motors
BATTERY ASSY4GV-H2100-00
Required: 1
BATTERY ASSY
Price unavailable
13
Yamaha Motors
BAND, BATTERY4LW-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
14
Yamaha Motors
FUSE HOLDER ASSY4SU-H2150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
15
Yamaha Motors
. FUSE4SU-H2151-10
Required: 1
. FUSE
Price unavailable
-10%
16
Yamaha Motors
4DN-82320-00-003TB-82310-00-00
Required: 1
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$135.89
You save $15.10
17
Yamaha Motors
BOLT, BUTTON HEAD9201M-05020
Required: 2
BOLT, BUTTON HEAD
Price unavailable
-10%
$76.49
You save $8.50
19
Yamaha Motors
BOLT9701L-06025
Required: 2
BOLT
Price unavailable
20
Yamaha Motors
WASHER9290L-06600
Required: 2
WASHER
Price unavailable
-10%
21
Yamaha Motors
Rectifier and Regulator4JH-81960-01-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 4JH-81960-00-00
$219.95
You save $25.04
-15%
22
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 9290L-06200-00
In stock
5+ in stock
$0.85
You save $0.15
23
Yamaha Motors
NUT, SELF-LOCKING90185-06837
Required: 2
NUT, SELF-LOCKING
Price unavailable
24
Yamaha Motors
MAIN SWITCH STEERING LOCK4SU-H2501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
25
Yamaha Motors
SCREW, SPECIAL4SU-H252V-00
Required: 2
SCREW, SPECIAL
Price unavailable
26
Yamaha Motors
STAY, MAIN SWITCH4SU-H2514-00
Required: 1
STAY, MAIN SWITCH
Price unavailable
27
Yamaha Motors
WIRE HARNESS ASSY4SU-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
$22.49
You save $2.50
-10%
$17.99
You save $2.00
30
Yamaha Motors
. FUSE4SU-H2151-00
Required: 1
. FUSE
Price unavailable
31
Yamaha Motors
BAND, SWITCH CORD4SU-H3936-00
Required: 2
BAND, SWITCH CORD
Price unavailable
32
Yamaha Motors
BAND, SWITCH CORD4GV-H3936-00
Required: 11
BAND, SWITCH CORD
Price unavailable
33
Yamaha Motors
BAND2AJ-F3192-50
Required: 7
BAND
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
