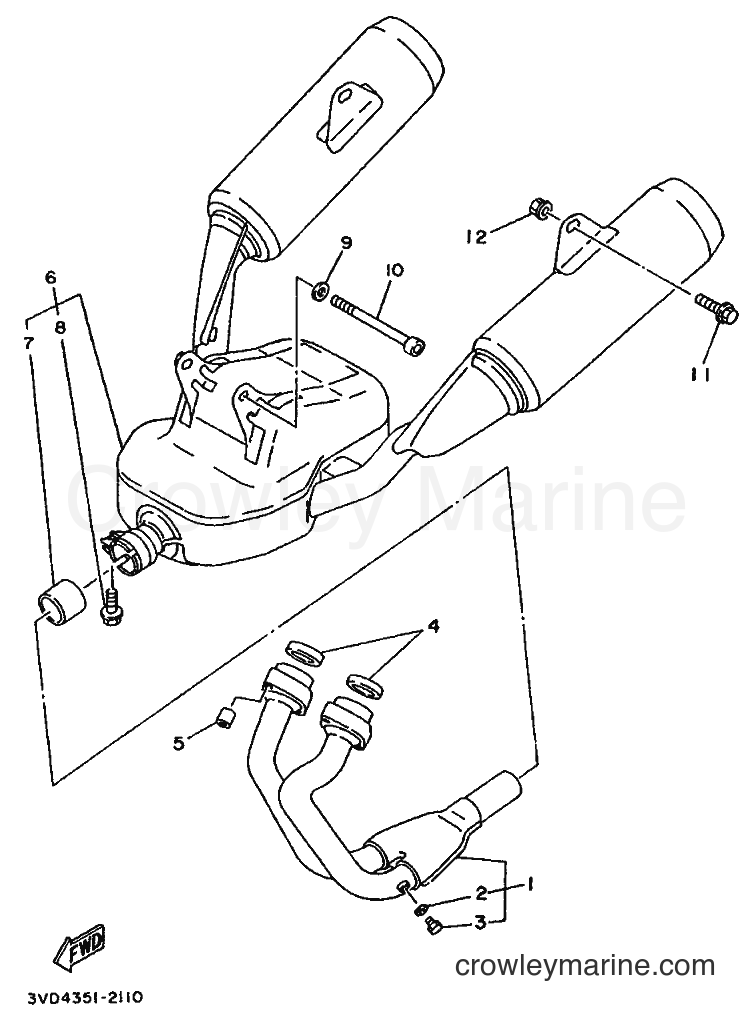

1995 Street Bike TDM850 - TDM850 (3VD9) [99B] EXHAUST diagram
![Yamaha Motors TDM850 (3VD9) [99B] - EXHAUST](https://cdn.crowleymarine.com/yamaha/qJ9kupeX.png)
-10%
1
Yamaha Motors
Exhaust Pipe Comp3VD-14602-01-00
Required: 1
EXHAUST PIPE COMP.
No longer availableSearch Nationwide Inventory
$590.39
You save $65.60
-10%
2
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
. WASHER, PLATE
$0.90
You save $0.10
-10%
$8.54
You save $0.95
-50%
4
Yamaha Motors
Exhaust Pipe Gasket3VD-14613-01-00
Required: 2
GASKET, EXHAUST PIPE
Supersedes: 3VD-14613-00-00
In stock
Only 1 remaining
$6.50
You save $6.50
-10%
No longer availableSearch Nationwide Inventory
$4.32
You save $0.48
-10%
6
Yamaha Motors
Muffler Assembly4TX-14710-41-00
Required: 1
MUFFLER ASSY 1
Supersedes: 3VD-14710-10-00
$1889.99
You save $210.00
-10%
7
Yamaha Motors
Silencer Gasket3VD-14755-00-00
Required: 1
. GASKET, SILENCER
$37.79
You save $4.20
-10%
8
Yamaha Motors
Flange Bolt (4MY)95027-08025-00
Required: 1
. BOLT, FLANGE
$9.44
You save $1.05
-10%
9
Yamaha Motors
Plate Washer90201-08326-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-10%
10
Yamaha Motors
Socket Bolt91317-08110-00
Required: 1
BOLT,HEX.SOCKET HEAD
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
11
Yamaha Motors
Washer Based Bolt90105-10778-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10316-00
$5.80
-50%
In stock
Only 3 remaining
$1.07
You save $1.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
