1995 Street Bike TZ250 - TZ250 (4DP4) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

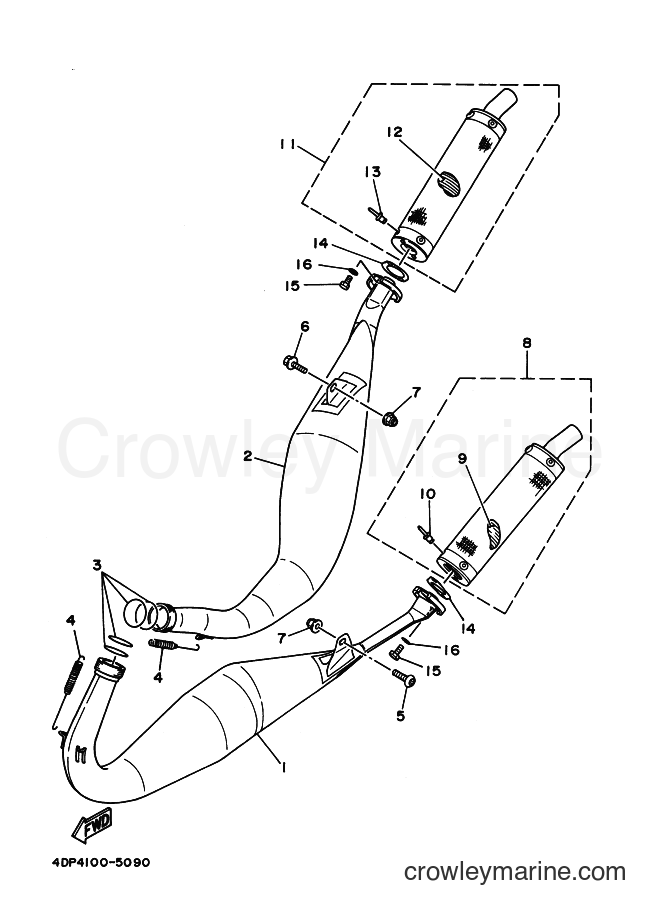

Yamaha Motors TZ250 (4DP4) [010] - EXHAUST
Change View:
EXHAUST PIPE ASSY 1
1
Yamaha Motors
EXHAUST PIPE ASSY 14DP-14610-01
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
EXHAUST PIPE ASSY 2
2
Yamaha Motors
EXHAUST PIPE ASSY 24DP-14620-00
Required: 1
EXHAUST PIPE ASSY 2
Price unavailable
-10%
O-RING (1LX)
3
Yamaha Motors
O-RING (1LX)93210-42728-00
Required: 4
O-RING
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
TENSION SPRING
4
Yamaha Motors
TENSION SPRING90507-20035-00
Required: 4
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Button Bolt
5
Yamaha Motors
Button Bolt92017-08030-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Flange Bolt
6
Yamaha Motors
Flange Bolt95817-08030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Self-Locking Nut
7
Yamaha Motors
Self-Locking Nut90185-08146-00
Required: 2
NUT,SELF-LOCKING
Supersedes: 90185-08097-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
BLIND RIVET
10
Yamaha Motors
BLIND RIVET90267-48147-00
Required: 8
. RIVET, BLIND (4.8X15.8)
Cross Ship
Leaves in 2-5 days
$3.05
$2.75
You save $0.30
More details
-10%
BLIND RIVET
13
Yamaha Motors
BLIND RIVET90267-48147-00
Required: 8
. RIVET, BLIND (4.8X15.8)
Cross Ship
Leaves in 2-5 days
$3.05
$2.75
You save $0.30
More details
-10%
Silencer Gasket
14
Yamaha Motors
Silencer Gasket4DP-14755-00-00
Required: 2
GASKET, SILENCER
Cross Ship
Leaves in 2-5 days
$15.49
$13.94
You save $1.55
More details
-10%
Hexagon Bolt
15
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 4
BOLT, HEXAGON
Supersedes: 97027-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.65
You save $0.41
More details
-10%
Plate Washer
16
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
