1996 Street Bike RX100 - RX100 (36L) [999] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

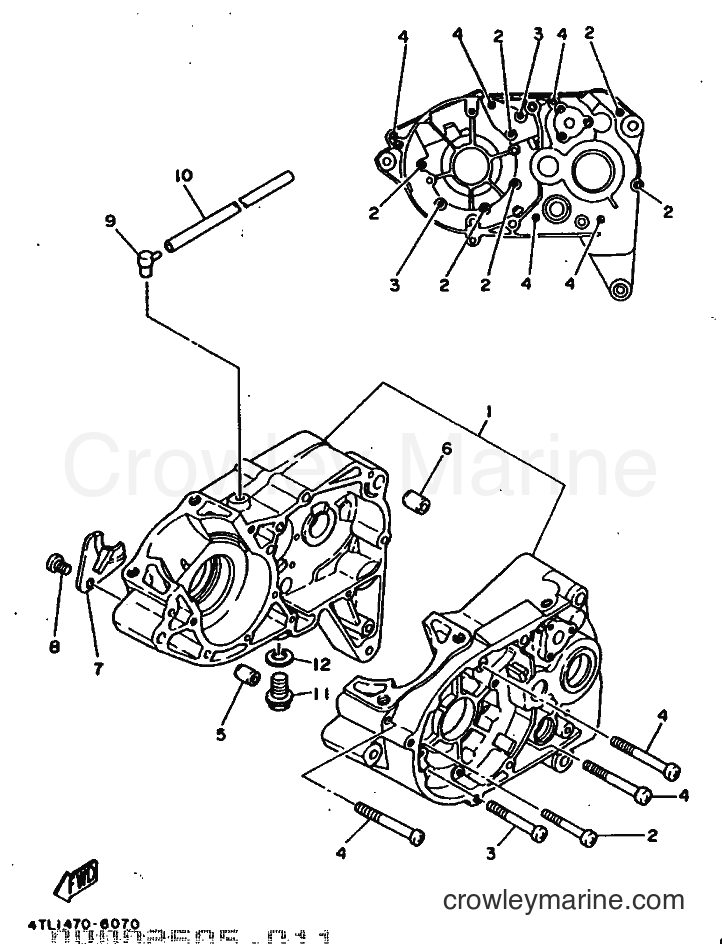

Yamaha Motors RX100 (36L) [999] - CRANKCASE
Change View:
CRANKCASE ASSY 1
1
Yamaha Motors
CRANKCASE ASSY 136L-E5110-00
Required: 1
CRANKCASE ASSY 1
Price unavailable
-10%
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 6
SCREW, PAN HEAD
Cross Ship
Backordered
$6.49
$5.84
You save $0.65
More details
-10%
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98580-06565-00
Required: 5
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
HOLDER
7
Yamaha Motors
HOLDER36L-E5128-00
Required: 1
HOLDER
Price unavailable
-10%
PAN SCREW
8
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-08010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BREATHER
9
Yamaha Motors
BREATHER36L-E5371-00
Required: 1
BREATHER
Price unavailable
HOSE
10
Yamaha Motors
HOSE90446-07228
Required: 1
HOSE
Price unavailable
-10%
Straight Screw Plug
11
Yamaha Motors
Straight Screw Plug90340-12005-00
Required: 1
PLUG, STRAIGHT SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
