1996 Street Bike RX100 - RX100 (36L) [999] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

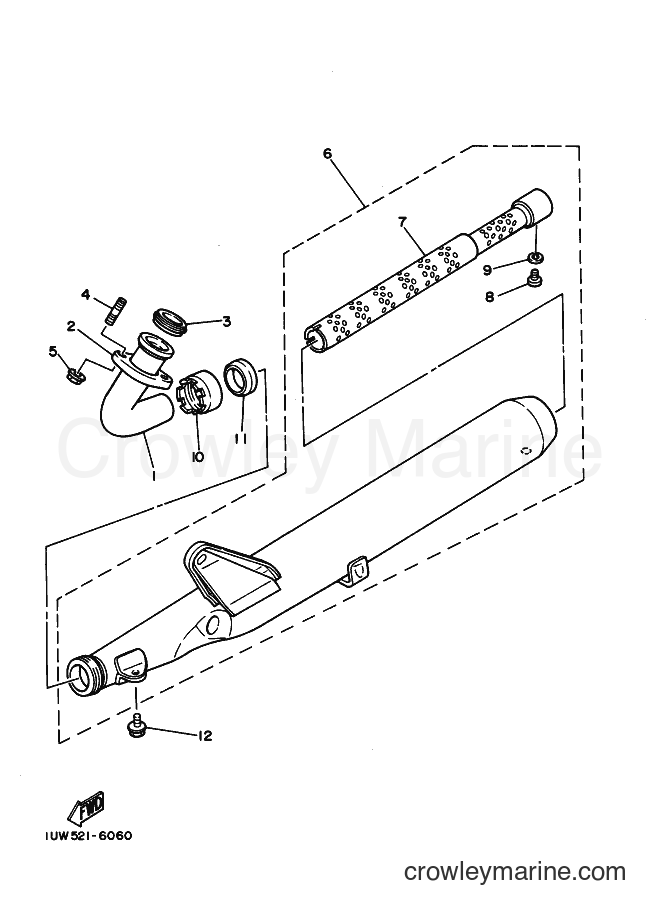

Yamaha Motors RX100 (36L) [999] - EXHAUST
Change View:
PIPE, EXHAUST 1
1
Yamaha Motors
PIPE, EXHAUST 136L-E4611-00
Required: 1
PIPE, EXHAUST 1
Price unavailable
NUT, RING
2
Yamaha Motors
NUT, RING36L-E4612-00
Required: 1
NUT, RING
Price unavailable
GASKET, EXHAUST PIPE
3
Yamaha Motors
GASKET, EXHAUST PIPE36L-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-10%
Stud Bolt
4
Yamaha Motors
Stud Bolt90116-08408-00
Required: 2
BOLT, STUD
Supersedes: 90116-08166-00
Cross Ship
Leaves in 2-5 days
$19.49
$17.54
You save $1.95
More details
NUT
5
Yamaha Motors
NUT90179-08823
Required: 2
NUT
Price unavailable
MUFFLER ASSY 1
6
Yamaha Motors
MUFFLER ASSY 136L-E4710-10
Required: 1
MUFFLER ASSY 1
Price unavailable
. SILENCER, EXHAUST
7
Yamaha Motors
. SILENCER, EXHAUST36L-E4753-00
Required: 1
. SILENCER, EXHAUST
Price unavailable
-10%
Screw
8
Yamaha Motors
Screw98517-06012-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$4.10
$3.69
You save $0.41
More details
NUT, MUFFLER JOINT
10
Yamaha Motors
NUT, MUFFLER JOINT36L-E4713-00
Required: 1
NUT, MUFFLER JOINT
Price unavailable
GASKET, MUFFLER
11
Yamaha Motors
GASKET, MUFFLER36L-E4714-00
Required: 1
GASKET, MUFFLER
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-08016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
