1996 Street Bike RX100 - RX100 (36L) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

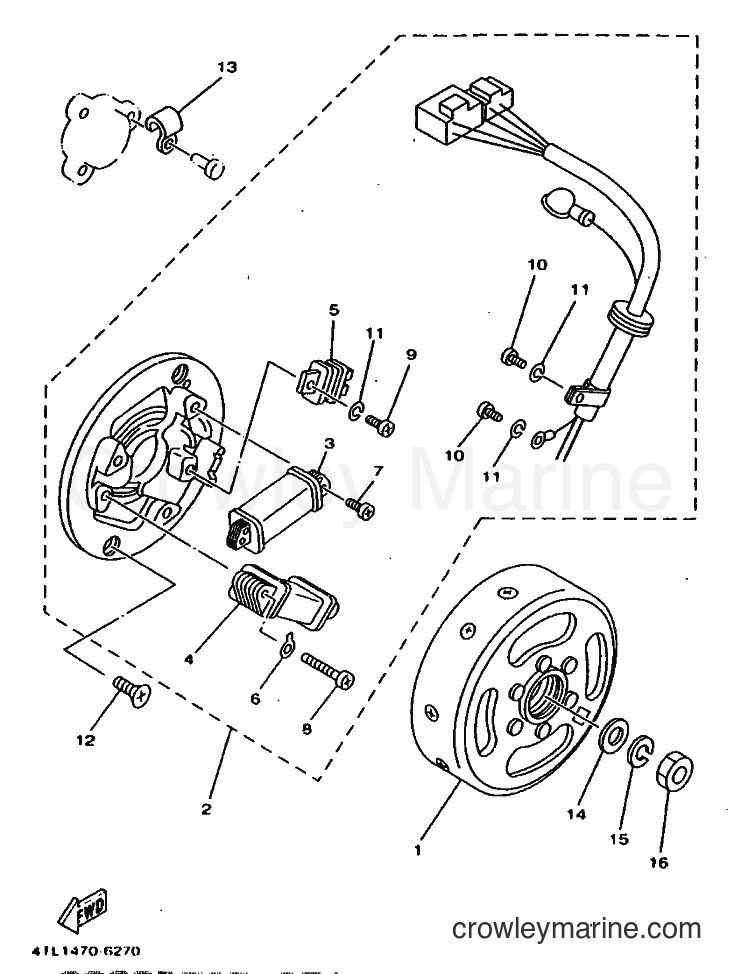

Yamaha Motors RX100 (36L) [999] - GENERATOR
Change View:
ROTOR ASSY
1
Yamaha Motors
ROTOR ASSY36L-H5550-V0
Required: 1
ROTOR ASSY
Price unavailable
ROTOR ASSY
1
Yamaha Motors
ROTOR ASSY36L-H5550-00
Required: 1
ROTOR ASSY
Price unavailable
BASE ASSY
2
Yamaha Motors
BASE ASSY36L-H5560-00
Required: 1
BASE ASSY
Price unavailable
BASE ASSY
2
Yamaha Motors
BASE ASSY36L-H5560-V0
Required: 1
BASE ASSY
Price unavailable
. COIL, CHARGE
3
Yamaha Motors
. COIL, CHARGE36L-H5520-00
Required: 1
. COIL, CHARGE
Price unavailable
COIL, CHARGE
3
Yamaha Motors
COIL, CHARGE36L-H5520-V0
Required: 1
COIL, CHARGE
Price unavailable
. COIL, LIGHTING 1
4
Yamaha Motors
. COIL, LIGHTING 136L-H1313-V0
Required: 1
. COIL, LIGHTING 1
Price unavailable
. COIL, LIGHTING 1
4
Yamaha Motors
. COIL, LIGHTING 136L-H1313-00
Required: 1
. COIL, LIGHTING 1
Price unavailable
. COIL, PULSER
5
Yamaha Motors
. COIL, PULSER36L-H5580-00
Required: 1
. COIL, PULSER
Price unavailable
. COIL, PULSER
5
Yamaha Motors
. COIL, PULSER36L-H5580-V0
Required: 1
. COIL, PULSER
Price unavailable
. TERMINAL, EARTH 2
6
Yamaha Motors
. TERMINAL, EARTH 236L-H5569-V0
Required: 1
. TERMINAL, EARTH 2
Price unavailable
-10%
Screw
7
Yamaha Motors
Screw98517-04012-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$4.20
$3.78
You save $0.42
More details
-10%
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98517-04025-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.30
$2.97
You save $0.33
More details
-10%
Flat Screw
12
Yamaha Motors
Flat Screw98707-06014-00
Required: 2
SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Clamp
13
Yamaha Motors
Clamp90462-05012-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Plate Washer
14
Yamaha Motors
Plate Washer90201-12535-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
WASHER
15
Yamaha Motors
WASHER92907-12100-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Hexagon Nut
16
Yamaha Motors
Hexagon Nut90170-12347-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
