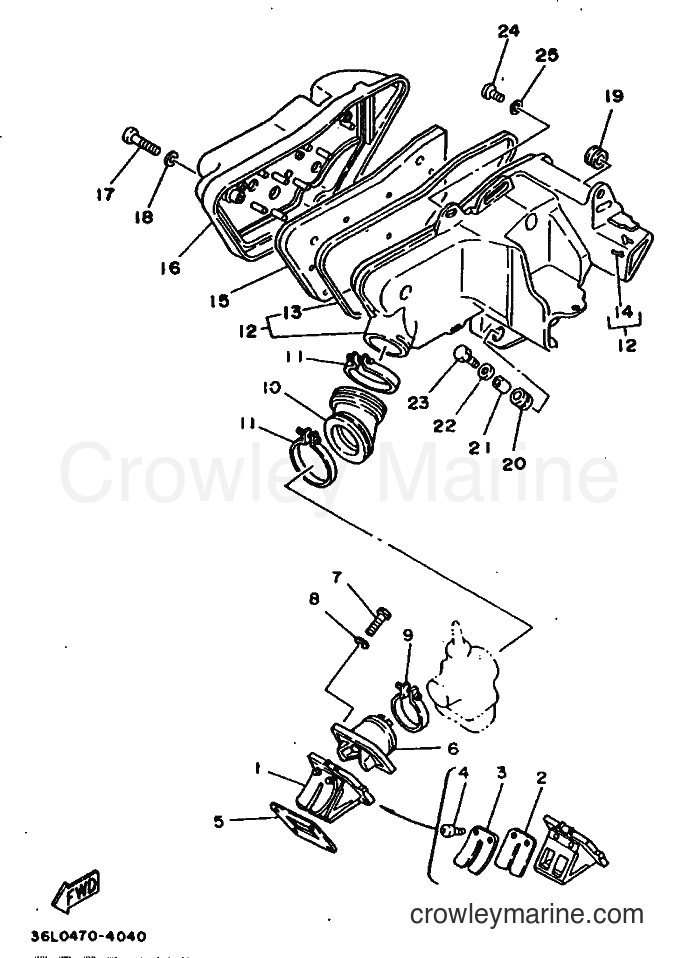

1996 Street Bike RX100 - RX100 (36L) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX100 (36L) [999] - INTAKE
Change View:
REED VALVE ASSY
1
Yamaha Motors
REED VALVE ASSY36L-E3610-00
Required: 1
REED VALVE ASSY
Price unavailable
. REED, VALVE
2
Yamaha Motors
. REED, VALVE36L-E3613-00
Required: 2
. REED, VALVE
Price unavailable
. STOPPER, REED VALVE
3
Yamaha Motors
. STOPPER, REED VALVE36L-E3616-00
Required: 2
. STOPPER, REED VALVE
Price unavailable
-10%
PAN SCREW
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
GASKET, VALVE SEAT
5
Yamaha Motors
GASKET, VALVE SEAT36L-E3621-00
Required: 1
GASKET, VALVE SEAT
Price unavailable
JOINT, CARBURETOR
6
Yamaha Motors
JOINT, CARBURETOR36L-E3565-00
Required: 1
JOINT, CARBURETOR
Price unavailable
-10%
Plate Washer
8
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
-10%
Hose Clamp
9
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-43053-00
Cross Ship
Leaves in 2-5 days
$21.99
$19.79
You save $2.20
More details
JOINT, AIR CLEANER 1
10
Yamaha Motors
JOINT, AIR CLEANER 136L-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
-10%
Hose Clamp
11
Yamaha Motors
Hose Clamp90460-49058-00
Required: 2
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
AIR CLEANER CASE ASSY
12
Yamaha Motors
AIR CLEANER CASE ASSY36L-E4401-00
Required: 1
AIR CLEANER CASE ASSY
Price unavailable
. SEAL
13
Yamaha Motors
. SEAL36L-E4476-00
Required: 1
. SEAL
Price unavailable
. CLIP, CAP FITTING
14
Yamaha Motors
. CLIP, CAP FITTING36L-E4424-00
Required: 1
. CLIP, CAP FITTING
Price unavailable
ELEMENT, AIR CLEANER
15
Yamaha Motors
ELEMENT, AIR CLEANER36L-E4451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
CAP ASSY, AIR CLEANER
16
Yamaha Motors
CAP ASSY, AIR CLEANER36L-E4402-00
Required: 1
CAP ASSY, AIR CLEANER
Price unavailable
-10%
Pan Screw
17
Yamaha Motors
Pan Screw98507-06040-00
Required: 3
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.22
$2.90
You save $0.32
More details
-10%
Washer
18
Yamaha Motors
Washer92907-06200-00
Required: 3
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
GROMMET, WATER TUBE (UPPER)
19
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12053-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
GROMMET, WATER TUBE (UPPER)
20
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COLLAR
21
Yamaha Motors
COLLAR90387-09370
Required: 1
COLLAR
Price unavailable
-10%
Pan Head Screw
24
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$3.13
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
