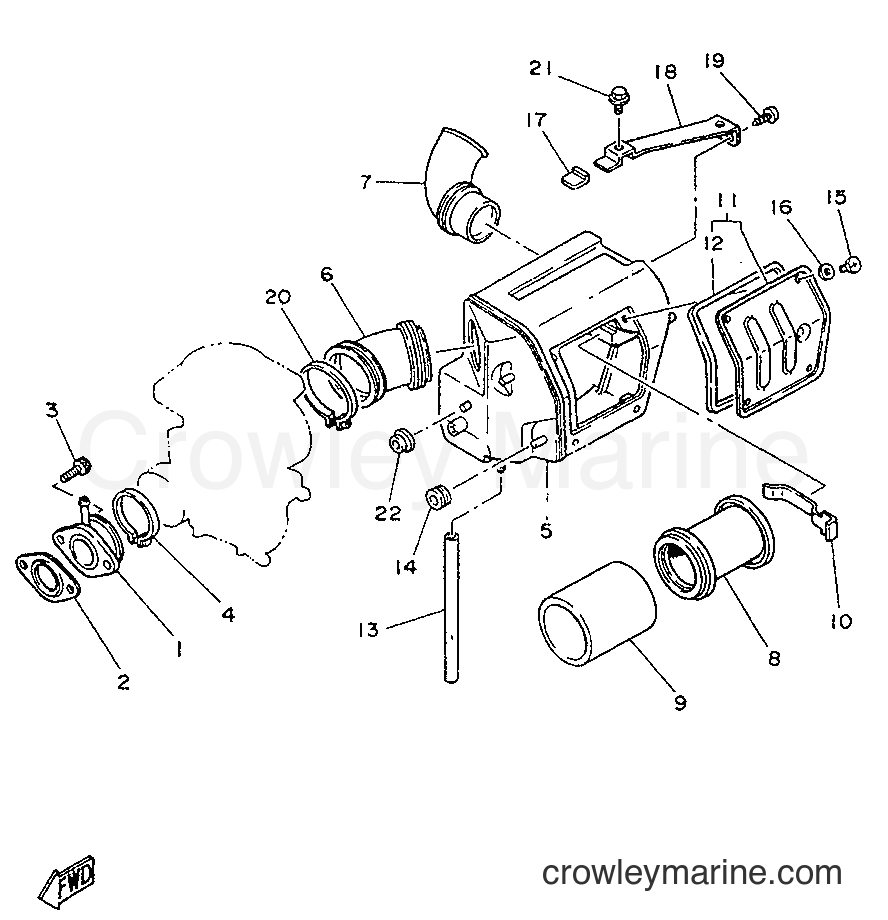

1996 Street Bike SR250 - SR250 (21L2) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR250 (21L2) [999] - INTAKE
Change View:
-10%
CARBURETOR JOINT 1
1
Yamaha Motors
CARBURETOR JOINT 13Y6-13586-00-00
Required: 1
JOINT, CARBURETOR 1
Cross Ship
Leaves in 2-5 days
$45.99
$41.39
You save $4.60
More details
-10%
Manifold Gasket
2
Yamaha Motors
Manifold Gasket3HT-13556-00-00
Required: 1
GASKET, MANIFOLD
Supersedes: 31G-13556-00-00
Cross Ship
Leaves in 2-5 days
$11.99
$10.79
You save $1.20
More details
Bolt
3
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$4.23
More details
-10%
Hose Clamp Assembly
4
Yamaha Motors
Hose Clamp Assembly90450-54008-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-54085-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
AIR CLEANER CASE ASSY
5
Yamaha Motors
AIR CLEANER CASE ASSY21L-E4401-00
Required: 1
AIR CLEANER CASE ASSY
Price unavailable
JOINT, AIR CLEANER 1
6
Yamaha Motors
JOINT, AIR CLEANER 121L-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
DUCT
7
Yamaha Motors
DUCT21L-E4437-00
Required: 1
DUCT
Price unavailable
GUIDE
8
Yamaha Motors
GUIDE21L-E4458-00
Required: 1
GUIDE
Price unavailable
ELEMENT, AIR CLEANER
9
Yamaha Motors
ELEMENT, AIR CLEANER21L-E4451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
PLATE,ELEMENT FITTING
10
Yamaha Motors
PLATE,ELEMENT FITTING21L-E4468-00
Required: 1
PLATE,ELEMENT FITTING
Price unavailable
CAP ASSY, AIR CLEANER
11
Yamaha Motors
CAP ASSY, AIR CLEANER21L-E4402-00
Required: 1
CAP ASSY, AIR CLEANER
Price unavailable
. SEAL
12
Yamaha Motors
. SEAL21L-E4452-00
Required: 1
. SEAL
Price unavailable
-10%
FLEXIBLE TUBE (3NV)
13
Yamaha Motors
FLEXIBLE TUBE (3NV)91A21-07020-00
Required: 1
TUBE, FLEXIBLE VINYL
Supersedes: 91A20-07018-00
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
GROMMET, WATER TUBE (UPPER)
14
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12053-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-15%
Screw
15
Yamaha Motors
Screw97885-05010-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98501-05010-00
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
-10%
GROMMET, WATER TUBE (UPPER)
17
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-16185-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
STAY 1
18
Yamaha Motors
STAY 121L-E4493-00
Required: 1
STAY 1
Price unavailable
SCREW, TAPPING
19
Yamaha Motors
SCREW, TAPPING97701-40110
Required: 2
SCREW, TAPPING
Price unavailable
-10%
Hose Clamp Assembly
20
Yamaha Motors
Hose Clamp Assembly90450-58002-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-58015-00
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
GROMMET
22
Yamaha Motors
GROMMET90480-01141
Required: 1
GROMMET
Price unavailable
