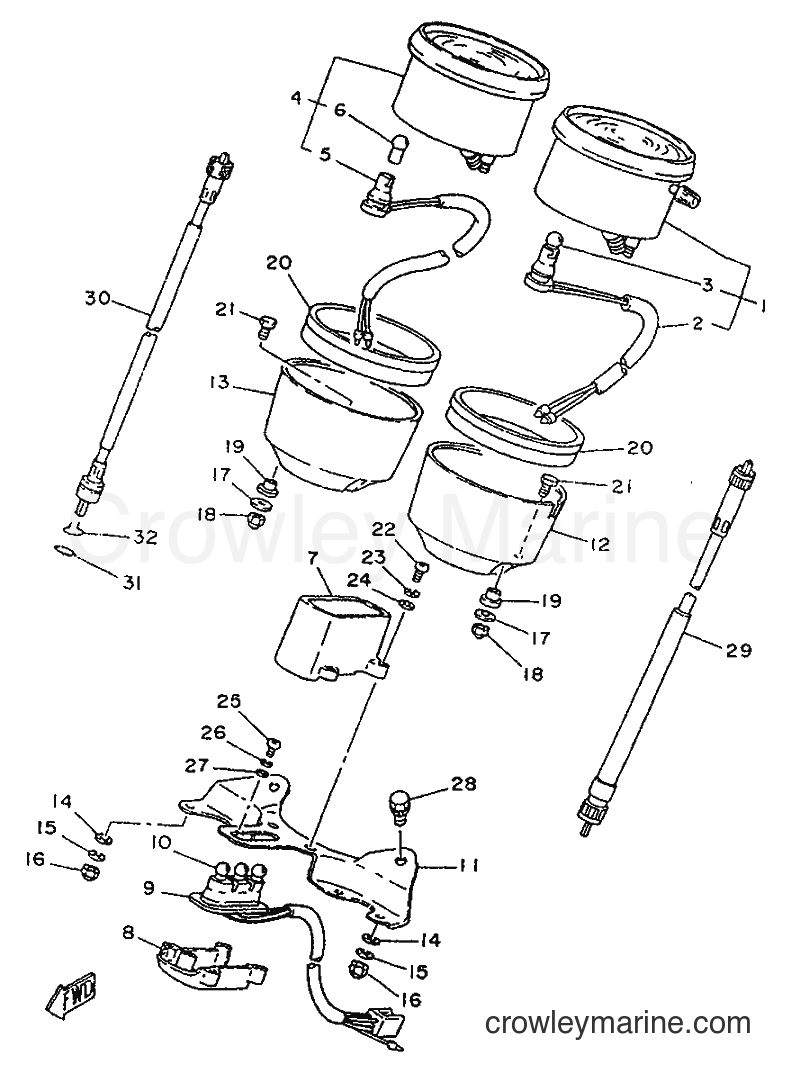

1996 Street Bike SR250 - SR250 (21L2) [999] MEDIDOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR250 (21L2) [999] - MEDIDOR
Change View:
SPEEDOMETER ASSY
1
Yamaha Motors
SPEEDOMETER ASSY21L-H3570-A0
Required: 1
SPEEDOMETER ASSY
Price unavailable
. SOCKET CORD ASSY
2
Yamaha Motors
. SOCKET CORD ASSY21L-H3520-00
Required: 1
. SOCKET CORD ASSY
Price unavailable
. BULB
3
Yamaha Motors
. BULB21L-H3516-00
Required: 1
. BULB
Price unavailable
TACHOMETER ASSY
4
Yamaha Motors
TACHOMETER ASSY21L-H3540-A0
Required: 1
TACHOMETER ASSY
Price unavailable
. SOCKET CORD ASSY
5
Yamaha Motors
. SOCKET CORD ASSY21L-H3520-00
Required: 1
. SOCKET CORD ASSY
Price unavailable
. BULB
6
Yamaha Motors
. BULB21L-H3516-00
Required: 1
. BULB
Price unavailable
PILOT BOX, UPPER
7
Yamaha Motors
PILOT BOX, UPPER4G7-83568-00
Required: 1
PILOT BOX, UPPER
Price unavailable
PILOT BOX, LOWER
8
Yamaha Motors
PILOT BOX, LOWER21L-H3569-V0
Required: 1
PILOT BOX, LOWER
Price unavailable
SOCKET CORD ASSY
9
Yamaha Motors
SOCKET CORD ASSY3Y8-83509-00
Required: 1
SOCKET CORD ASSY
Price unavailable
BULB
10
Yamaha Motors
BULB21L-H3516-00
Required: 3
BULB
Price unavailable
BRACKET, METER
11
Yamaha Motors
BRACKET, METER3Y8-83519-00
Required: 1
BRACKET, METER
Price unavailable
-10%
Speedometer Cover
12
Yamaha Motors
Speedometer Cover2J2-83507-00-00
Required: 1
CASE COMP, UNDER
Cross Ship
Leaves in 2-5 days
$60.99
$54.89
You save $6.10
More details
-10%
Tachometer Cover
13
Yamaha Motors
Tachometer Cover2J2-83508-00-00
Required: 1
COVER, TACHOMETER
Cross Ship
Leaves in 2-5 days
$55.99
$50.39
You save $5.60
More details
WASHER, PLATE
17
Yamaha Motors
WASHER, PLATE90201-06200
Required: 4
WASHER, PLATE
Price unavailable
DAMPER
19
Yamaha Motors
DAMPER21L-H3523-V0
Required: 4
DAMPER
Price unavailable
-10%
DAMPER 2
20
Yamaha Motors
DAMPER 23H3-83513-00-00
Required: 2
DAMPER
Cross Ship
Leaves in 2-5 days
$48.99
$44.09
You save $4.90
More details
BOLT
21
Yamaha Motors
BOLT21L-H3546-00
Required: 4
BOLT
Price unavailable
-10%
WASHER
23
Yamaha Motors
WASHER92907-04100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-04100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Washer
24
Yamaha Motors
Washer92907-04600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-04600-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
-10%
Screw
25
Yamaha Motors
Screw98580-04008-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
BOLT, WITH WASHER
28
Yamaha Motors
BOLT, WITH WASHER97506-06412
Required: 2
BOLT, WITH WASHER
Price unavailable
SPEEDOMETER CABLE ASSY
29
Yamaha Motors
SPEEDOMETER CABLE ASSY21L-H3550-A0
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
TACHOMETER CABLE ASSY
30
Yamaha Motors
TACHOMETER CABLE ASSY21L-H3560-00
Required: 1
TACHOMETER CABLE ASSY
Price unavailable
O-RING
31
Yamaha Motors
O-RING93210-14854
Required: 2
O-RING
Price unavailable
RING, STOP
32
Yamaha Motors
RING, STOP5T8-F5137-00
Required: 2
RING, STOP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
