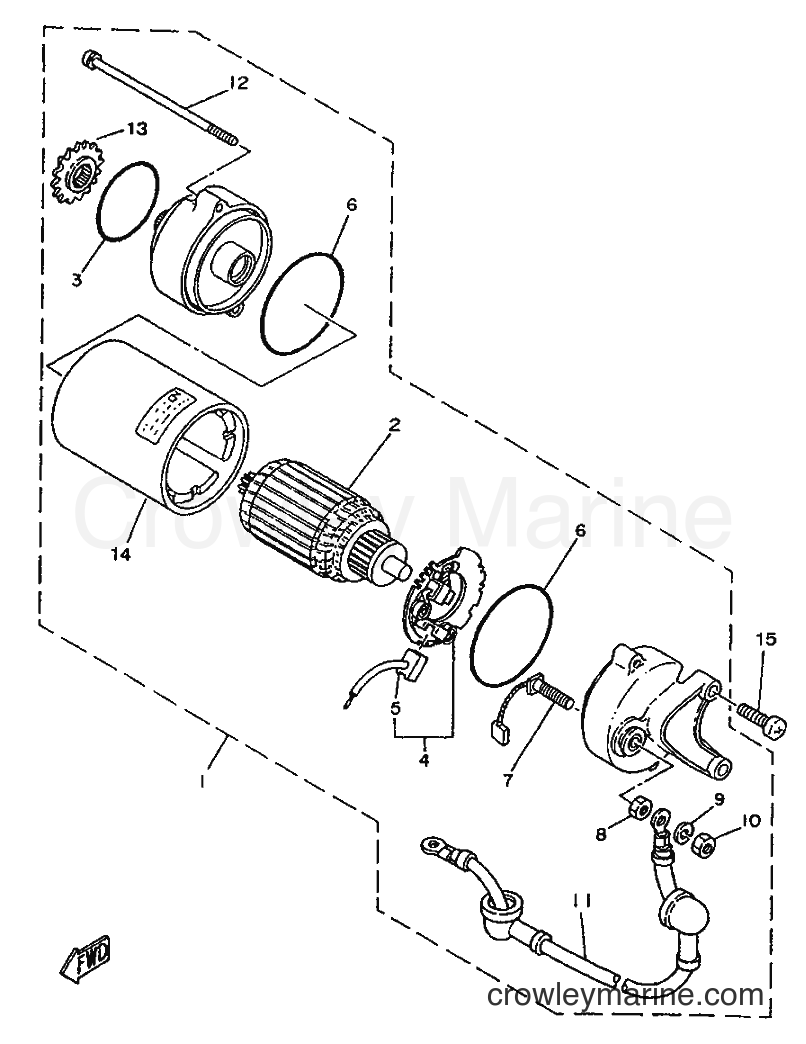

1996 Street Bike SR250SP - SR250SP (3TH5) [999] MOTOR DE ARRANQUE diagram
![Yamaha Motors SR250SP (3TH5) [999] - MOTOR DE ARRANQUE](https://cdn.crowleymarine.com/yamaha/umaLzHYR.png)
-10%
1
Yamaha Motors
STARTING MOTOR UNIT3Y6-81890-00-00
Required: 1
STARTING MOTOR ASSY
Supersedes: 3Y6-81800-52-00
$542.69
You save $60.30
2
Yamaha Motors
Armature Assembly4H7-81850-00-00
Required: 1
. ARMATURE ASSY
No longer availableSearch Nationwide Inventory
$353.25
-10%
$23.39
You save $2.60
-10%
4
Yamaha Motors
BRUSH HOLDER ASSEMBLY4H7-81840-01-00
Required: 1
. BRUSH HOLDER ASSY
$80.99
You save $9.00
-10%
$13.04
You save $1.45
-10%
$23.39
You save $2.60
-10%
7
Yamaha Motors
STAR BRUSH SUBASSEMBLY2JN-81818-50-00
Required: 1
. BRUSH 2
Supersedes: 4H7-81812-01-00
$29.69
You save $3.30
-10%
8
Yamaha Motors
Special Nut4H7-81872-00-00
Required: 1
. NUT, SPECIAL
$5.84
You save $0.65
-15%
9
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
. WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
10
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
. NUT
Supersedes: 95303-06600-00
In stock
5+ in stock
$4.17
You save $0.74
-10%
11
Yamaha Motors
Starter Wire2HR-81815-52-00
Required: 1
. CORD, STARTER MOTOR
Supersedes: 3Y6-81815-00-00
No longer availableSearch Nationwide Inventory
$107.99
You save $12.00
-10%
$12.14
You save $1.35
-10%
13
Yamaha Motors
STARTING MOTOR GEAR3Y6-15511-00-00
Required: 1
. GEAR, STARTING MOTOR
No longer availableSearch Nationwide Inventory
$39.84
You save $4.43
14
Yamaha Motors
. STATOR ASSY4H7-81810-02
Required: 1
. STATOR ASSY
Price unavailable
-10%
15
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06025-00
$3.65
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
