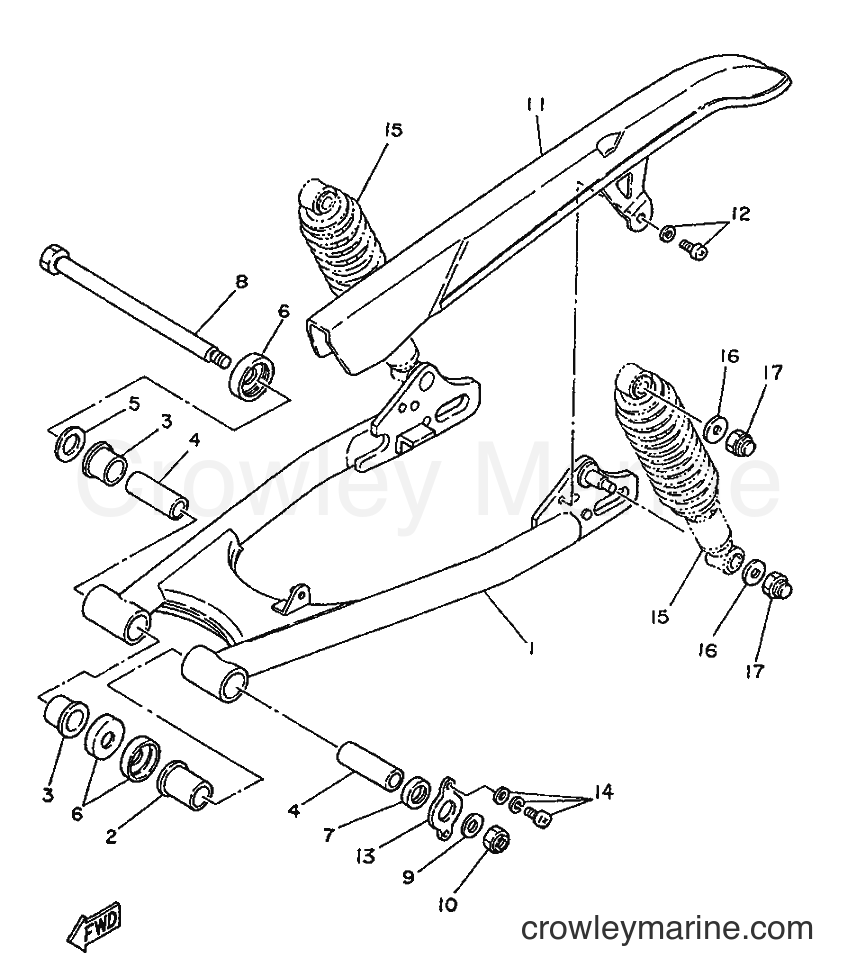

1996 Street Bike SR250SP - SR250SP (3TH5) [999] REAR ARM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR250SP (3TH5) [999] - REAR ARM
Change View:
REAR ARM COMP.
1
Yamaha Motors
REAR ARM COMP.21L-F2110-01-33
Required: 1
REAR ARM COMP.
Price unavailable
REAR ARM COMP.
1
Yamaha Motors
REAR ARM COMP.21L-F2110-01-3C
Required: 1
REAR ARM COMP.
Price unavailable
-10%
BUSH
2
Yamaha Motors
BUSH3Y1-22184-01-00
Required: 1
BUSH
Cross Ship
Leaves in 2-5 days
$42.99
$38.69
You save $4.30
More details
-10%
Bushing 1
3
Yamaha Motors
Bushing 13Y1-22123-01-00
Required: 2
BUSH 1
Cross Ship
Leaves in 2-5 days
$25.99
$23.39
You save $2.60
More details
BUSH 2
4
Yamaha Motors
BUSH 221L-F2124-00
Required: 2
BUSH 2
Price unavailable
SHIM
5
Yamaha Motors
SHIM21L-F2127-00
Required: 1
SHIM
Price unavailable
COVER, THRUST 1
6
Yamaha Motors
COVER, THRUST 121L-F2128-00
Required: 3
COVER, THRUST 1
Price unavailable
OIL SEAL
7
Yamaha Motors
OIL SEAL93109-22810
Required: 1
OIL SEAL
Price unavailable
-10%
Pivot Shaft
8
Yamaha Motors
Pivot Shaft2N6-22141-00-00
Required: 1
SHAFT, PIVOT
Cross Ship
Leaves in 2-5 days
$242.99
$218.69
You save $24.30
More details
WASHER, PLATE
9
Yamaha Motors
WASHER, PLATE90201-14819
Required: 1
WASHER, PLATE
Price unavailable
NUT, SELF-LOCKING
10
Yamaha Motors
NUT, SELF-LOCKING90185-14815
Required: 1
NUT, SELF-LOCKING
Price unavailable
CASE, CHAIN
11
Yamaha Motors
CASE, CHAIN21L-F2311-01-98
Required: 1
CASE, CHAIN
Price unavailable
SCREW, PAN HEAD WITH WASHER
12
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97601-06216
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
PLATE
13
Yamaha Motors
PLATE21L-F1329-00
Required: 1
PLATE
Price unavailable
SCREW, PAN HEAD WITH WASHER
14
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97601-06312
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
SHOCK ABSORBER ASSY, REAR
15
Yamaha Motors
SHOCK ABSORBER ASSY, REAR3TH-F2210-20
Required: 2
SHOCK ABSORBER ASSY, REAR
Price unavailable
NUT 1
17
Yamaha Motors
NUT 12JW-F2251-10
Required: 4
NUT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
