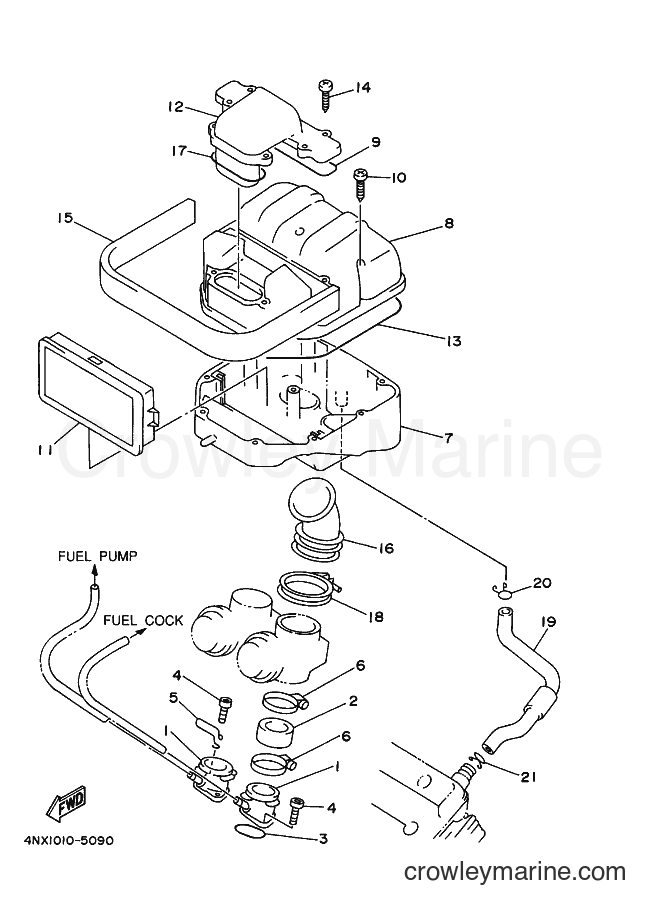

1996 Street Bike TRX850 - TRX850 (4UN1) [130] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TRX850 (4UN1) [130] - INTAKE
Change View:
-10%
Carb Joint 3
2
Yamaha Motors
Carb Joint 33LD-13597-01-00
Required: 2
JOINT, CARBURETOR 3
Cross Ship
Leaves in 2-5 days
$35.99
$32.39
You save $3.60
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-44545-00
Required: 2
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
Bolt
4
Yamaha Motors
Bolt91317-06020-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$4.23
More details
CLAMP
5
Yamaha Motors
CLAMP90462-20222
Required: 1
CLAMP
Price unavailable
-10%
Hose Clamp Assembly
6
Yamaha Motors
Hose Clamp Assembly90450-57016-00
Required: 4
HOSE CLAMP ASSY
Supersedes: 90450-57034-00
Cross Ship
Leaves in 2-5 days
$23.99
$21.59
You save $2.40
More details
CASE, AIR CLEANER 1
7
Yamaha Motors
CASE, AIR CLEANER 14NX-14411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CASE, AIR CLEANER 2
8
Yamaha Motors
CASE, AIR CLEANER 24NX-14421-00
Required: 1
CASE, AIR CLEANER 2
Price unavailable
SEAL
9
Yamaha Motors
SEAL4NX-14457-00
Required: 1
SEAL
Price unavailable
-10%
Truss Screw
10
Yamaha Motors
Truss Screw97707-50525-00
Required: 9
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
ELEMENT, AIR CLEANER
11
Yamaha Motors
ELEMENT, AIR CLEANER4NX-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
CAP, CLEANER CASE 2
12
Yamaha Motors
CAP, CLEANER CASE 24NX-14422-00
Required: 1
CAP, CLEANER CASE 2
Price unavailable
SEAL
13
Yamaha Motors
SEAL4NX-14452-00
Required: 1
SEAL
Price unavailable
-10%
Truss Screw
14
Yamaha Motors
Truss Screw97707-50525-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
DAMPER 1
15
Yamaha Motors
DAMPER 14NX-14425-00
Required: 1
DAMPER 1
Price unavailable
SEAL
17
Yamaha Motors
SEAL4NX-14462-00
Required: 1
SEAL
Price unavailable
-10%
Hose Clamp Assembly
18
Yamaha Motors
Hose Clamp Assembly90450-67002-00
Required: 2
HOSE CLAMP ASSY
Supersedes: 90450-67066-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
PIPE, BREATHER 1
19
Yamaha Motors
PIPE, BREATHER 14NX-11166-00
Required: 12
PIPE, BREATHER 1
Price unavailable
-10%
Scissor Clip
20
Yamaha Motors
Scissor Clip90467-22080-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Scissor Clip
21
Yamaha Motors
Scissor Clip90467-24096-00
Required: 1
CLIP
Supersedes: 90467-24113-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
