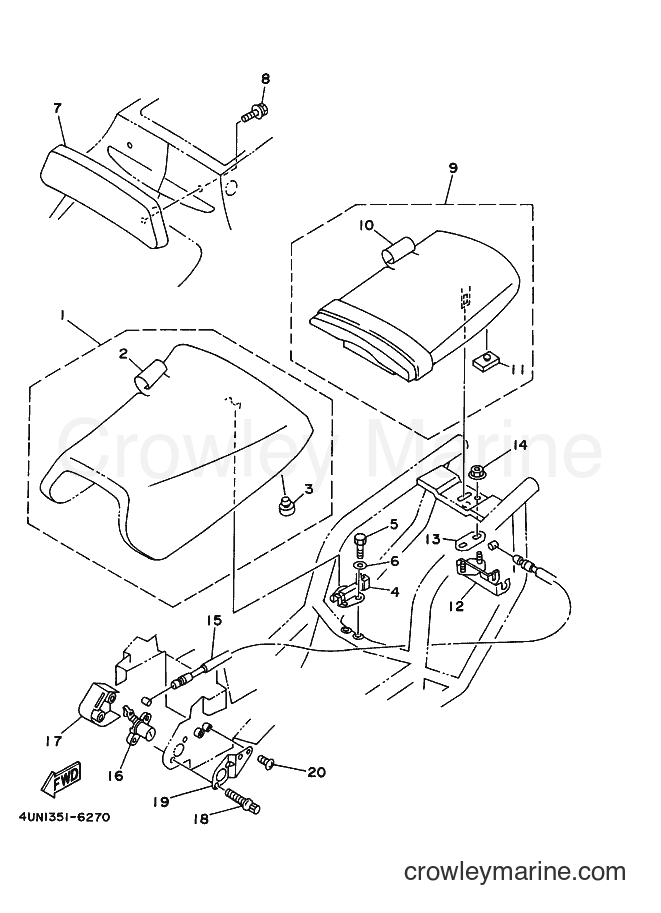

1996 Street Bike TRX850 - TRX850 (4UN1) [060] SEAT diagram
![Yamaha Motors TRX850 (4UN1) [060] - SEAT](https://cdn.crowleymarine.com/yamaha/yabW6b2A.png)
1
Yamaha Motors
SINGLE SEAT ASSY4NX-24710-00
Required: 1
SINGLE SEAT ASSY
Price unavailable
2
Yamaha Motors
. COVER, SINGLE SEAT4NX-24711-00
Required: 1
. COVER, SINGLE SEAT
Price unavailable
-10%
3
Yamaha Motors
Seat Damper4FM-24724-00-00
Required: 4
. DAMPER, SEAT
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
-10%
No longer availableSearch Nationwide Inventory
$62.09
You save $6.90
-10%
$8.54
You save $0.95
-10%
6
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
$0.90
You save $0.10
-10%
No longer availableSearch Nationwide Inventory
$159.39
You save $17.71
-10%
8
Yamaha Motors
Bolt with Washer90119-06117-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06194-00
$4.94
You save $0.55
9
Yamaha Motors
TANDEM SEAT ASSY4NX-24750-10
Required: 1
TANDEM SEAT ASSY
Price unavailable
10
Yamaha Motors
. COVER, TANDEM SEAT4NX-24751-00
Required: 1
. COVER, TANDEM SEAT
Price unavailable
-10%
11
Yamaha Motors
Seat Damper509-24724-00-00
Required: 2
. DAMPER, SEAT
$10.79
You save $1.20
-50%
In stock
Only 1 remaining
$52.99
You save $52.99
-10%
$9.89
You save $1.10
-10%
$0.90
You save $0.10
15
Yamaha Motors
CABLE, SEAT LOCK4NX-2478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
-10%
$82.79
You save $9.20
17
Yamaha Motors
STAY, LOCK4NX-2117K-00
Required: 1
STAY, LOCK
Price unavailable
-10%
$8.54
You save $0.95
19
Yamaha Motors
PLATE, LOCK4NX-2479K-00
Required: 1
PLATE, LOCK
Price unavailable
-10%
20
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
$4.17
You save $0.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
