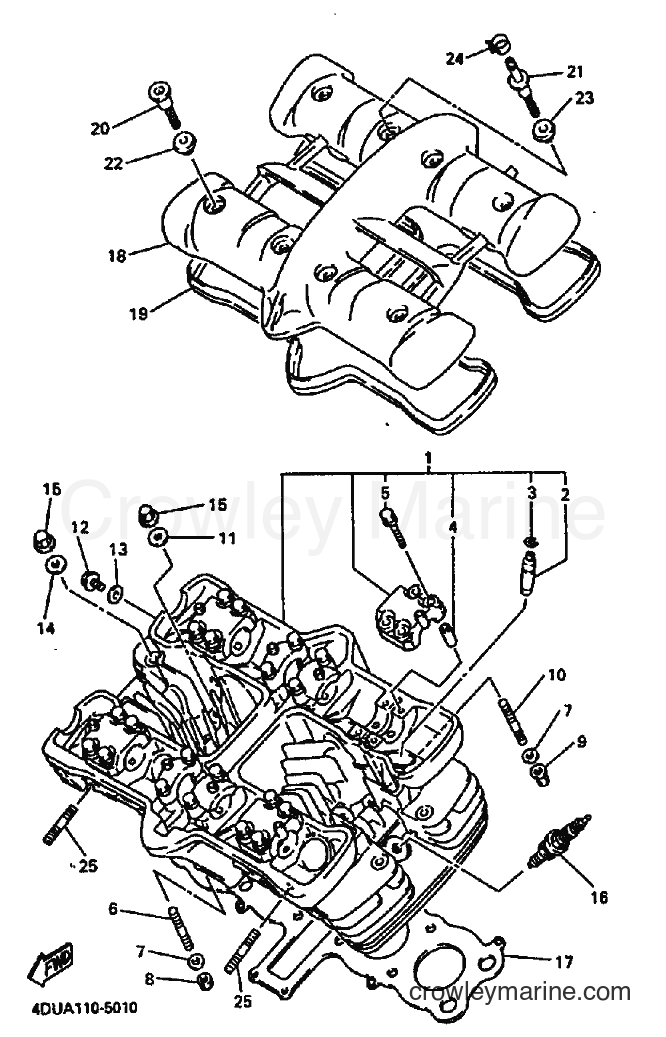

1996 Street Bike XJ600S - XJ600S (4DUF) [010] CYLINDER HEAD diagram
![Yamaha Motors XJ600S (4DUF) [010] - CYLINDER HEAD](https://cdn.crowleymarine.com/yamaha/Rx4ZcS8d.png)
-10%
1
Yamaha Motors
Cylinder Head Assembly4DU-11101-00-00
Required: 1
CYLINDER HEAD ASSY
No longer availableSearch Nationwide Inventory
$1375.19
You save $152.80
-10%
2
Yamaha Motors
INTAKE VALVE GUIDE (O/S)4BR-11133-10-00
Required: 8
GUIDE, INTAKE VALVE
$53.99
You save $6.00
-10%
3
Yamaha Motors
Circlip (Outer)93440-09141-00
Required: 8
P97 CIRCLIP (1AA)
$2.21
You save $0.25
-1%
4
Yamaha Motors
Dowel Pin99510-08016-00
Required: 12
PIN, DOWEL P82
No longer availableSearch Nationwide Inventory
$2.08
-10%
5
Yamaha Motors
Washer Based Bolt90105-06153-00
Required: 24
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$4.00
You save $0.45
-10%
6
Yamaha Motors
BOLT50M-14651-00-00
Required: 2
BOLT, STUD 3
Supersedes: 95617-06618-00
$3.92
You save $0.44
-10%
7
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
P97 WASHER (6TA)
$0.90
You save $0.10
-10%
8
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT(6TA) P82
$3.46
You save $0.38
-50%
In stock
Only 5 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$0.04
You save $0.00
-10%
11
Yamaha Motors
Plate Washer90201-094G1-00
Required: 10
WASHER, PLATE (33N)
$9.44
You save $1.05
-10%
12
Yamaha Motors
90163-06002-0090153-06029-00
Required: 1
SCREW, HEXAGON TSI PE90002
$10.34
You save $1.15
-10%
13
Yamaha Motors
Gasket90430-06014-00
Required: 1
D95 GASKET P97
$8.09
You save $0.90
-10%
14
Yamaha Motors
Plate Washer90201-080L7-00
Required: 2
WASHER, PLATE
$3.65
You save $0.40
-10%
15
Yamaha Motors
Crown Nut90176-08026-00
Required: 12
NUT, CROWN (4G0)
$14.84
You save $1.65
-10%
16
Yamaha Motors
CR8E NGK SPLUG 10CR8-E0000-00-00
Required: 4
NGK SPARK PLUG R CR8E
Supersedes: 94701-00330-00
$9.44
You save $1.05
-10%
16
Yamaha Motors
CR8E NGK SPLUG 10CR8-E0000-00-00
Required: 4
NIPPON DENSO SPK PLUG W24ESR-U
Supersedes: 94701-00329-00
$9.44
You save $1.05
-10%
17
Yamaha Motors
CYLINDER HEAD GASKET4BR-11181-00-00
Required: 1
GASKET, CYLINDER HE
$141.29
You save $15.70
18
Yamaha Motors
COVER ASSY,CYLINDER MR MC920064BR-11190-00
Required: 1
COVER ASSY,CYLINDER MR MC92006
Price unavailable
-10%
18
Yamaha Motors
COVER ASY,CYLINDER4DU-11191-00-00
Required: 1
COVER,CYLINDER HEAD 1
No longer availableSearch Nationwide Inventory
$246.02
You save $27.34
-10%
19
Yamaha Motors
Head Cover Gasket4BR-11193-00-00
Required: 1
GASKET, HEAD COVER
$115.19
You save $12.80
-10%
20
Yamaha Motors
BOLT90109-066F0-00
Required: 7
P97 BOLT TSI MC00492
$8.54
You save $0.95
21
Yamaha Motors
BOLT,COVER TSI MC004924BR-1118E-00
Required: 1
BOLT,COVER TSI MC00492
Price unavailable
-10%
22
Yamaha Motors
Rubber Mount5EA-1111G-00-00
Required: 8
GROMMET,GREEN(45MM)MR MC92008
Supersedes: 4BR-1111G-09-00
$26.09
You save $2.90
23
Yamaha Motors
RUBBER,MOUNT 2 TSI MC004924BR-1112G-00
Required: 1
RUBBER,MOUNT 2 TSI MC00492
Price unavailable
-10%
$3.65
You save $0.40
-10%
25
Yamaha Motors
STUD BOLT 395617-08620-00
Required: 8
BOLT, STUD
Supersedes: 90116-08360-00
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
