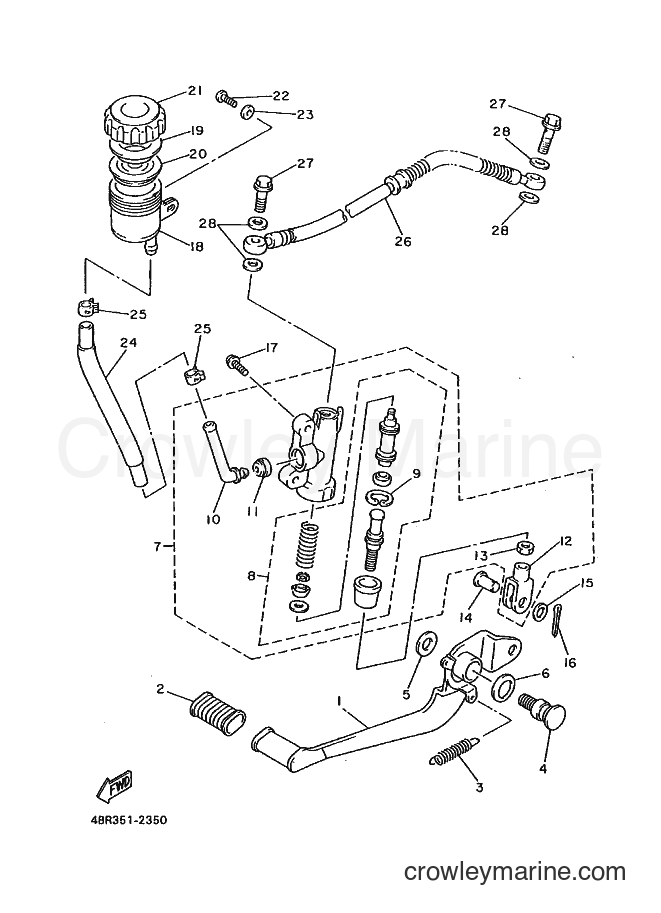

1996 Street Bike XJ600S - XJ600S (4DUF) [010] REAR MASTER CYLINDER diagram
![Yamaha Motors XJ600S (4DUF) [010] - REAR MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/d7VOcLcu.png)
-10%
1
Yamaha Motors
Brake Pedal4EB-27211-00-00
Required: 1
PEDAL,BRAKE
Supersedes: 4BP-27211-10-00
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
2
Yamaha Motors
SHIFT PEDAL COVER22N-18113-00-00
Required: 1
COVER, SHIFT PEDAL
$7.64
You save $0.85
-10%
3
Yamaha Motors
TENSION SPRING90506-20192-00
Required: 1
SPRING, TENSION (2X4)
$7.64
You save $0.85
-10%
4
Yamaha Motors
Shaft4BP-27261-10-00
Required: 1
SHAFT
Supersedes: 4BP-27261-00-00
$16.19
You save $1.80
-10%
5
Yamaha Motors
WASHER92907-10200-00
Required: 1
P82 WASHER, PLAIN
$4.94
You save $0.55
-10%
7
Yamaha Motors
RR. MASTER CYLINDER4BP-2583V-01-00
Required: 1
RR MASTER CYLINDER
Supersedes: 4BP-2583V-00-00
$261.89
You save $29.10
-10%
8
Yamaha Motors
Master Cylinder Kit3TU-W0042-51-00
Required: 1
CYLINDER KIT, MASTE
Supersedes: 4BP-W0042-50-00
$93.59
You save $10.40
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
$17.09
You save $1.90
-10%
11
Yamaha Motors
O-Ring4BP-2585F-01-00
Required: 1
O-RING
Supersedes: 4BP-2585F-00-00
$10.79
You save $1.20
-10%
12
Yamaha Motors
Joint4BP-27222-02-00
Required: 1
JOINT
Supersedes: 4BP-27222-00-00
$29.69
You save $3.30
-15%
13
Yamaha Motors
Nut95380-08700-00
Required: 2
NUT(3BM)
Supersedes: 95304-08700-00
In stock
Only 3 remaining
$3.10
You save $0.55
-10%
14
Yamaha Motors
CLEVIS PIN90240-08124-00
Required: 1
PIN, CLEVIS(2YK)
$7.64
You save $0.85
-10%
16
Yamaha Motors
Cotter Pin91490-20025-00
Required: 1
YBS74-220 PIN, COTTER
Supersedes: 91490-20020-00
$1.79
You save $0.20
-10%
17
Yamaha Motors
Button Bolt92017-08025-00
Required: 2
P97 BOLT, BUTTON HEAD
$8.54
You save $0.95
-10%
18
Yamaha Motors
Reservoir Tank31A-25894-01-00
Required: 1
TANK, RESERVOIR
$19.79
You save $2.20
-10%
19
Yamaha Motors
DIAPRAGHM BUSH2GU-25855-00-00
Required: 1
BUSH, DIAGRAGM
$30.59
You save $3.40
-10%
20
Yamaha Motors
Reservoir Diaphragm360-25854-01-00
Required: 1
DIAPHRAGM, RESERVIOR
Supersedes: 360-25854-00-00
$23.39
You save $2.60
-10%
21
Yamaha Motors
Reservoir Cap2KF-25852-50-00
Required: 1
CAP *EXTRA DMD IS IMPORT ADR
$46.79
You save $5.20
-10%
22
Yamaha Motors
PANHEAD SCREW (3GW)98507-06018-00
Required: 1
SCREW, PAN HEAD(3GW
$7.64
You save $0.85
-10%
23
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
P97 WASHER (6TA)
$0.90
You save $0.10
-10%
24
Yamaha Motors
Reservoir Hose4BP-25895-01-00
Required: 1
HOSE, RESERVOIR
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$68.39
You save $7.60
-10%
27
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
P97 BOLT, UNION (3GM)
$11.24
You save $1.25
-20%
28
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE (481)
In stock
Only 5 remaining
$3.04
You save $0.76
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
