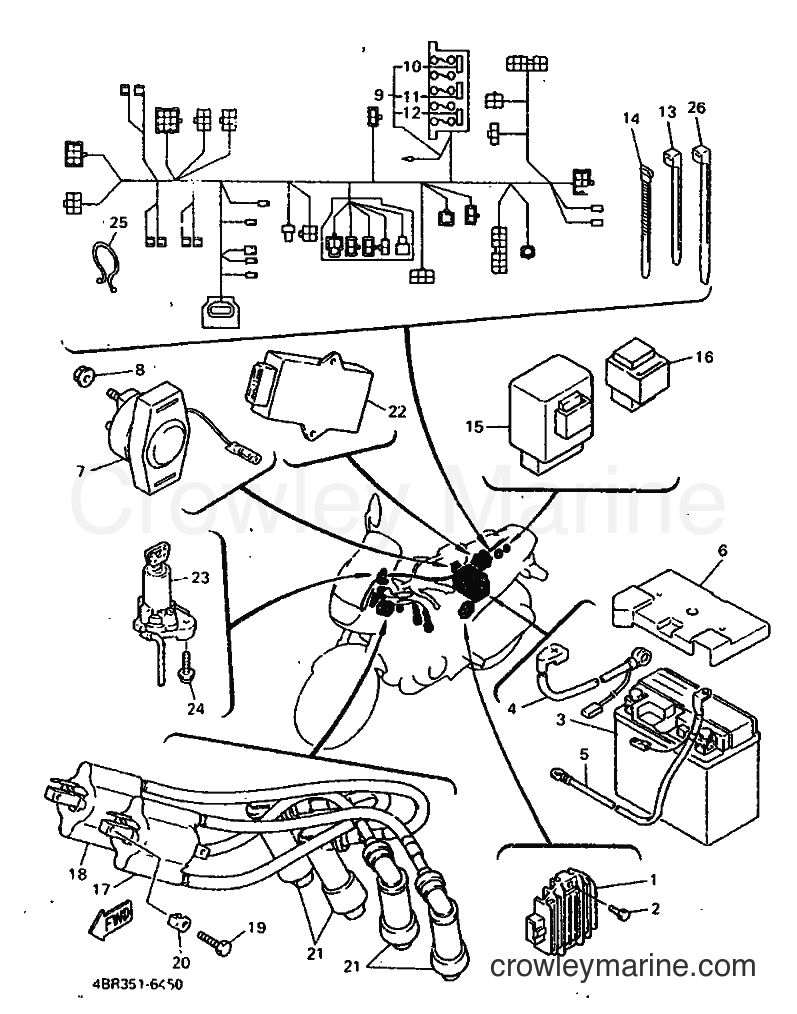

1996 Street Bike XJ600S - XJ600S (4EB6) [999] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XJ600S (4EB6) [999] - ELECTRICAL 1
Change View:
DIODE ASSY
1
Yamaha Motors
DIODE ASSY4HM-81980-00
Required: 1
DIODE ASSY
Price unavailable
Bolt
2
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.23
More details
-10%
YTX9BS YUASA BATTER
3
Yamaha Motors
YTX9BS YUASA BATTERYTX-9BS00-00-00
Required: 1
BATTERY ASSY
Supersedes: 3PK-82100-00-00
Cross Ship
Leaves in 2-5 days
$109.99
$98.99
You save $11.00
More details
WIRE, MINUS LEAD
5
Yamaha Motors
WIRE, MINUS LEAD4BP-32116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
-10%
Starter Switch Assembly
7
Yamaha Motors
Starter Switch Assembly4BP-81940-00-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$109.99
$98.99
You save $11.00
More details
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
WIRE HARNESS ASSY
9
Yamaha Motors
WIRE HARNESS ASSY4EB-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
Fuse (30A-Bl)
10
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
FUSE (15 AMP)
11
Yamaha Motors
FUSE (15 AMP)36Y-82151-00-00
Required: 3
. FUSE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Fuse (10A-Bl)
12
Yamaha Motors
Fuse (10A-Bl)42X-82151-00-00
Required: 2
. FUSE
Cross Ship
Leaves in 2-5 days
$4.70
$4.23
You save $0.47
More details
-10%
Band
13
Yamaha Motors
Band1UA-82591-00-00
Required: 6
BAND
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
RELAY ASSY
16
Yamaha Motors
RELAY ASSY4U8-81950-03-00
Required: 1
RELAY ASSY
Supersedes: 4U8-81950-02-00
Cross Ship
Leaves in 2-5 days
$101.99
$91.79
You save $10.20
More details
-10%
IGNITION COIL ASSY
17
Yamaha Motors
IGNITION COIL ASSY4BR-82310-06-00
Required: 1
IGNITION COIL ASSY
Supersedes: 4BR-82310-00-00
Cross Ship
Leaves in 2-5 days
$89.99
$80.99
You save $9.00
More details
-10%
IGNITION COIL ASSY
18
Yamaha Motors
IGNITION COIL ASSY4BR-82320-06-00
Required: 1
IGNITION COIL ASSY
Supersedes: 4BR-82320-00-00
Cross Ship
Leaves in 2-5 days
$75.99
$68.39
You save $7.60
More details
-10%
IGNITION COIL DAMPER
20
Yamaha Motors
IGNITION COIL DAMPER4BR-82317-00-00
Required: 4
DAMPER, IGNITION COIL
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
PLUG CAP ASSY
21
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 4
PLUG CAP ASSY
Supersedes: 4BP-82370-00-00
Cross Ship
Leaves in 2-5 days
$38.99
$35.09
You save $3.90
More details
IGNITOR UNIT ASSY
22
Yamaha Motors
IGNITOR UNIT ASSY4BR-82305-10
Required: 1
IGNITOR UNIT ASSY
Price unavailable
MAIN SWITCH STEERING LOCK
23
Yamaha Motors
MAIN SWITCH STEERING LOCK4JH-82501-01
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
BOLT
24
Yamaha Motors
BOLT90109-08196-00
Required: 2
BOLT
Supersedes: 90109-080G5-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
