1997 Street Bike XJ900S - XJ900S (4KM5) [040] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

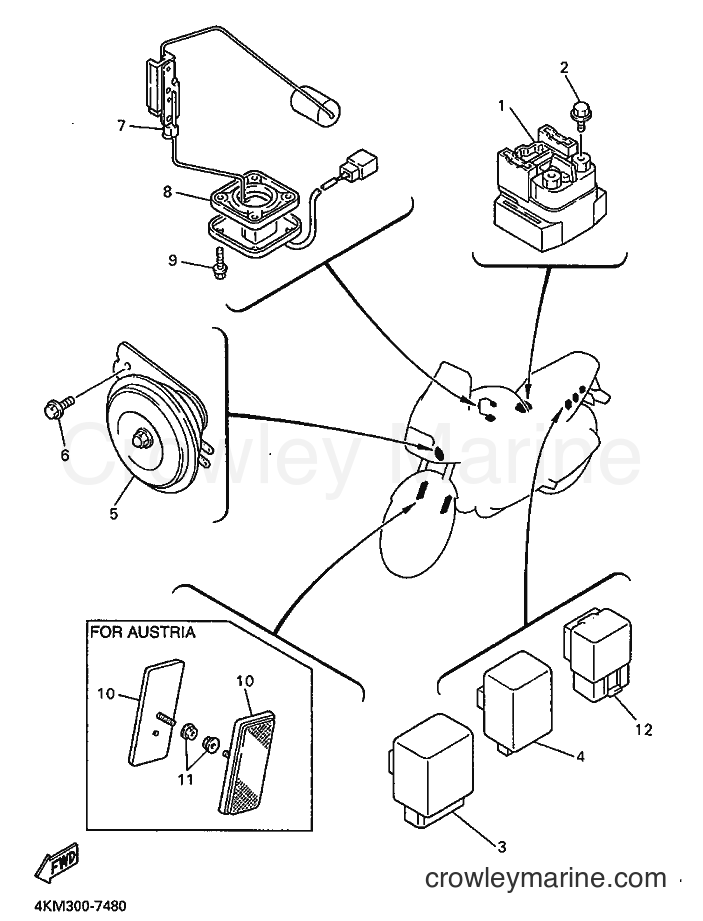

Yamaha Motors XJ900S (4KM5) [040] - ELECTRICAL 1
Change View:
STARTER RELAY ASSY
1
Yamaha Motors
STARTER RELAY ASSY4KM-81940-00
Required: 1
STARTER RELAY ASSY
Price unavailable
-10%
Small Flange Bolt
2
Yamaha Motors
Small Flange Bolt95027-06008-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details
-10%
FLASHER RELAY ASSY
4
Yamaha Motors
FLASHER RELAY ASSY3GM-83350-03-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 3GM-83350-00-00
Cross Ship
Leaves in 2-5 days
$88.99
$80.09
You save $8.90
More details
-10%
Horn
5
Yamaha Motors
Horn2KG-83371-00-00
Required: 1
HORN
Supersedes: 4KM-83371-00-00
Cross Ship
Leaves in 2-5 days
$93.99
$84.59
You save $9.40
More details
-10%
Flange Bolt (4MY)
6
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.78
You save $0.42
More details
SENDER UNIT ASSY, FUEL METER
7
Yamaha Motors
SENDER UNIT ASSY, FUEL METER4KM-85752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
-10%
Sender Unit Gasket
8
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
Cross Ship
Leaves in 2-5 days
$18.99
$17.09
You save $1.90
More details
-10%
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
FRONT REFLECTOR ASSEMBLY
10
Yamaha Motors
FRONT REFLECTOR ASSEMBLY11H-85110-01-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Flange Nut
11
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
RELAY ASSY
12
Yamaha Motors
RELAY ASSY4KM-81950-00
Required: 1
RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
