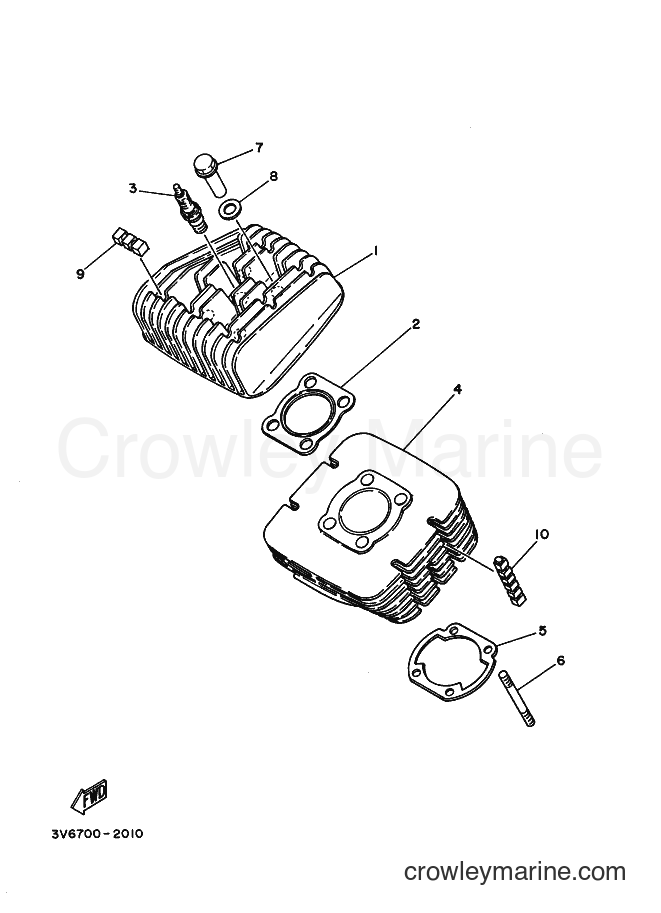

1999 Street Bike AG100F - AG100F (5HS1) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AG100F (5HS1) [010] - CYLINDER
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 13V6-11111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
-10%
CYLINDER HEAD GASKET
2
Yamaha Motors
CYLINDER HEAD GASKET276-11181-01-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 3A3-11181-00-00
Cross Ship
Leaves in 2-5 days
$34.99
$31.49
You save $3.50
More details
CYLINDER 1
4
Yamaha Motors
CYLINDER 13V6-11311-00
Required: 1
CYLINDER 1
Price unavailable
-10%
Stud Bolt
6
Yamaha Motors
Stud Bolt90116-08064-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Nut
7
Yamaha Motors
Nut90179-08303-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plate Washer
8
Yamaha Motors
Plate Washer90201-12362-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
ABSORBER 4
9
Yamaha Motors
ABSORBER 43V6-11128-00
Required: 6
ABSORBER 4
Price unavailable
ABSORBER 1
10
Yamaha Motors
ABSORBER 13V6-11161-00
Required: 4
ABSORBER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
