1999 Street Bike AG100F - AG100F (5HS1) [010] TRANSMISSION diagram

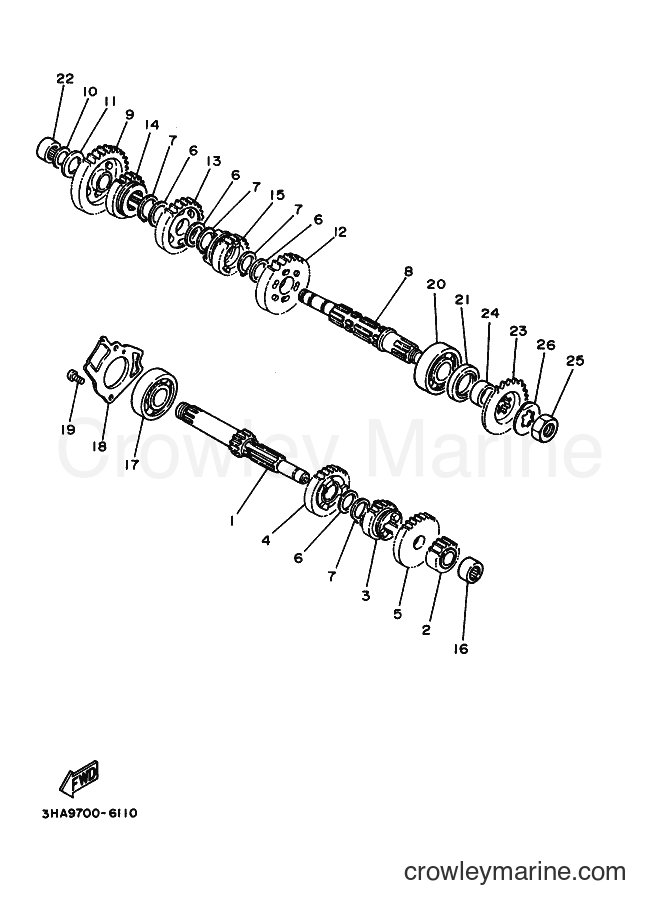

![Yamaha Motors AG100F (5HS1) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/o2FUAr5f.png)
-10%
1
Yamaha Motors
Main Axle437-17411-01-00
Required: 1
AXLE, MAIN (11T)
$103.49
You save $11.50
2
Yamaha Motors
GEAR, 2ND PINION (16T)427-17121-01
Required: 1
GEAR, 2ND PINION (16T)
Price unavailable
3
Yamaha Motors
GEAR, 3RD PINION (20T)3V6-17131-00
Required: 1
GEAR, 3RD PINION (20T)
Price unavailable
4
Yamaha Motors
GEAR, 4TH PINION (24T)482-17141-00
Required: 1
GEAR, 4TH PINION (24T)
Price unavailable
5
Yamaha Motors
GEAR, 5TH PINION (27T)482-17151-00
Required: 1
GEAR, 5TH PINION (27T)
Price unavailable
-10%
6
Yamaha Motors
Plate Washer90201-20266-00
Required: 4
WASHER, PLATE (T=1.0)
$9.44
You save $1.05
-10%
$3.65
You save $0.40
-10%
$138.59
You save $15.40
-10%
9
Yamaha Motors
1st Gear Wheel248-17211-00-00
Required: 1
GEAR, 1ST WHEEL (35T)
No longer availableSearch Nationwide Inventory
$73.79
You save $8.20
-10%
$8.54
You save $0.95
-10%
11
Yamaha Motors
SHIM164-17427-00-10
Required: 1
SHIM 1
Supersedes: 164-17427-00-00
$8.54
You save $0.95
-10%
12
Yamaha Motors
2ND WHEEL GEAR427-17221-00-00
Required: 1
GEAR, 2ND WHEEL (30T)
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
13
Yamaha Motors
GEAR, 3RD WHEEL (25T)3V6-17231-00
Required: 1
GEAR, 3RD WHEEL (25T)
Price unavailable
14
Yamaha Motors
GEAR, 4TH WHEEL (21T)382-17241-60
Required: 1
GEAR, 4TH WHEEL (21T)
Price unavailable
15
Yamaha Motors
GEAR, 5TH WHEEL (18T)482-17251-00
Required: 1
GEAR, 5TH WHEEL (18T)
Price unavailable
-10%
$35.99
You save $4.00
-10%
17
Yamaha Motors
BEARING (4HM)93306-30317-00
Required: 1
BEARING (B6303Z)
Supersedes: 93306-30304-00
$39.59
You save $4.40
-10%
18
Yamaha Motors
Cover Plate1G8-17471-00-00
Required: 1
PLATE, COVER
Supersedes: 403-17471-00-00
No longer availableSearch Nationwide Inventory
$13.04
You save $1.45
-10%
19
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
$3.69
You save $0.41
-10%
20
Yamaha Motors
93306-30421-0093306-30405-00
Required: 1
BEARING (B6304)
Supersedes: 93306-30401-00
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
-10%
$5.84
You save $0.65
-10%
22
Yamaha Motors
BEARING,CYL.(2TV)93311-31567-00
Required: 1
BEARING
Supersedes: 93311-31515-00
$59.39
You save $6.60
23
Yamaha Motors
SPROCKET,DRIVE (14T)93822-14039
Required: 1
SPROCKET,DRIVE (14T)
Price unavailable
-10%
$15.74
You save $1.75
-10%
$14.84
You save $1.65
26
Yamaha Motors
WASHER, LOCK382-17464-60
Required: 1
WASHER, LOCK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
