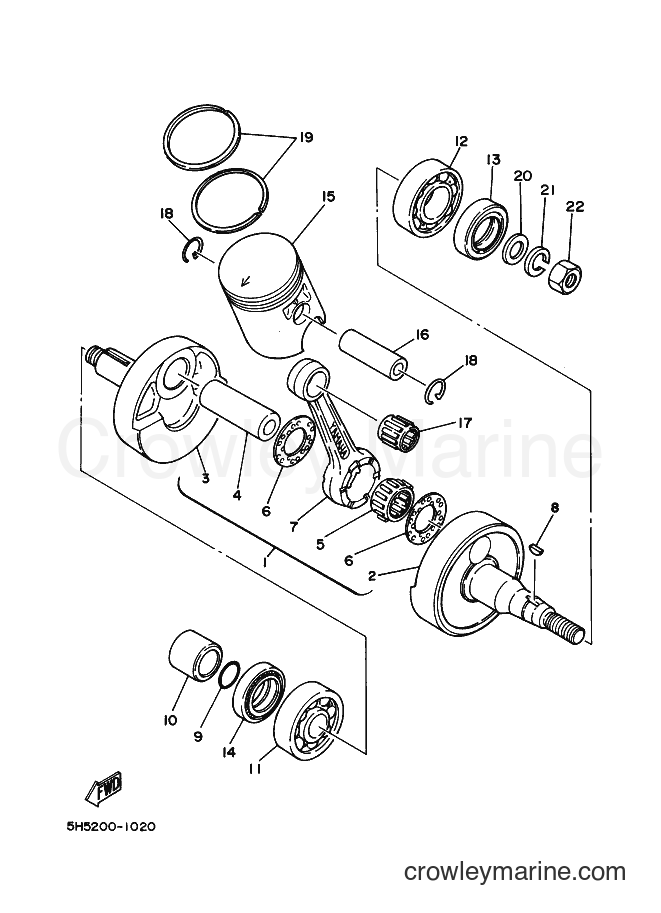

1999 Street Bike RX115 - RX115 (5FS2) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RX115 (5FS2) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY4X8-11400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
. CRANK 2
3
Yamaha Motors
. CRANK 2452-11422-00
Required: 1
. CRANK 2
Price unavailable
-10%
CRANK PIN 1
4
Yamaha Motors
CRANK PIN 13M5-11681-00-00
Required: 1
. PIN, CRANK 1
Cross Ship
Leaves in 2-5 days
$26.99
$24.29
You save $2.70
More details
-10%
BEARING,CYL.#10
5
Yamaha Motors
BEARING,CYL.#1093310-422L0-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$60.99
$54.89
You save $6.10
More details
-10%
Special Shape Washer
6
Yamaha Motors
Special Shape Washer90209-22071-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$13.49
$12.14
You save $1.35
More details
ROD, CONNECTING
7
Yamaha Motors
ROD, CONNECTING4X8-11651-00
Required: 1
ROD, CONNECTING
Price unavailable
-10%
Woodruff Key
8
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
O-Ring
9
Yamaha Motors
O-Ring93210-180A6-00
Required: 1
O-RING
Supersedes: 93210-18023-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
COLLAR
10
Yamaha Motors
COLLAR90387-205E9-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
Bearing (B6205C4)
12
Yamaha Motors
Bearing (B6205C4)93306-20529-00
Required: 1
BEARING (B6205)
Supersedes: 93306-20517-00
Cross Ship
Leaves in 2-5 days
$44.99
$40.49
You save $4.50
More details
-10%
SD-TYPE OIL SEAL
13
Yamaha Motors
SD-TYPE OIL SEAL93102-25061-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
-10%
SW-TYPE OIL SEAL
14
Yamaha Motors
SW-TYPE OIL SEAL93103-28011-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
PISTON (0.50MM O/S)
15
Yamaha Motors
PISTON (0.50MM O/S)4X8-11636-01
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON (0.75MM O/S)
15
Yamaha Motors
PISTON (0.75MM O/S)4X8-11637-01
Required: 1
PISTON (0.75MM O/S)
Price unavailable
PISTON (1.00MM O/S)
15
Yamaha Motors
PISTON (1.00MM O/S)4X8-11638-01
Required: 1
PISTON (1.00MM O/S)
Price unavailable
PISTON (0.25MM O/S)
15
Yamaha Motors
PISTON (0.25MM O/S)4X8-11635-01
Required: 1
PISTON (0.25MM O/S)
Price unavailable
PISTON (STD)
15
Yamaha Motors
PISTON (STD)4X8-11631-01-97
Required: 1
PISTON (STD)
Price unavailable
-10%
Piston Pin
16
Yamaha Motors
Piston Pin634-11633-00-00
Required: 1
PIN, PISTON
Supersedes: 4X8-11633-00-00
Cross Ship
Leaves in 2-5 days
$12.60
$11.34
You save $1.26
More details
BEARING
17
Yamaha Motors
BEARING93310-214H9
Required: 1
BEARING
Price unavailable
PISTON RING SET (0.50MM O/S)
19
Yamaha Motors
PISTON RING SET (0.50MM O/S)4X8-11601-20
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
PISTON RING SET (0.75MM O/S)
19
Yamaha Motors
PISTON RING SET (0.75MM O/S)4X8-11601-30
Required: 1
PISTON RING SET (0.75MM O/S)
Price unavailable
PISTON RING SET (0.25MM O/S)
19
Yamaha Motors
PISTON RING SET (0.25MM O/S)4X8-11601-10
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
PISTON RING SET (STD)
19
Yamaha Motors
PISTON RING SET (STD)4X8-11601-00
Required: 1
PISTON RING SET (STD)
Price unavailable
PISTON RING SET (1.00MM O/S)
19
Yamaha Motors
PISTON RING SET (1.00MM O/S)4X8-11601-40
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
-10%
Plate Washer
20
Yamaha Motors
Plate Washer90201-12535-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12178-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
WASHER
21
Yamaha Motors
WASHER92907-12100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Hexagon Nut
22
Yamaha Motors
Hexagon Nut90170-12347-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
