1999 Street Bike RX115 - RX115 (5FS2) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

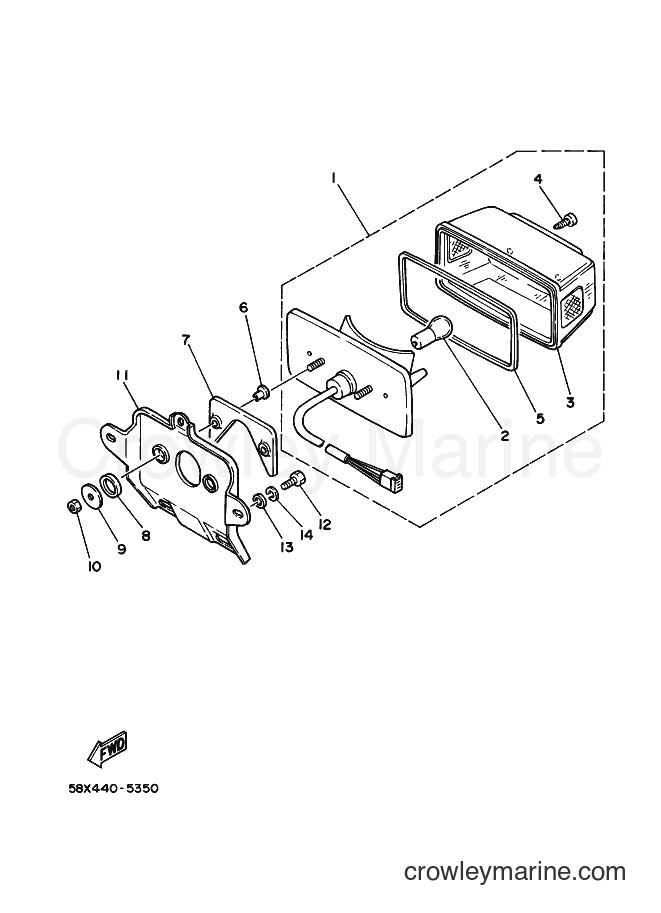

Yamaha Motors RX115 (5FS2) [010] - TAILLIGHT
Change View:
TAILLIGHT UNIT ASSY
1
Yamaha Motors
TAILLIGHT UNIT ASSY4X8-84510-00
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
. LENS, TAILLIGHT
3
Yamaha Motors
. LENS, TAILLIGHT3M5-84521-00
Required: 1
. LENS, TAILLIGHT
Price unavailable
. SCREW, PANHEAD TAPPING
4
Yamaha Motors
. SCREW, PANHEAD TAPPING97701-40520
Required: 2
. SCREW, PANHEAD TAPPING
Price unavailable
. GASKET, LENS
5
Yamaha Motors
. GASKET, LENS3M5-84523-00
Required: 1
. GASKET, LENS
Price unavailable
COLLAR
6
Yamaha Motors
COLLAR3V2-84557-00
Required: 2
COLLAR
Price unavailable
SEAT, BASE
7
Yamaha Motors
SEAT, BASE3V2-84542-00
Required: 1
SEAT, BASE
Price unavailable
DAMPER
8
Yamaha Motors
DAMPER3V2-84553-00
Required: 2
DAMPER
Price unavailable
WASHER, SPECIAL
9
Yamaha Motors
WASHER, SPECIAL4X8-84554-00
Required: 2
WASHER, SPECIAL
Price unavailable
-10%
Nut
10
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
BRACKET, LICENCE
11
Yamaha Motors
BRACKET, LICENCE37L-84551-00
Required: 1
BRACKET, LICENCE
Price unavailable
-10%
Hexagon Bolt
12
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 3
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Washer
13
Yamaha Motors
Washer92907-06200-00
Required: 3
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
